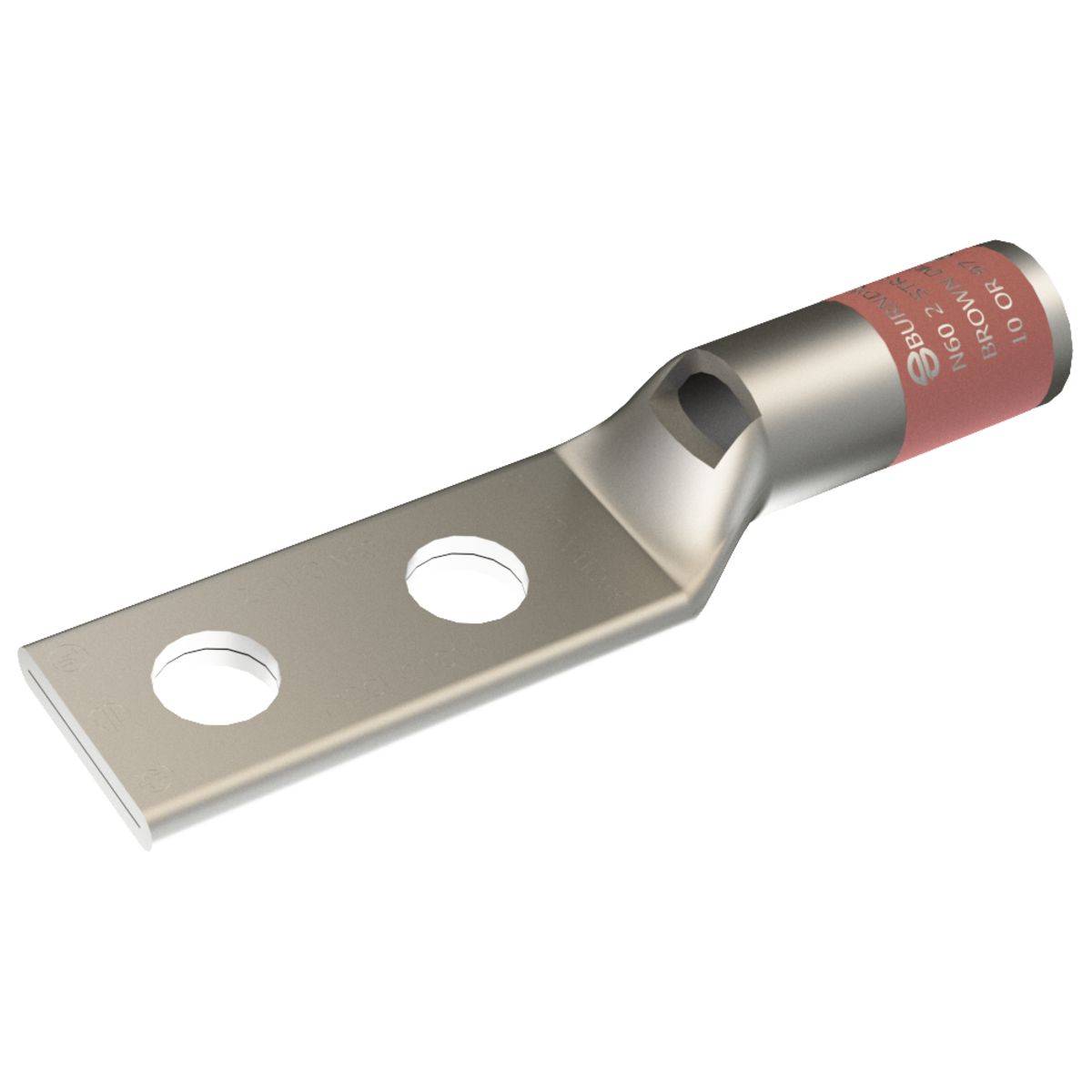

Burndy® YA2CL2TC38 HYLUG™ YA-L-2TC 2-Hole Compression Lug With Inspection Window, 2 AWG Stranded Copper Conductor, 3/8 in Stud
Lug Compression Connectors
85509
MFG #: YA2CL2TC38
BURNDY®
6.75000
/ ea
- Brochure URL - 10969_RCTN0O6WJGDXLQFM.pdf(Brochure URL)
- Brochure URL - BURNDY_YA2CL2TC38_Specsheet.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_83665bafcba19eed2d6263ab5da71749ca1d8fe3808e93627d8e246c88e02c10.pdf(Catalog URL)
- http://www.burndy.com(Seller Home Page URL)
- http://www.burndy.com/(Seller Home Page URL)
- Install Instructions 1 URL - 10969_RE0TL53U196VKGYW.pdf(Install Instructions 1 URL)
- Install Instructions 1 URL - Copper_Code_Standard_Barrel_Terminal_Tooling_Instructions.pdf(Install Instructions 1 URL)
- Line Drawing URL(Line Drawing URL)
- Line Drawing URL - 10969_ID-DRW-v1-SD_035209-05.pdf(Line Drawing URL)
- Spec Sheet URL - 10969_ZTDLFYNG4Q2O8KAJ.pdf(Spec Sheet URL)
- Spec Sheet URL - YA2CL2TC38.pdf(Spec Sheet URL)
- Tech Drawing URL - 10969_ID-DRW-v1-SD_035209-05.pdf(Tech Drawing URL)
- Tech Drawing URL - SD..035209-05.pdf(Tech Drawing URL)
- Tech Drawing URL - ID-DRW-v1-SD_035209-05.pdf(Tech Drawing URL)
- Applications
- Features
| Wire Termination |
| Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Die Index: 10, Tongue Angle: Straight, Temperature Rating: 90 DEG C, Wire Strip Length: 15/16 IN, Finish: Electro-Tin Plated, Color Code: Brown, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W2CVT, W2CRT, X2CRT Die, (1), Hydraulic: BCT500HS, Y500CTHS Tool, W2CVT, W2CRT, X2CRT Die, (1), Y35, Y39, Y750, PAT750 Tool, U2CRT Die, (1), Y46 Tool, U2CRT Die With PUADP-1 Adapter, (1), Dieless Tools (number Of Crimps): Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-3, MY29-11, MRC840 Tool, (1), Y1MRTC Tool, (2), Conductor Type: Commercial Stranded Copper |
| Die set catalog number and (number of crimps): mechanical: MD6, OUR840, MD7-34R tool, W2CVT, W2CRT, X2CRT die, (1), hydraulic: BCT500HS, Y500CTHS tool, W2CVT, W2CRT, X2CRT die, (1), Y35, Y39, Y750, PAT750 tool, U2CRT die, (1), Y46 tool, U2CRT die with PUADP-1 adapter, (1), dieless tools (number of crimps): Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-3, MY29-11, MRC840 tool, (1), Y1MRTC tool, (2), conductor type: commercial stranded copper |
