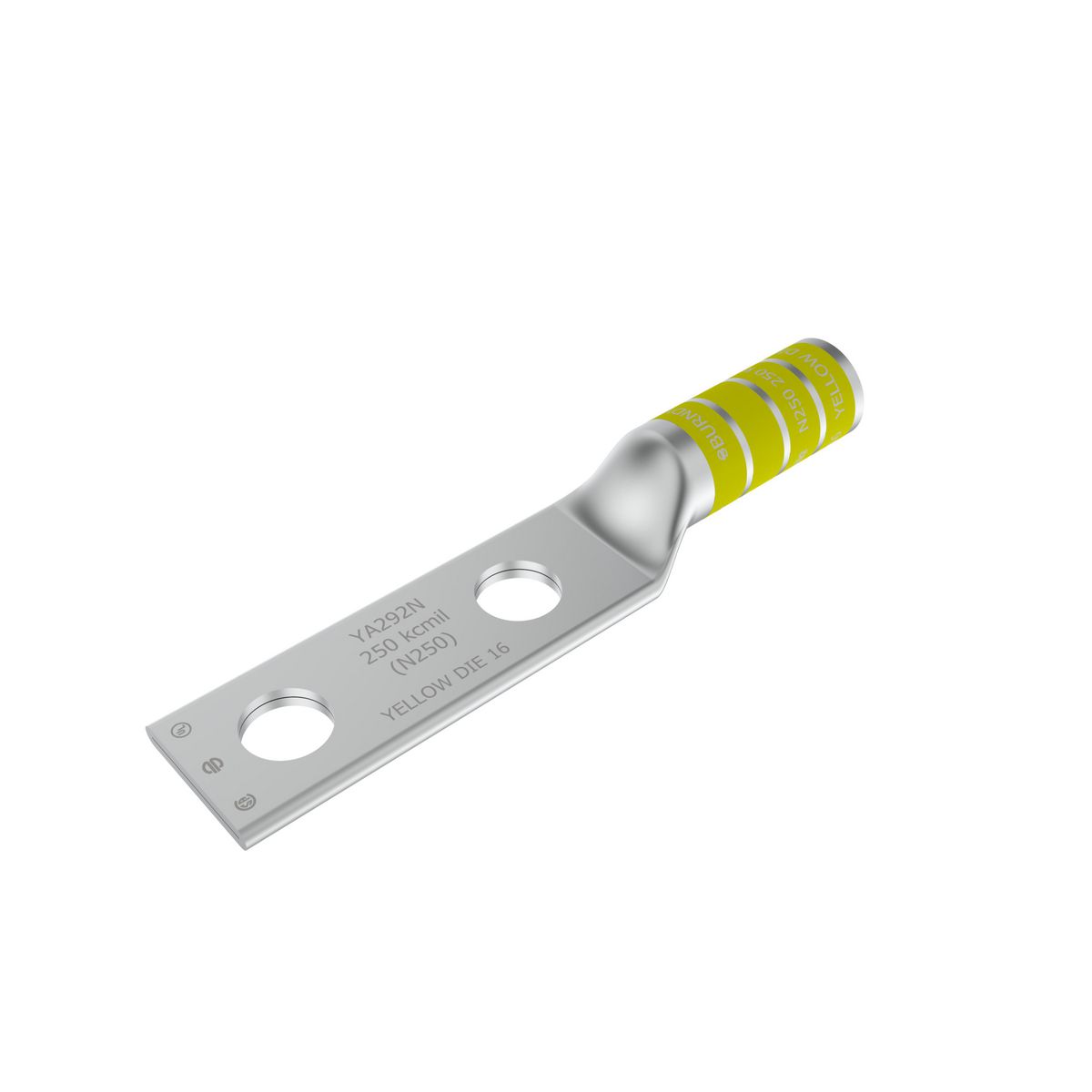

Burndy® YA292N HYLUG™ 2-Hole Compression Lug, 250 kcmil, Die Code 16, 1/2 in Stud, Copper
Lug Compression Connectors
19531
MFG #: YA292N
BURNDY®
10.93000
/ ea
- Brochure URL - 10969_WYL6UOJEZ75MHQT8.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_4404689ad9e162b8c3bbef62d42bdc6d39896a4746904b61f1583cf2387830ac.pdf(Catalog URL)
- http://www.burndy.com(Seller Home Page URL)
- Install Instructions 1 URL - 10969_M6IT3GNVDBYQ1JEX.pdf(Install Instructions 1 URL)
- Spec Sheet 1 URL - BURNDY_YA292N_Datasheet.pdf(Spec Sheet 1 URL)
- Spec Sheet URL - 10969_ASRIY6759T3XHPL8.pdf(Spec Sheet URL)
- Tech Drawing URL - 10969_49E3N67JRQHVTOMA.pdf(Tech Drawing URL)
- Video - https://www.youtube.com/embed/pIuf8pkcL2Y(Video)
- Applications
- Features
| Wire Termination |
| Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Wire Strip Length: 1-11/16 IN, Temperature Rating: 90 DEG C, Tongue Angle: Straight, Finish: Electro-Tin Plated, Color Code: Yellow, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W29VT Die, (4), X29RT Die, (8), Hydraulic: BCT500HS, Y500CTHS Tool, W29VT, W29RT Die, (4), X29RT Die, (8), Y35, Y39, Y750, PAT750 Tool, U29RT Die, (2), Y46 Tool, U29RT Die With PUADP-1 Adapter, (2), Die Index: 16, Dieless Tools (number Of Crimps): Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-3, MY29-11 Tool, (2) |
| Electro-tin plated |
| 1-11/16 in L strip |
| 0.52 in bolt hole |
| Straight tongue angle |
| 0.16 in thickness |
| Without inspection window |
| Stud Hole Spacing: 1-3/4 in |
