Burndy® UDIEKITAL Style U Die Kit Set, 15 Pieces, For Use With: AL Connector, Stainless Steel
Crimping Tool Die Sets
787323
MFG #: UDIEKITAL
BURNDY®
2026.28000
/ ea
- Brochure URL - 10969_ID-SPE-v1-UDIEKITAL.pdf(Brochure URL)
- Brochure URL - BURNDY_UDIEKITAL_Specsheet.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_2be3c86862b3a7ff8e0c908e297f2ff5d9456ce2a7c8ef0997ea4339c9159175.pdf(Catalog URL)
- http://www.burndy.com(Seller Home Page URL)
- http://www.burndy.com/(Seller Home Page URL)
- Line Drawing URL(Line Drawing URL)
- Spec Sheet URL - 10969_94Q7S58MDG1WJREZ.pdf(Spec Sheet URL)
- Spec Sheet URL - UDIEKITAL.pdf(Spec Sheet URL)
- Tech Drawing URL - 10969_1OW7I869VU4F3JYG.pdf(Tech Drawing URL)
- Tech Drawing URL - 30022159.pdf(Tech Drawing URL)
- Applications
- Features
| Crimping |

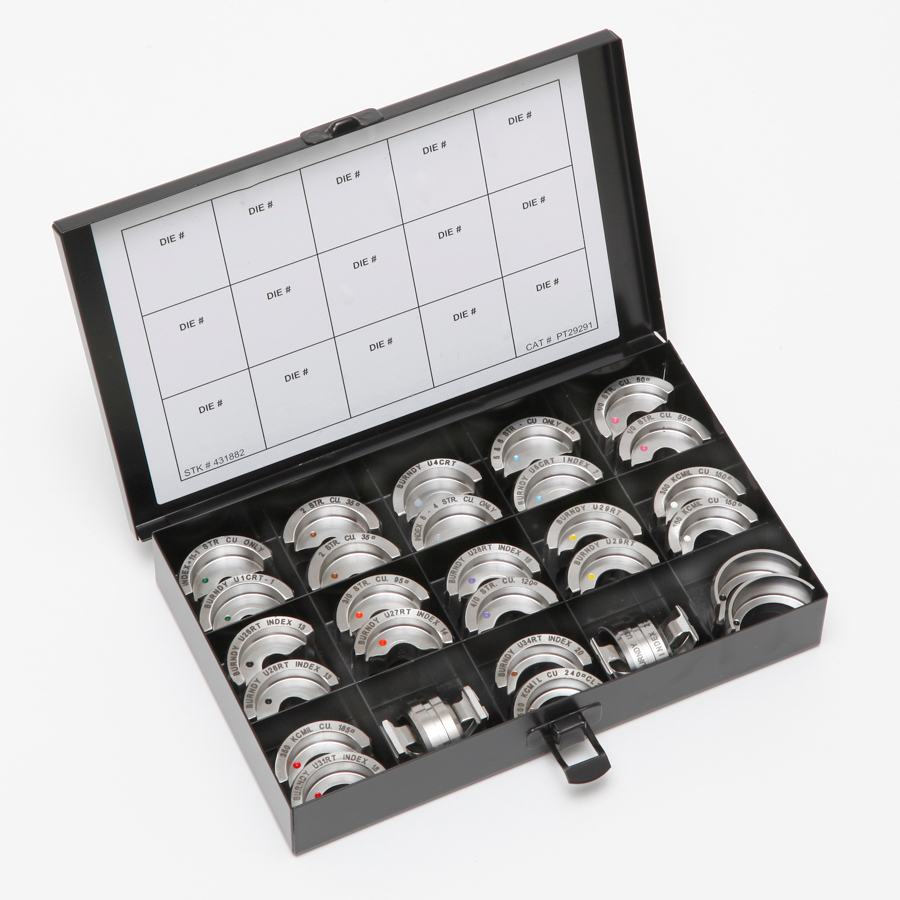

| Features: The UDIEKITAL Die Kit Includes 15 Sets Of U Dies And The PT29291 Die Case, These Stainless Steel Color Coded Dies Are For Crimping BURNDY YA, YS, YA-A And YS-A Type HYLUG And HYLINK Color Coded Terminals And Splices Ranging From 6 AWG Through 750 KCMIL, BURNDY U Dies Are Used In The Y35, Y39, Y750 Series, PAT750-18V Series, Y46, And PAT46-18V (With PUADP-1 Adapter) Tools, Includes: U6CABT: 6 AWG Aluminum Wire, U4CABT: 4 AWG Aluminum Wire, U2CABT: 2 AWG Aluminum Wire, U1CART: 1 AWG Aluminum Wire, U25ART: 1/0 AWG Aluminum Wire, U26ART: 2/0 AWG Aluminum Wire, U27ART: 3/0 AWG Aluminum Wire, U28ART: 4/0 AWG Aluminum Wire, U29ART: 250 KCMIL Aluminum Wire, U30ART: 300 KCMIL Aluminum Wire, U31ART: 350 KCMIL Aluminum Wire, U32ART: 400 KCMIL Aluminum Wire, U34ART: 500 KCMIL Aluminum Wire, U36ART: 600 KCMIL Aluminum Wire, U39ART2: 750 KCMIL Aluminum Wire, PT29291 Die Case |
| These stainless steel color coded dies are for crimping Burndy YA, YS, YA-A and YS-A type HYLUG and HYLINK color coded terminals and splices ranging from 6 AWG through 750 kcmil |
| Used in Y35, Y39, Y750 series, PAT750-18V series, Y46 and PAT46-18V (with PUADP-1 adapter) tools |
| T-Tap radial butting twin |
