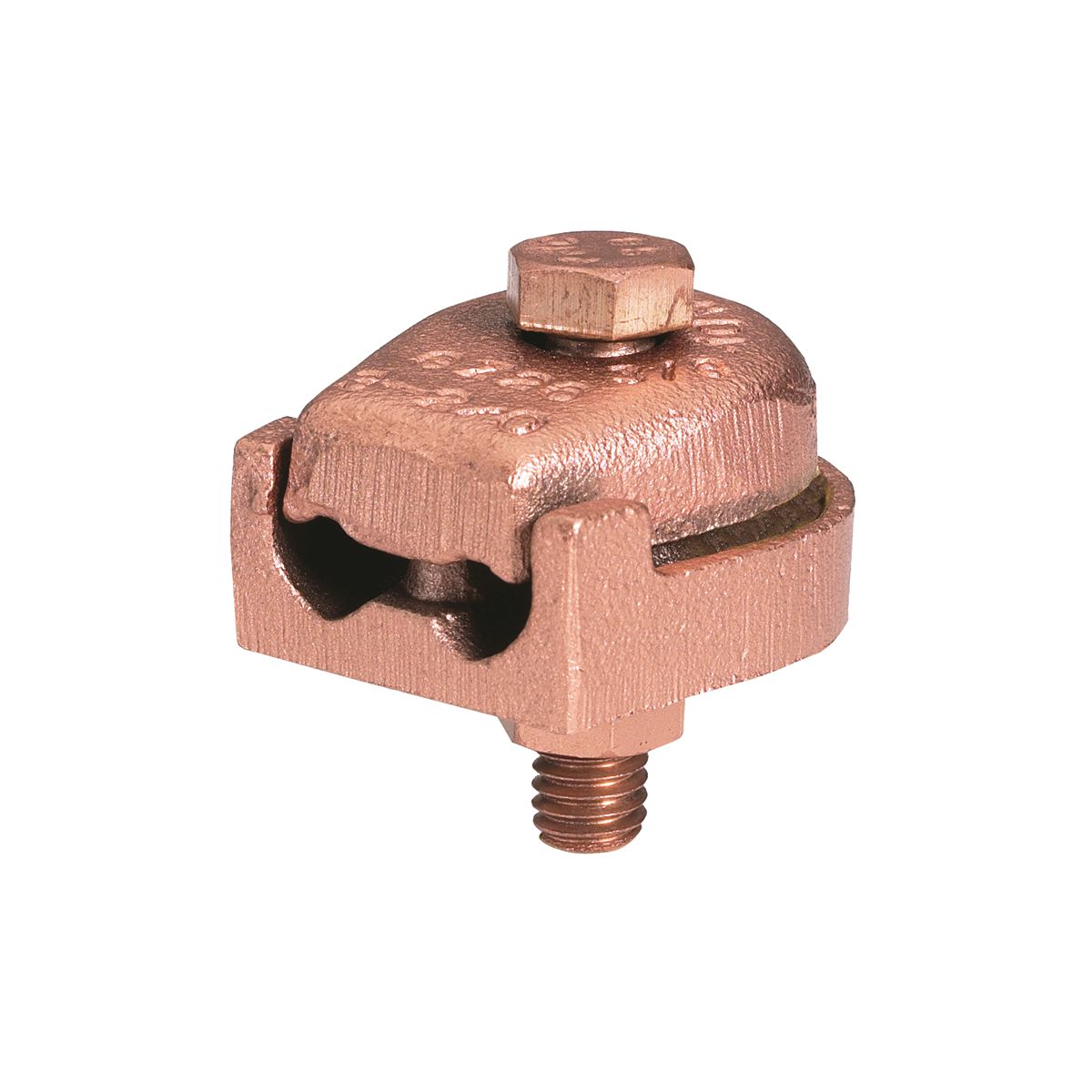

Burndy® GZ4C38 GZ Series Mechanical Grounding Connector, 8 to 4 AWG Conductor, 1/4 in THK Bar, Copper
Grounding-Bonding Clamps
366740
MFG #: GZ4C38
BURNDY®
114.93000
/ ea
- Brochure URL - 10969_ID-SPE-v1-GZ4C38.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_76763245de16bea0fd648409603d6897cc4c728058797bf93a2b746b6564afb9.pdf(Catalog URL)
- http://www.burndy.com(Seller Home Page URL)
- http://www.burndy.com/(Seller Home Page URL)
- Line Drawing URL(Line Drawing URL)
- Spec Sheet URL - 10969_G31C6O9FP7XI0B2T.pdf(Spec Sheet URL)
- Spec Sheet URL - GZ4C38.pdf(Spec Sheet URL)
- Tech Drawing URL - 10969_ID-DRW-v1-sd208785-01.pdf(Tech Drawing URL)
- Tech Drawing URL - sd208785-01.pdf(Tech Drawing URL)
- Applications
- Features
| For Joining A Wide Range Of Copper Cable To Bar, Direct Burial In Concrete Or Ground |
| Features: High Copper Alloy Ground Connector For Joining A Wide Range Of Cable To 1/4 IN Thick Bar, Cable Is Gripped By Curving It Around The Clamping Bolt In Connector Groove, UL467 Listed, The High Copper Alloy Cast Body And DURIUM Bolts, Nuts, And Lockwashers Make Them Suitable For Direct Burial In Concrete Or Ground, Installation Torque: 240 IN-LB, Width: 1-1/8 IN, Height: 1-1/2 IN, Bar Thickness: 1/4 IN |
| High copper alloy ground connector for joining a wide range of cable to 1/4 in THK bar |
| Cable is gripped by curving it around the clamping bolt-in connector groove |
| The high copper alloy cast body and Durium bolts, nuts and lock washers make them suitable for direct burial in concrete or ground |
| 240 in-lb installation torque |
| 3-gang/8 in bolt size |
| 8 to 4 AWG stranded (main/primary) conductor size |
| Made of high strength copper alloy |
