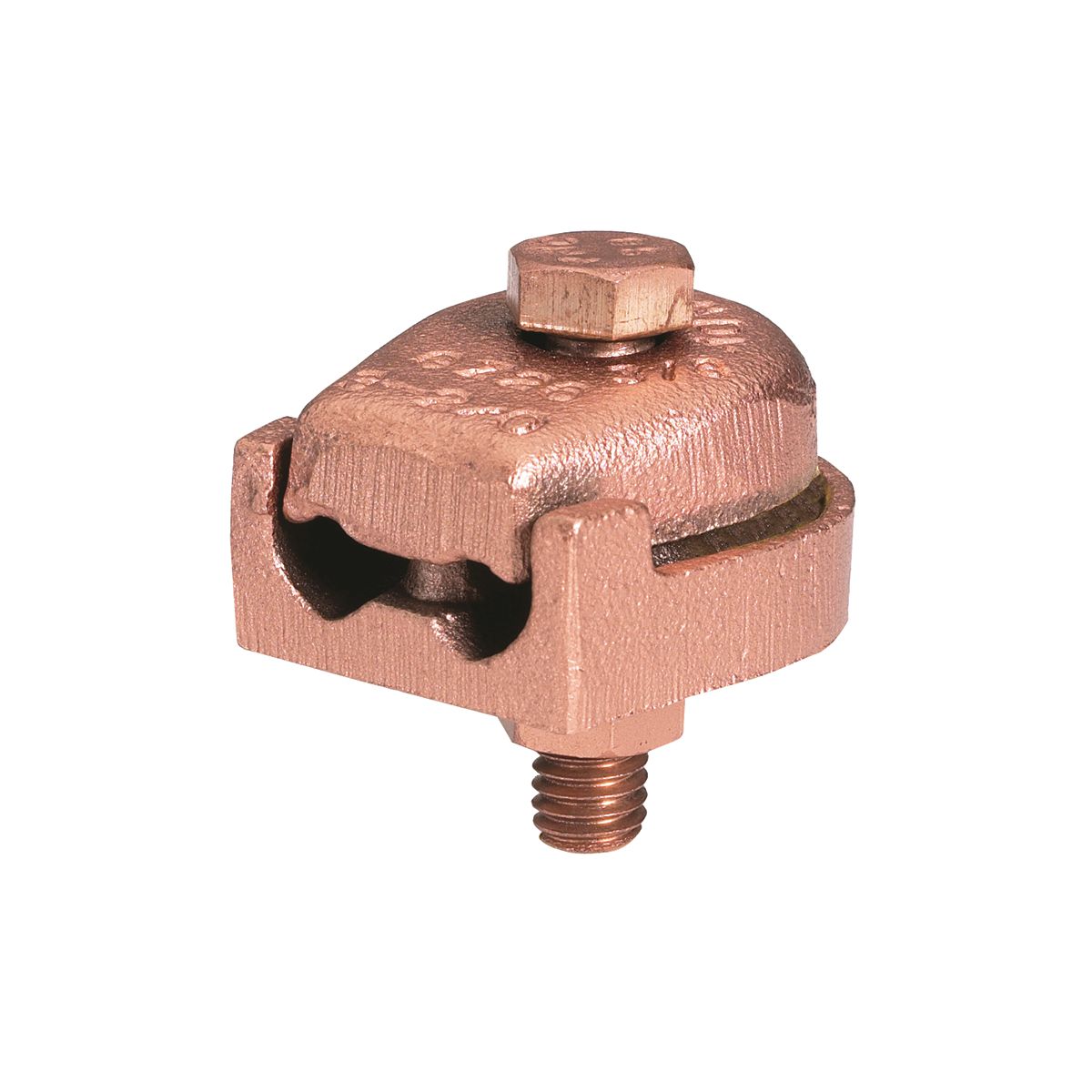

Burndy® GZ2658 3STR - 2/0 STR, CU COND
Grounding-Bonding Clamps
366723
MFG #: GZ2658
BURNDY®
172.25000
/ ea
HIGH COPPER ALLOY CAST BODY, DURIUM BOLT/ NUT/ LOCKWASHER; 3 TO 2/0 AWG STRANDED CONDUCTOR; BOLT SIZE 5/8 INCH; 1/4 INCH BAR THICKNESS; HEIGHT 2-1/4 INCH; APPROVAL UL 467; USED ON (1) CABLE TO BAR, DIRECT BURIAL; GZ MODEL
- http://www.burndy.com(Seller Home Page URL)
- http://www.burndy.com/(Seller Home Page URL)
- Line Drawing URL(Line Drawing URL)
- Spec Sheet URL - 10969_HO1DISV7G4BPZUQF.pdf(Spec Sheet URL)
- Spec Sheet URL - 10969_JZ9IK8TVQSOU4137.pdf(Spec Sheet URL)
- Spec Sheet URL - GZ2658(Spec Sheet URL)
- Tech Drawing URL - 10969_ID-DRW-v1-sd208785-01.pdf(Tech Drawing URL)
- Tech Drawing URL - sd208785-01.pdf(Tech Drawing URL)
- Applications
- Features
| For Joining A Wide Range Of Copper Cable To Bar, Direct Burial In Concrete Or Ground |
| High Copper Alloy Ground Connector For Joining A Wide Range Of Cable To 1/4 IN Thick Bar, Cable Is Gripped By Curving It Around The Clamping Bolt In Connector Groove, UL467 Listed, The High Copper Alloy Cast Body And DURIUM Bolts, Nuts, And Lockwashers Make Them Suitable For Direct Burial In Concrete Or Ground, Width: 1-3/4 IN, Installation Torque: 660 IN-LB, Bar Thickness: 1/4 IN, Height: 2-1/4 IN |
