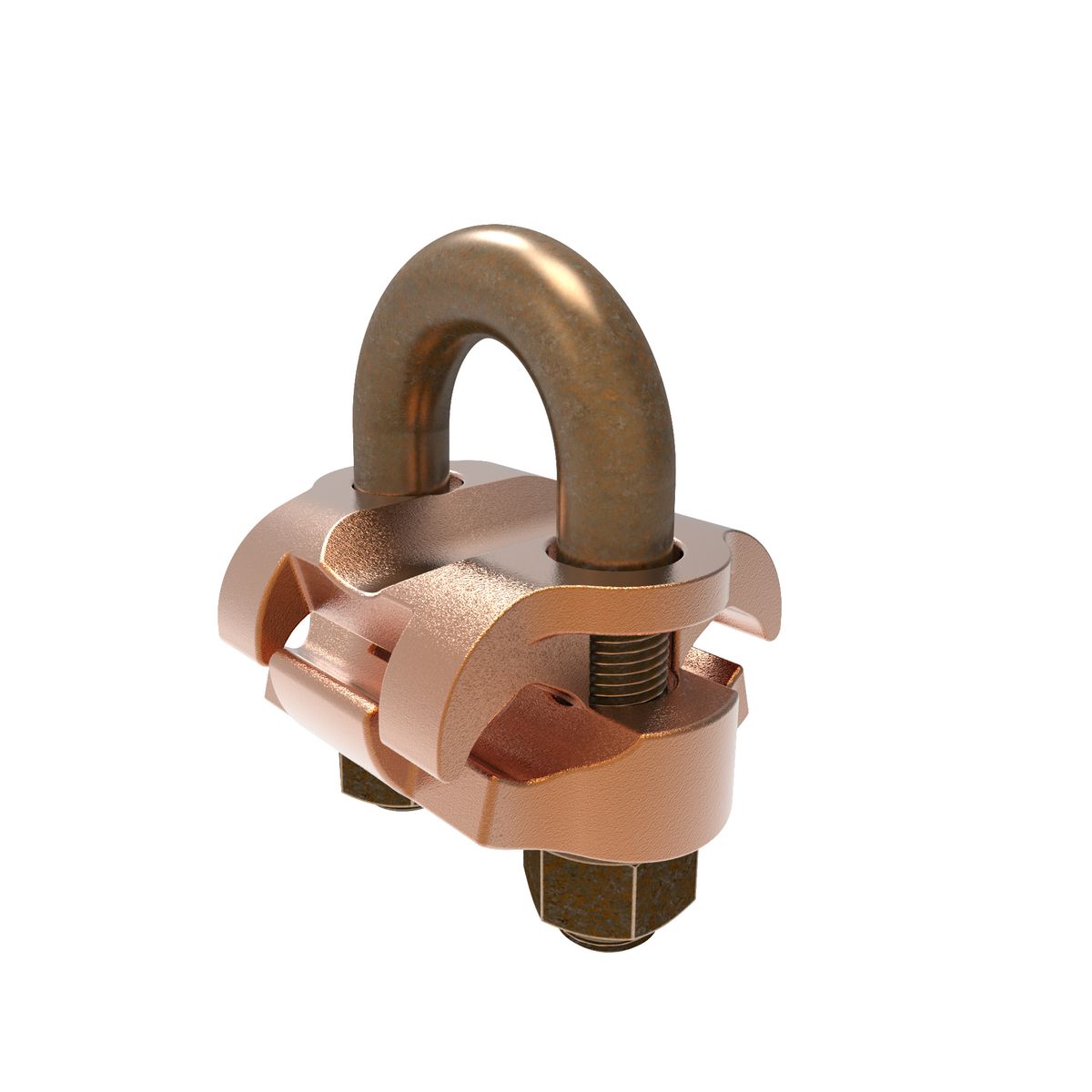

Burndy® GP6429 Mechanical Grounding Connector, 5/8 to 3/4 in Rod, 2/0 AWG to 250 kcmil Conductor, Copper
Grounding-Bonding Clamps
19480
MFG #: GP6429
BURNDY®
47.87000
/ ea
All BURNDY® mechanical grounding connectors have been designed for easy installation and for outstanding durability. Only the finest high copper alloys are used in their manufacture, ensuring top performance under the most extreme environmental conditions. UL467 Listed for direct burial applications in earth or concrete.
- Brochure URL - 10969_ZW29TFMJVQIR4UKL.pdf(Brochure URL)
- Brochure URL - BURNDY_GP6429_Specsheet.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_b7b7d0e192b347c8cf553899324f8741a184baf308e15e7f5bba5a96d20f1f77.pdf(Catalog URL)
- http://www.burndy.com(Seller Home Page URL)
- http://www.burndy.com/(Seller Home Page URL)
- Line Drawing URL(Line Drawing URL)
- Line Drawing URL - 10969_ID-DRW-v1-sd013778.pdf(Line Drawing URL)
- Spec Sheet URL - 10969_LV4DYTJ10IGO3NAK.pdf(Spec Sheet URL)
- Spec Sheet URL - BRDY-GP6429-SPEC-EN.pdf(Spec Sheet URL)
- Spec Sheet URL - GP6429.pdf(Spec Sheet URL)
- Tech Drawing URL - 10969_ID-DRW-v1-sd013778.pdf(Tech Drawing URL)
- Tech Drawing URL - ID-DRW-v1-sd013778.pdf(Tech Drawing URL)
- Tech Drawing URL - SD..013778-01.pdf(Tech Drawing URL)
- Applications
- Features
| For Joining A Range Of Parallel Copper Cables Perpendicular To Rod, Pipe Or Column, Direct Burial In Earth Or Concrete |
| Features: High Copper Alloy Ground Connector For Joining A Range Of Parallel Cables Perpendicular To Rod, Pipe Or Column, Also Used With One Groove For Run, The Other For Tap To Equipment, High Copper Alloy Cast Body And DURIUM U-Bolts, Nuts, And Lockwashers Make The GP Suitable For Direct Burial In The Ground Or Concrete, One-Wrench Installation, UL467 Listed, Acceptable For Direct Burial In Earth Or Concrete, Ground Rod Size: 5/8 - 3/4 IN, Tube (ips) Size: 3/8 IN, Height: 2-7/8 IN, Installation Torque: 240 IN-LB, Width: 2-1/8 IN |
| High copper alloy ground connector for joining a range of parallel cables perpendicular to rod, pipe or column |
| Also used with one groove for run, the other for tap to equipment |
| High copper alloy cast body and durium U-bolts, nuts, and lock washers make the GP suitable for direct burial in the ground or concrete |
| Acceptable for direct burial in earth or concrete |
| 240 in-lb installation torque |
| 3/8 in bolt |
| 2/0 - 4/0 AWG solid - 1/0 - 250 kcmil (main/primary) conductor range |
| 3/8 in IPS pipe |
| Made of High Copper Alloy |
