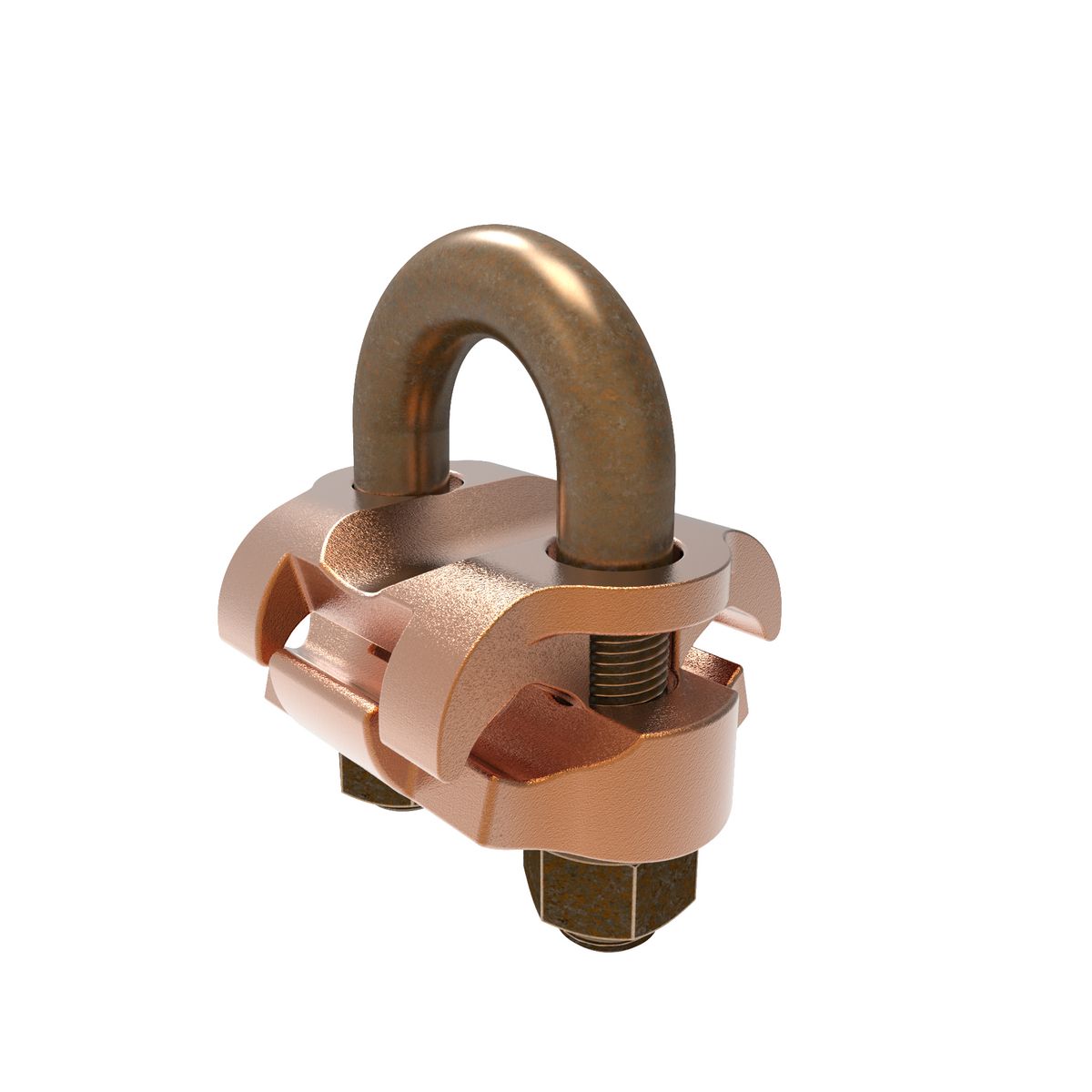

Burndy® GP6426 GP Series Mechanical Grounding Connector, 5/8 to 3/4 in Rod, 4 to 2/0 AWG Conductor, Copper
Grounding-Bonding Clamps
182735
MFG #: GP6426
BURNDY®
158.76000
/ ea
- Brochure URL - 10969_WCA0PGBFLIVDQYX7.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_89f2ba0a60bb45a70be0deb17d9191eb54604146cadb7a3fefbd50f696eaa36f.pdf(Catalog URL)
- http://www.burndy.com(Seller Home Page URL)
- Spec Sheet URL - 10969_73TKBCHV9SEYZIO8.pdf(Spec Sheet URL)
- Tech Drawing URL - 10969_ID-DRW-v1-sd013778.pdf(Tech Drawing URL)
- Applications
- Features
| For Joining A Range Of Parallel Copper Cables Perpendicular To Rod, Pipe Or Column, Direct Burial In Earth Or Concrete |
| Features: High Copper Alloy Ground Connector For Joining A Range Of Parallel Cables Perpendicular To Rod, Pipe Or Column, Also Used With One Groove For Run, The Other For Tap To Equipment, High Copper Alloy Cast Body And DURIUM U-Bolts, Nuts, And Lockwashers Make The GP Suitable For Direct Burial In The Ground Or Concrete, One-Wrench Installation, UL467 Listed, Acceptable For Direct Burial In Earth Or Concrete, Ground Rod Size: 5/8 - 3/4 IN, Tube (ips) Size: 3/8 IN, Width: 2-1/8 IN, Installation Torque: 240 IN-LB, Height: 2-1/2 IN |
| High copper alloy ground connector for joining a range of parallel cables perpendicular to rod, pipe or column |
| Also used with one groove for run, the other for tap to equipment |
| High copper alloy cast body and durium U-bolts, nuts, and lock washers make the GP suitable for direct burial in the ground or concrete |
| Acceptable for direct burial in earth or concrete |
| 240 in-lb installation torque |
| 3/8 in bolt |
| 4 - 3/0 AWG solid - 5 - 2/0 AWG stranded (main/primary) conductor range |
| 3/8 in IPS pipe |
| Made of High Copper Alloy |
