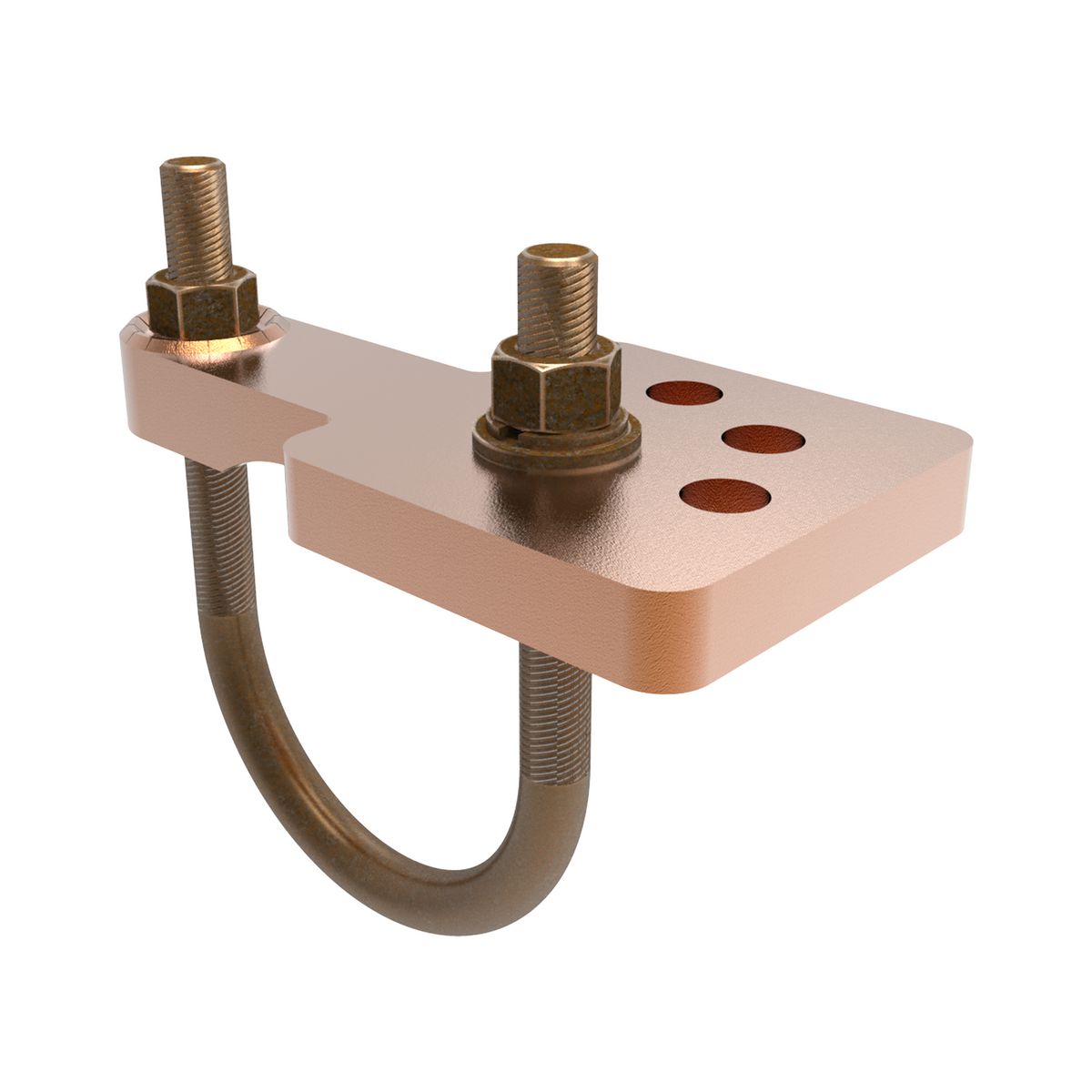

Burndy® GAR3904TC GAR-TC Mechanical Grounding Connector, 2-1/2 to 3-1/2 in Rod, Copper
Grounding-Bonding Clamps
275844
MFG #: GAR3904TC
BURNDY®
106.11000
/ ea
All BURNDY® mechanical grounding connectors have been designed for easy installation and for outstanding durability. Only the finest high copper alloys are used in their manufacture, ensuring top performance under the most extreme environmental conditions. UL467 Listed for direct burial applications in earth or concrete.
- Brochure URL - 10969_ID-SPE-v1-GAR3904TC.pdf(Brochure URL)
- Brochure URL - BURNDY_GAR3904TC_Specsheet.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_a5d449925a587ea56c190e794355f16dba0dfdd0d7ad24af3304f13806d40f1c.pdf(Catalog URL)
- http://www.burndy.com(Seller Home Page URL)
- http://www.burndy.com/(Seller Home Page URL)
- Line Drawing URL(Line Drawing URL)
- Line Drawing URL - 10969_ID-DRW-v1-se_206158-01.pdf(Line Drawing URL)
- Spec Sheet URL - 10969_JCBASURI9O82GYX6.pdf(Spec Sheet URL)
- Spec Sheet URL - BRDY-GAR3904TC-SPEC-EN.pdf(Spec Sheet URL)
- Spec Sheet URL - GAR3904TC.pdf(Spec Sheet URL)
- Spec Sheet URL - ID-SPE-v1-GAR3904TC.pdf(Spec Sheet URL)
- Tech Drawing URL - 10969_ID-DRW-v1-se_206158-01.pdf(Tech Drawing URL)
- Tech Drawing URL - ID-DRW-v1-se_206158-01.pdf(Tech Drawing URL)
- Tech Drawing URL - se..206158-01.pdf(Tech Drawing URL)
- Applications
- Features
| For Direct Burial, Water Pipe As Well As Structural And Reinforcing Rod Shapes |
| Features: Type GAR-TC Is A High-Conductivity Copper Ground Connector That Features A Pre-Drilled Pad, Allowing A 2-Hole Compression Terminal To Be Directly Connected To Water Pipe As Well As Structural And Reinforcing Rod Shapes, Large, Smooth Connector Contact Area Between Pipe And Ground Clamp, Provides Large Surface Contact Area To Maximize Contact Area Between Connector And Pipe, The GAR-TC Mounting Pad Permits Parallel, 45 DEG Or 90 DEG Angle Connections To The Pipe, Provides Maximum Flexibility For Field Installation, Pre-Drilled Pad For (2) 3/8 IN Bolts On 1 IN Centers, Allows Direct Mounting Of (2) Hole Compression Terminals Up To 750 KCMIL To Pipe, DURIUM Silicon Bronze Hardware, Provide Long Lasting Corrosion Resistance Acceptable For Direct Burial In Earth Or Concrete, One-Wrench Installation, Simplified Installation, UL467 Listed, Provides Quality Assurance To Recognized Industry NEC Standards From An Independent Party, Type GAR-TC Is Acceptable For Direct Burial, Tube (ips) Size: 2-1/2 - 3-1/2 IN, Ground Rod Size: 2.88 - 4 IN, Installation Torque: 240 IN-LB, Width: 6.5 IN, Height: 6.5 IN |
| Type GAR-TC is a high conductivity copper ground connector that features a pre drilled pad |
| Allowing a 2-hole compression terminal to be directly connected to water pipe as well as structural and reinforcing rod shapes |
| Large smooth connector contact area between pipe and ground clamp |
| Provides large surface contact area to maximize contact area between connector and pipe |
| The GAR-TC mounting pad permits parallel, 45 deg or 90 deg angle connections to the pipe |
| Provides maximum flexibility for field installation |
| Pre-drilled pad for (2) 3/8 in bolts on 1 in centers |
| Allows direct mounting of (2) hole compression terminals up to 750 KCMIL to pipe |
| Durium silicon bronze hardware |
| Provide long lasting corrosion-resistance acceptable for direct burial in earth or concrete |
| Simplified installation |
| Provides quality assurance to recognized industry NEC standards from an independent party |
| Type GAR-TC is acceptable for direct burial |
| Silicon bronze screw |
| 240 in-lb installation torque |
| 3/8 in bolt |
| 2-1/2 to 3-1/2 in IPS pipe |
| Made of High-Conductivity Copper |
