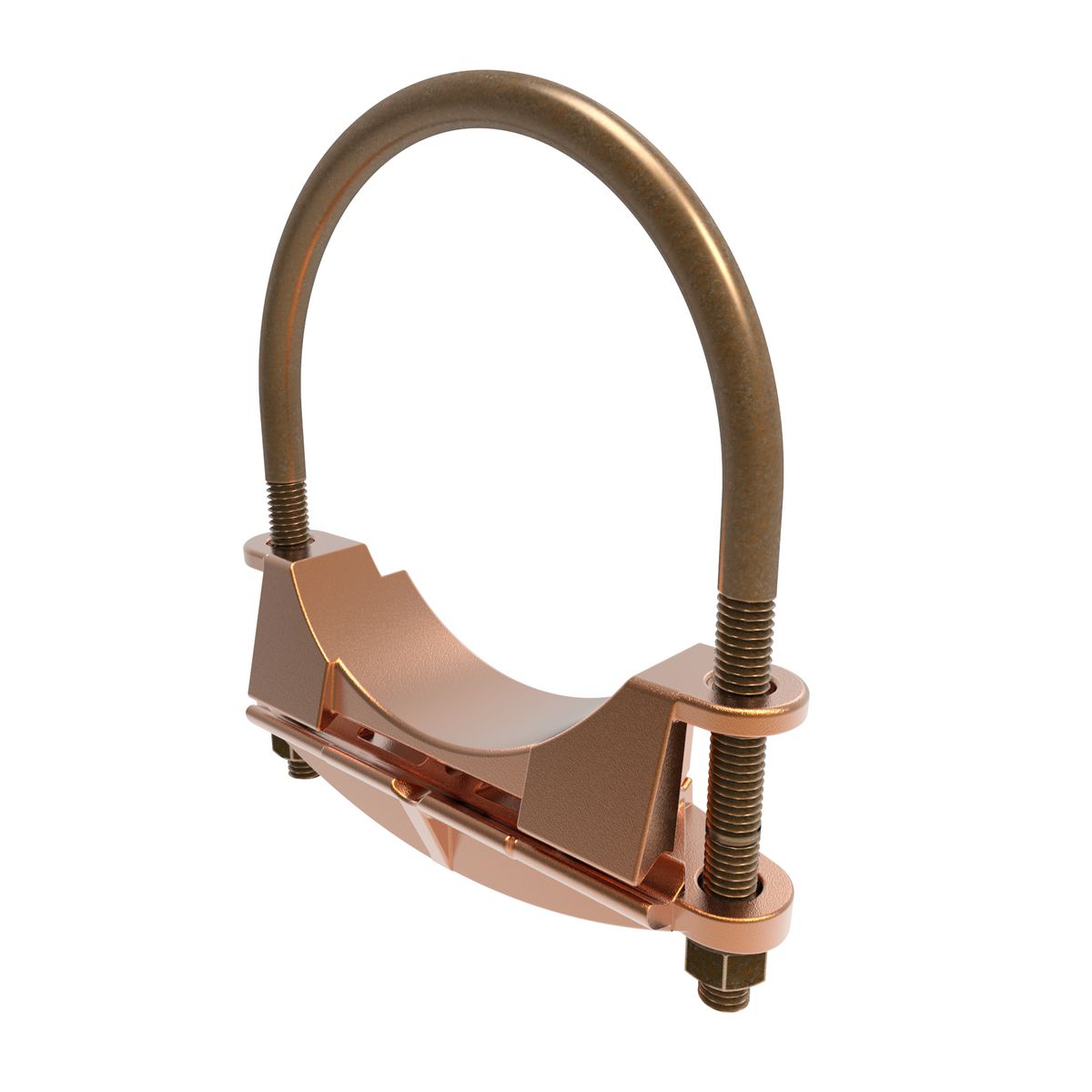

Burndy® GAR2129 GAR Mechanical Grounding Connector, 3-1/2 to 4 in Rod, 2/0 AWG to 250 kcmil Conductor, Copper
Grounding-Bonding Clamps
204543
MFG #: GAR2129
BURNDY®
118.86000
/ ea
- Brochure URL - 10969_YKIFARMWXNOL5T2C.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_8fe52303396ccbf35634de012e83f7e46e3c9643cef224a496ec32bd63b49e5d.pdf(Catalog URL)
- http://www.burndy.com(Seller Home Page URL)
- Spec Sheet URL - 10969_4PAQUVR91JNYIX75.pdf(Spec Sheet URL)
- Spec Sheet URL - BRDY-GAR2129-SPEC-EN.pdf(Spec Sheet URL)
- Tech Drawing URL - 10969_0B1UM5XYTOJIZ9WK.pdf(Tech Drawing URL)
- Applications
- Features
| For Joining A Range Of Cable, Parallel Or At Right Angles To Rod Or Tube, Direct Burial Cable, Fence Post |
| Features: High Copper Alloy Ground Connector For Joining A Range Of Cable, Parallel Or At Right Angles To Rod Or Tube, Especially Good For Fence Posts, High Copper Alloy Cast Body With DURIUM U-Bolts, Nuts And Lockwashers, Permit Entire Connection To Be Buried In Ground Or Concrete Without Danger Of Corrosion, One-Wrench Installation, UL467 Listed, Acceptable For Direct Burial, Ground Rod Size: 3-1/2 - 4 IN, Tube (ips) Size: 3-1/2 IN, Width: 5-3/8 IN, Height: 6-1/4 IN, Installation Torque: 240 IN-LB |
| High copper alloy ground connector for joining a range of cable, parallel or at right angles to rod or tube |
| Especially good for fence posts |
| High copper alloy cast body with Durium U-bolts, nuts and lock washers |
| Permit entire connection to be buried in ground or concrete without danger of corrosion |
| Acceptable for direct burial |
| 240 in-lb installation torque |
| 3-gang/8 in bolt size |
| 2/0 AWG solid to 250 kcmil (main/primary) conductor size |
| Silicon bronze hardware |
| 3-1/2 in IPS pipe |
| Made of high strength copper alloy |
