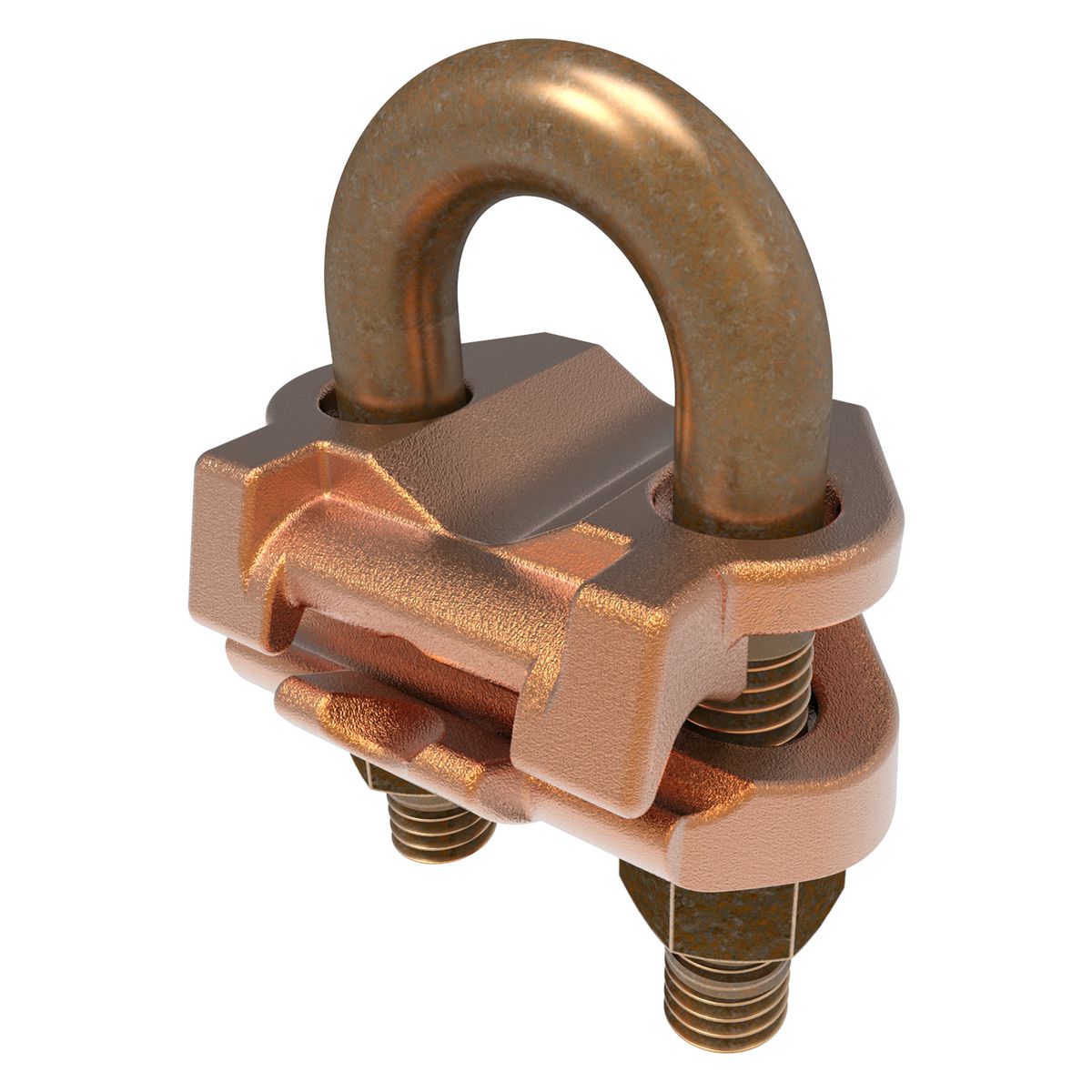

Burndy® GAR1429 GAR Mechanical Grounding Connector, 7/8 to 1 in Rod, 2/0 AWG to 250 kcmil Conductor, Copper
Grounding-Bonding Clamps
181206
MFG #: GAR1429
BURNDY®
47.95000
/ ea
- Brochure URL - 10969_AXI03CRWVEFTJ8ZS.pdf(Brochure URL)
- Brochure URL - BURNDY_GAR1429_Specsheet.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_a98302cc045b61dde958144f33c7579b919bc8f3ff1feab66f6bbe9aaded0563.pdf(Catalog URL)
- http://www.burndy.com(Seller Home Page URL)
- http://www.burndy.com/(Seller Home Page URL)
- Line Drawing URL(Line Drawing URL)
- Line Drawing URL - 10969_0B1UM5XYTOJIZ9WK.pdf(Line Drawing URL)
- Spec Sheet 1 URL - BURNDY_GAR1429_1_Specification Sheet.pdf(Spec Sheet 1 URL)
- Spec Sheet URL - 10969_6YS910JGTWH75LQ2.pdf(Spec Sheet URL)
- Spec Sheet URL - BRDY-GAR1429-SPEC-EN.pdf(Spec Sheet URL)
- Spec Sheet URL - GAR1429.pdf(Spec Sheet URL)
- Tech Drawing URL - SD015789.pdf(Tech Drawing URL)
- Tech Drawing URL - 10969_0B1UM5XYTOJIZ9WK.pdf(Tech Drawing URL)
- Tech Drawing URL - ID-DRW-v1-SD015789.pdf(Tech Drawing URL)
- Applications
- Features
| For Joining A Range Of Cable, Parallel Or At Right Angles To Rod Or Tube Fence Posts, Direct Burial Applications |
| Features: High Copper Alloy Ground Connector For Joining A Range Of Cable, Parallel Or At Right Angles To Rod Or Tube, Especially Good For Fence Posts, High Copper Alloy Cast Body With DURIUM U-Bolts, Nuts And Lockwashers, Permit Entire Connection To Be Buried In Ground Or Concrete Without Danger Of Corrosion, One-Wrench Installation, UL467 Listed, Acceptable For Direct Burial, Wire To Rebar, Fence Post Grounding Connector, Wire To Pipe, Ground Rod Size: 7/8 - 1 IN Outer-Diameter, Tube (ips) Size: 1/2 - 3/4 IN Outer-Diameter, Stud/bolt Size: 3/8 IN, Rebar Size: #7 - #8, Installation Torque: 240 IN-LB, Width: 2-3/8 IN, Height: 3 IN |
| High copper alloy ground connector for joining a range of cable, parallel or at right angles to rod or tube |
| Especially good for fence posts |
| High copper alloy cast body with DURIUM U-bolts, nuts and lock washers |
| Permit entire connection to be buried in ground or concrete without danger of corrosion |
| Acceptable for direct burial |
| 250 in-lb installation torque |
| 2/0 - 4/0 AWG solid - 2/0 - 250 kcmil (main/primary) conductor range |
| Silicon bronze hardware |
| 1/2 to 3/4 in IPS pipe |
| Made of High Copper Alloy |
