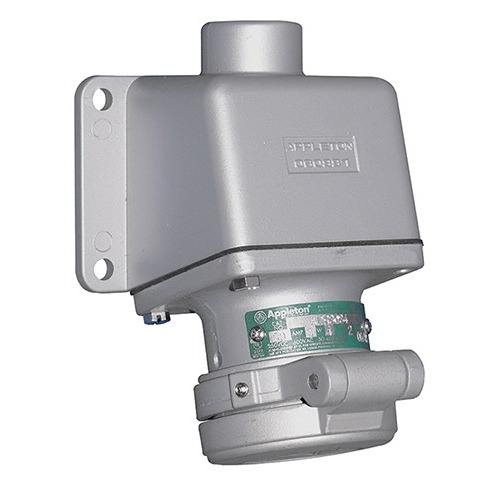

Appleton® Powertite® ADRE3034-75 Pin and Sleeve Receptacle Assembly, 600 VAC/250 VDC, 30 A, 4 Poles, 3 Wires, Natural
Pin & Sleeve Receptacle-Box Assemblies
84313
MFG #: ADRE303475
Appleton™
424.12000
/ ea
- Brochure URL - 11043_BRO_781381186261_Broc.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_cf38a88c7f15447133b0d7a7dd07fcaf596fc4214f0878d4e3f5f108b431bcf8.pdf(Catalog URL)
- http://www.appletonelec.com(Seller Home Page URL)
- Warranty URL - 11043_AFRVNTEYP0B9JHS4.pdf(Warranty URL)
- Spec Sheet URL - 11043_SPE_781381186322_Spec.pdf(Spec Sheet URL)
- https://www.appleton.emerson.com/(Seller Home Page URL)
- Warranty URL - appleton-grp-terms-and-conditions.pdf(Warranty URL)
- Applications
- Features
| For ACP3034BC Metallic And NMACP3034BC Nonmetallic Clamping Ring Plugs |
| Grounding style: Shell and extra pole; Designed to supply power to portable or fixed electrical equipment such as motor generator units, welders, pumps, compressors, cellular relay stations and similar apparatus; Ideal for use on shipping docks, ports and other ship to shore applications; Suitable for use in locations where a weatherproof enclosure is required; Rough usage construction; Natural finish glass filled polyester insulating blocks; Wire recess diameter: 9/32 IN; Weatherproof spring door, brass with beryllium copper springs |
| Designed to supply power to portable or fixed electrical equipment such as motor generator units, welders, pumps, compressors, cellular relay stations and similar apparatus |
| Ideal for use on shipping docks, ports and other ship to shore applications |
| Suitable for use in locations where a weatherproof enclosure is required |
| Rough usage construction |
| Natural finish glass filled polyester insulating blocks |
| Weatherproof spring door, brass with beryllium copper springs |
| Shell and extra pole grounding |
| 10 - 6 AWG (building), 10 - 8 AWG (extra flex) |
| 3 phase |
| Surface mount |
| 9/32 in wire recess diameter |
| Copper free (4/10 of 1 PCT maximum) aluminum |
| Epoxy powder coat |
| With AEE mounting box |
