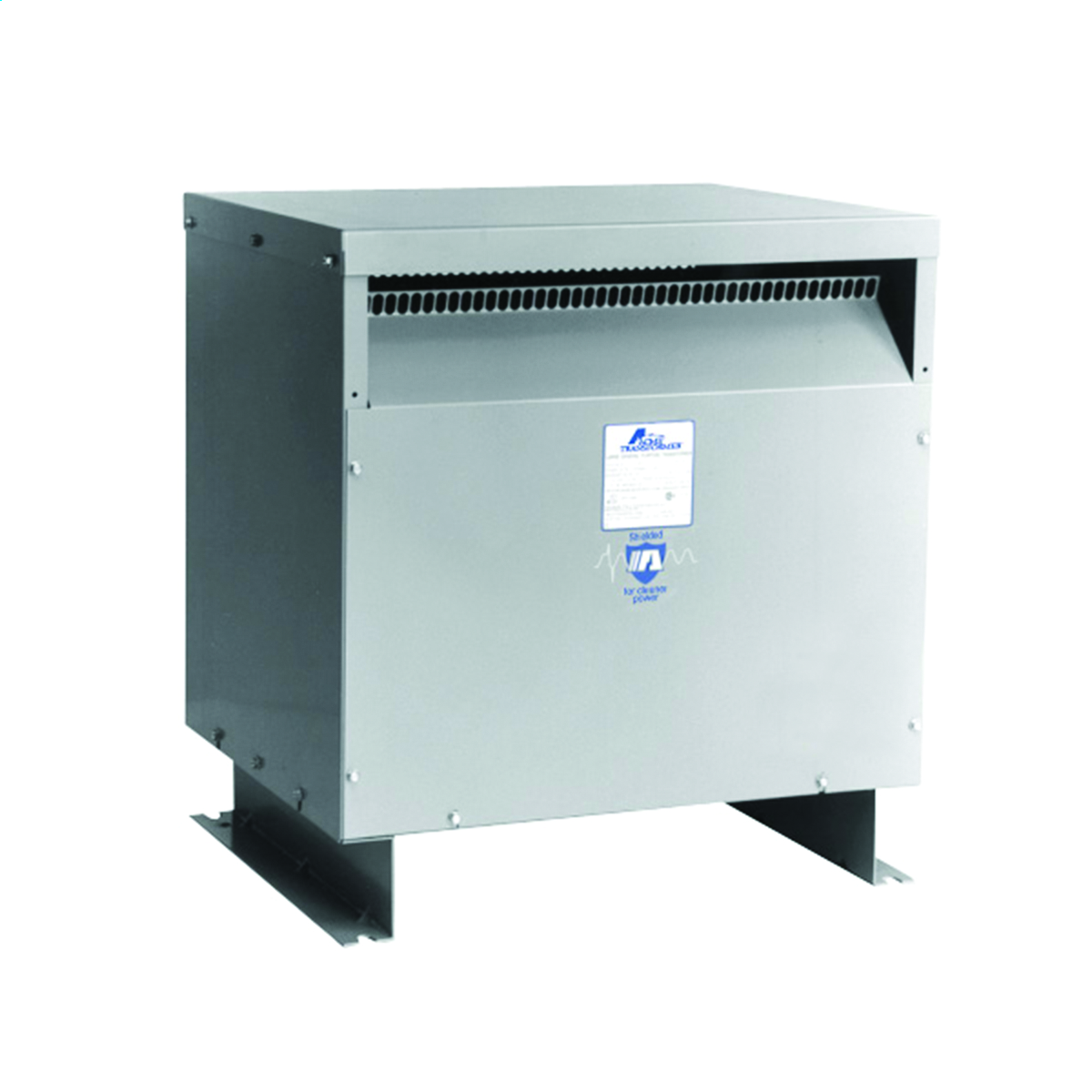

Acme Electric® DTGB0514S Ventilated Drive Isolation Transformer, 460 VAC Delta Primary, 460Y/266 VAC Secondary, 51 kVA
Drive Isolation Transformers
440135
MFG #: DTGB0514S
Acme Electric
4299.63000
/ ea
- Catalog URL - IDW_DOCUMENT_1480741299932.pdf(Catalog URL)
- Install Instructions 1 URL - 11112_GMEQCKR8X4L35ATS.pdf(Install Instructions 1 URL)
- Install Instructions 1 URL - 11112_HP5W1VA2YL0ZOUM3.pdf(Install Instructions 1 URL)
- Safety Data Sheet URL - HCC_SDS.pdf(Safety Data Sheet URL)
- Seller Home Page URL - en(Seller Home Page URL)
- Spec Sheet URL - 11112_2NXYQOJ4MBHUED5F.pdf(Spec Sheet URL)
- Tech Drawing URL - Acme_DTGB0514S_TECHNICAL_DRAWINGS.dwg(Tech Drawing URL)
- Warranty URL - WAR_product_warranty_information.pdf(Warranty URL)
- Applications
- Features
Drive Isolation |
Encapsulated and ventilated designs, all ventilated units, are of strip wound construction |
Acme reinforced core assemblies enhance quiet operation |
Nominally 6% impedance |
Full capacity taps are featured on all units |
Full range of kVA ratings cover all standard drive systems |
Ample wiring compartment for easy cable entry |
Aluminum foil windings |
Copper wire terminations |
Wound/distributed core construction |
Copper terminations for trouble free operation |
Wound core and strip winding for low losses |
Electrostatic shield for enhanced protection |
2.5% taps steps |
