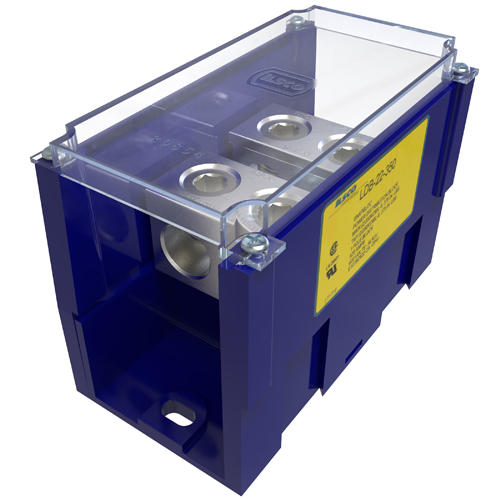

AL MECH (P)350-6 (S)350-6 T URCSA
Single Pole Distribution Blocks
509626
MFG #: LDB-22-350
ILSCO®
165.91000
/ ea
- Compliance Cert URL - ILSCO_LDA_112_350_Compliance_Certificate.pdf(Compliance Cert URL)
- http://www.ilsco.com(Seller Home Page URL)
- Line Drawing URL(Line Drawing URL)
- Spec Sheet URL - 10975_D6FW7BTI49N1X8YE.pdf(Spec Sheet URL)
- Spec Sheet URL - LDA.pdf(Spec Sheet URL)
- Tech Drawing URL - 10975_P8VKZBMDAN2TRWH7.pdf(Tech Drawing URL)
- Tech Drawing URL - M4035.PDF(Tech Drawing URL)
- Video - https://www.youtube.com/embed/8dqLFkVfsS4&t=267s(Video)
- Features
| Modular design simplifies stocking. Combine any number of blocks with multiple conductor ranges for the specific configuration required for the job;Unique locking feature allows individual blocks to be combined quickly without special tools;suitable for use with copper and aluminum conductors in any combination;Individual blocks supplied in a variety of configurations with one or two main ports and four, six, or twelve taps |
| Modular design |
| Easy to assemble |
| Multiple conductor capability |
| Simplifies stocking, combines any number of blocks with multiple conductor ranges into the specific configuration required for the job |
| Unique locking feature allows individual blocks to be combined quickly without special tools |
| Ensures reliability |
| Permits visual inspection |
| Aluminum connector |
| 3/8 in hex primary, 3/8 in hex secondary |
| (2) box lug primary, (2) box lug secondary |
| 6 AWG to 350 kcmil primary and secondary wire |
| Lexan® insulating base |
| UL assigned short circuit current rating |
| Manufactured from high strength 6061-T6 aluminum alloy |
| LDA, LDAU are added to LDB, LDBU to obtain a multi-pole block |
| Convert LDA,LDAU to LDB, LDBU by adding LDS-1 side plate |
