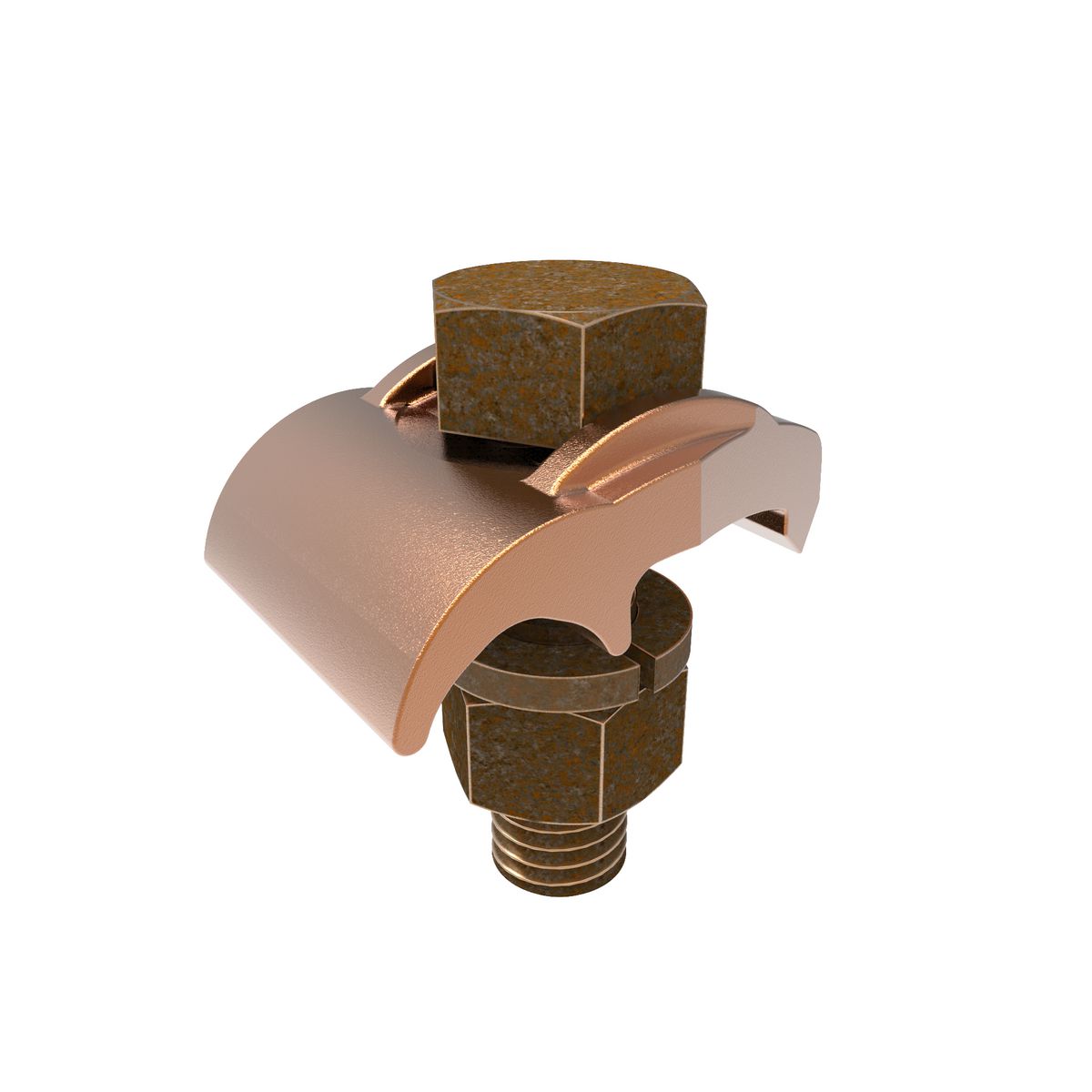

All BURNDY® mechanical grounding connectors have been designed for easy installation and for outstanding durability. Only the finest high copper alloys are used in their manufacture, ensuring top performance under the most extreme environmental conditions. UL467 Listed for direct burial applications in earth or concrete.
- Brochure URL - 10969_ID-SPE-v1-GBM26.pdf(Brochure URL)
- Brochure URL - BURNDY_GBM26_Specsheet.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_07c85cfc546a6062ef363dfa30ac667a3af67b9537cb3c042f0a39a422a756c6.pdf(Catalog URL)
- http://www.burndy.com(Seller Home Page URL)
- http://www.burndy.com/(Seller Home Page URL)
- Line Drawing URL(Line Drawing URL)
- Line Drawing URL - 10969_ID-DRW-v1-sc091658-01.pdf(Line Drawing URL)
- Spec Sheet URL - 10969_QXIWN03MF2ALBH8E.pdf(Spec Sheet URL)
- Spec Sheet URL - BRDY-GBM26-SPEC-EN.pdf(Spec Sheet URL)
- Spec Sheet URL - GBM26.pdf(Spec Sheet URL)
- Spec Sheet URL - ID-SPE-v1-GBM26.pdf(Spec Sheet URL)
- Tech Drawing URL - 10969_ID-DRW-v1-sc091658-01.pdf(Tech Drawing URL)
- Tech Drawing URL - ID-DRW-v1-sc091658-01.pdf(Tech Drawing URL)
- Tech Drawing URL - sc091658-01.pdf(Tech Drawing URL)
- Applications
- Features
| For Copper Cable To Bar, Direct Burial Cable |
| Features: High Copper Alloy Ground Connector For Joining A Range Of Cable To 1/4 IN Thick Bar, Type GBM Clamps Cable Directly On Bar Surface, One-Wrench Installation, UL467 Listed, The High Copper Alloy Cast Body And DURIUM Bolts, Nuts, And Lockwashers Make The GBM Suitable For Direct Burial In Concrete Or Ground, Installation Torque: 240 IN-LB, Width: 1-1/2 IN, Bar Thickness: 1/4 IN, Height: 1-1/2 IN |
| High copper alloy ground connector for joining a range of cable to 1/4 in thick bar |
| Type GB separates cable from bar |
| The high copper alloy cast body and durium bolts, nuts, and lock washers make the GB and gbm suitable for direct burial in concrete or ground |
| 240 in-lb installation torque |
| 3/8 in bolt |
| 4 - 2/0 AWG solid - 4 - 2/0 AWG stranded (main/primary) conductor range |
| Made of High Copper Alloy |
