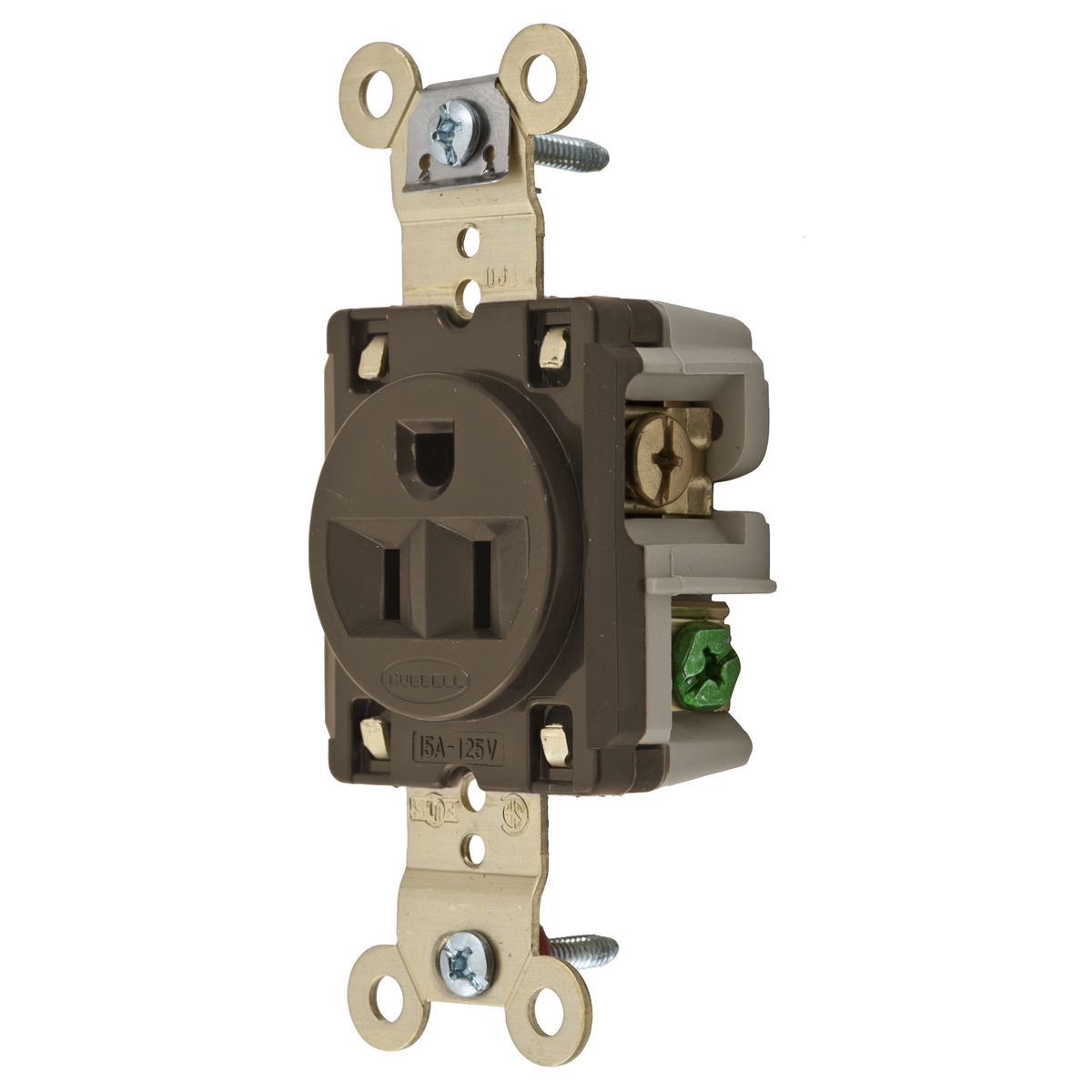

Hubbell Wiring Device-Kellems HBL5261 Extra Heavy Duty Single Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Brown
Straight Blade Receptacles
26165
MFG #: HBL5261
Hubbell Wiring Device-Kellems
30.33000
/ ea
- Application: Extra Heavy Duty Specification Grade
- ARRA Compliant: C
- Buy American Compliant: C
- Catalog Number: HBL5261
- Connection: Back and Side Wired
- Country of Origin: US
- Currency: USD
- Dielectric Strength: Withstands 2,000V minimum
- Dimensions: 3.28 in H x 1.63 in W x 1.19 in D
- Environmental Conditions: Indoor Dry unless protected by additional means
- EU RoHS Indicator: Y
- Grade: Industrial
- Gross Weight Per Pack: 0.2950 lb
- Gross Weight per Pack Metric: 0.04
- Gross Weight UOM Metric: kg
- Harmonization Tariff Schedule Code: 8536698000
- Height: 1.70 in
- Height [Metric]: 4.3180 cm
- Horsepower: 1/2 hp
- Length: 4.20 in
- Length [Metric]: 10.6680 cm
- Material: Thermoplastic
- Mounting: Screw Mount
- NEMA Rating: 5-15R
- Phase: 1
- Returnable: Y
- Size: 3.28 in x 1.63 in x 1.19 in
- Standard: Certified to CSA 22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
- Standards: UL 498, File No. E2186 Listed, UL 94-V-2 Flammability RatingCSA 22.2 No. 42, 285 NEMA WD1/WD5/WD6 Compliant
- Sub Brand: Straight Blade Devices
- Temperature Rating: -40 to 75 °C
- Terminal Type: Back/Side Wired
- Type: Single Receptacle
- UNSPSC: 39121406
- UPC 11: 78358501385
- UPC 12: 783585013855
- Wattage: 1,875 W
- Width: 1.90 in
- Width [Metric]: 4.8260 cm
- Wire Size: #14 AWG to #10 AWG
- Stock Status: NORMALLY STOCKED
- Brand: Hubbell Wiring Device-Kellems
- Manufacturer: Hubbell
- Amperage Rating: 15 A
- Color: Brown
- Number of Wires: 3
- Number Of Poles: 2
- Voltage Rating: 125 VAC
- Catalog URL - HUBBELL_BR15ITR_Catalog.pdf(Catalog URL)
- http://www.hubbell-wiring.com/(Seller Home Page URL)
- Install Instructions 1 URL - 11456_3AVMOS8LWP6GY1KI.pdf(Install Instructions 1 URL)
- Install Instructions 1 URL - WIRING_PD2615_INSTALLINST.pdf(Install Instructions 1 URL)
- Line Drawing URL - 11456_JXR1C8ZG0I45B7QL.pdf(Line Drawing URL)
- Line Drawing URL - WDK_HBL5261_DRAWING_PDF.pdf(Line Drawing URL)
- Spec Sheet 1 URL - HUBBELL_HBL5261_Datasheet_1.pdf(Spec Sheet 1 URL)
- Spec Sheet URL - 11456_4ASIMYWK209NHQ16.pdf(Spec Sheet URL)
- Spec Sheet URL - WIRING_HBL5261_spec.pdf(Spec Sheet URL)
- Tech Drawing URL - WIRING_HBL5261_M6404_ACAD_DRAWING.dwg(Tech Drawing URL)
- Warranty URL - 11456_Y8PS6T0FNOGH3Q75.pdf(Warranty URL)
- Warranty URL - Wiring_WDK_Warranty.pdf(Warranty URL)
- Applications
- Features
| Extra Heavy Duty Specification Grade |
| Self Grounding |
| Traditional face shape |
| Withstands 2000 VAC dielectric voltage |
| 14 to 10 AWG solid or stranded copper conductor terminal accommodation |
| Finder groove face style |
| 1 piece brass integral ground strap |
| Unique bypass contact design |
| PBT base, 0.037 in brass power contacts |
| Brass ground contacts |
| 0.05 in brass mounting strap |
| Certified for current interrupting at full rated current |
| Stainless steel automatic self-grounding staple |
| Zinc plated steel mounting screws |
| Indoor dry unless protected by additional means |
