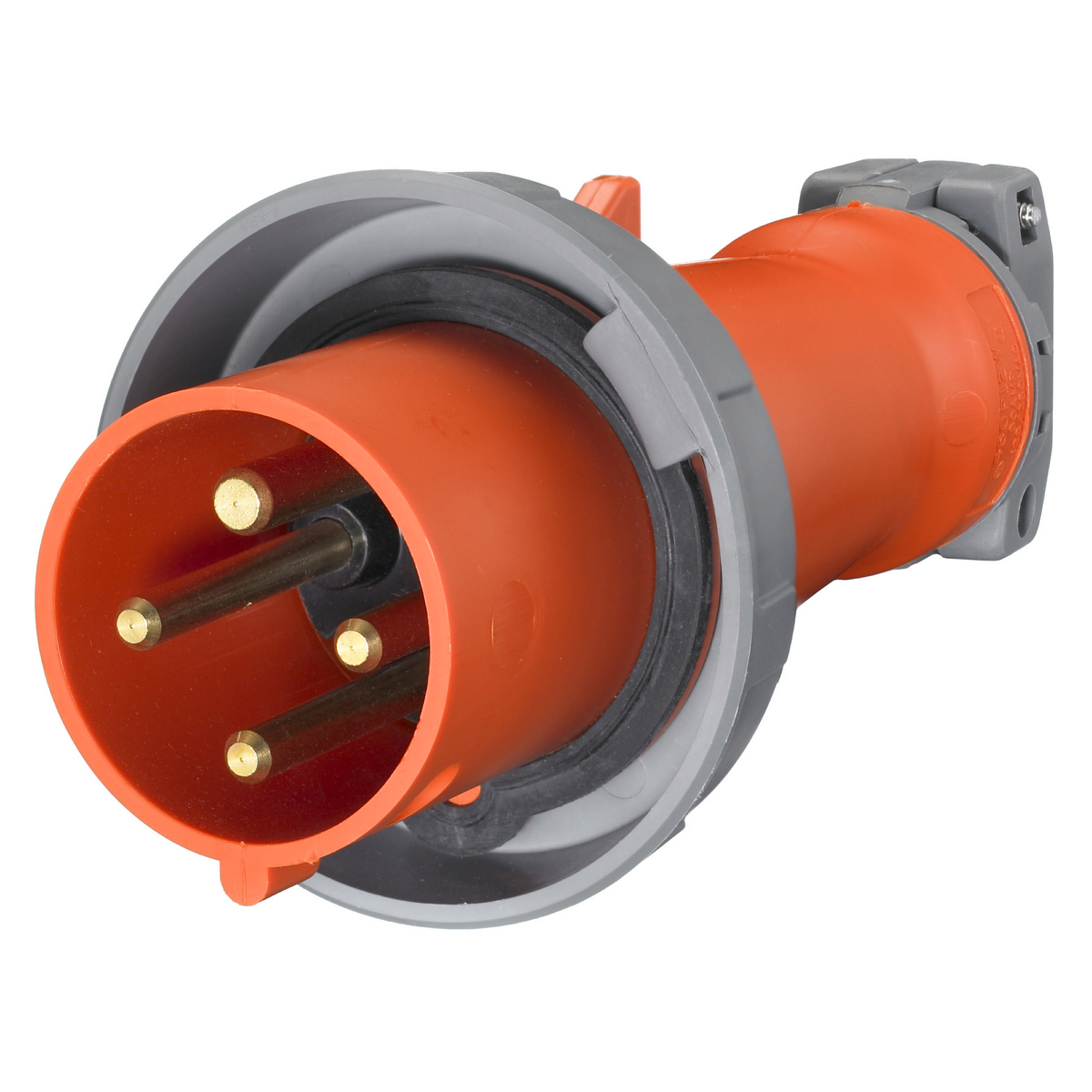

Hubbell® HBL420P12W Watertight Pin & Sleeve Plug, 125/250 VAC, 20 A, 3 Poles, 4 Wires, Orange
Pin & Sleeve Plugs
26987
MFG #: HBL420P12W
Hubbell Wiring Device-Kellems
255.86000
/ ea
- Application: High Ampacity Connections
- ARRA Compliant: C
- Buy American Compliant: C
- Catalog Number: HBL420P12W
- Connection: Pressure Terminal Screws
- Cord Type: All Portable
- Country of Origin: US
- Currency: USD
- Dimensions: 3.19 in Dia x 7 in L
- Enclosure: IP67
- Environmental Conditions: Watertight
- EU RoHS Indicator: Y
- Grade: Industrial
- Gross Weight Per Pack: 0.9500 lb
- Gross Weight per Pack Metric: 0.45
- Gross Weight UOM Metric: kg
- Harmonization Tariff Schedule Code: 8536694020
- Height: 4.00 in
- Height [Metric]: 10.1600 cm
- Horsepower: 2 hp
- Length: 8.20 in
- Length [Metric]: 20.8280 cm
- Material: COMPOSITE
- Mounting: Cord Mounted
- NEMA Rating: Non-Nema
- Phase: 1
- Returnable: Y
- Size: Standard Sized
- Standard: CSA Standard C22.2 No. 182.1;UL Classified to IEC60309-1;UL Listed, File E146032
- Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantUL File No. E146032CSA C22.2 File No. 182.1IEC60309-1
- Sub Brand: Pin and Sleeve Devices
- Temperature Rating: -40 to 75 °C
- Terminal Type: Pressure Screw
- Type: Watertight Plug
- UNSPSC: 39121402
- UPC 11: 78358540434
- UPC 12: 783585404349
- Width: 4.10 in
- Width [Metric]: 10.4140 cm
- Wire Size: #14 AWG to #10 AWG
- Stock Status: NONSTOCK
- Brand: Hubbell Wiring Device-Kellems
- Manufacturer: Hubbell
- Amperage Rating: 20 A
- Color: Orange
- Number of Wires: 4
- Voltage Rating: 125/250 VAC
- Number Of Poles: 3
- Catalog URL - HUBBELL_HBL560P9W_Catalog.pdf(Catalog URL)
- http://www.hubbell-wiring.com/(Seller Home Page URL)
- Install Instructions 1 URL - 11456_PDY5FZ2LGIMES1BW.pdf(Install Instructions 1 URL)
- Install Instructions URL - Wiring_Device_Kellems_HBL3100P4W_Instruction_Sheet.pdf(Install Instructions URL)
- Line Drawing URL - 11456_8VQ6TDI592HAJ1Y7.pdf(Line Drawing URL)
- Spec Sheet URL - 11456_U03WZRSPBYD5VL8N.pdf(Spec Sheet URL)
- Tech Drawing URL - WIRING_HBL420P12W_M13326_ACAD_DRAWING.dwg(Tech Drawing URL)
- Video - https://www.youtube.com/embed/pk3B7mE3w8Q(Video)
- Video - https://www.youtube.com/embed/ZP-jfAAABN0(Video)
- Warranty URL - 11456_Y8PS6T0FNOGH3Q75.pdf(Warranty URL)
- Applications
- Features
| High Ampacity Connections |
| Watertight |
| 1-piece non-metallic housing provides impact and chemical resistance in an insulated body |
| Solid 1-piece pins for reliable electrical contact |
| Gasketed sealing ring provides watertight seal when mated with receptacle or connector |
| Heavy duty external cord grips for maximum cord retention |
| High impact thermoset contact carrier and retainer |
| Rynite SST35 lock ring, cord clamps, gland cap |
| 0.33 to 0.83 in cord clamp range |
| 3000 VAC minimum dielectric withstand voltage |
| Watertight per IEC 60309-1 |
