Appleton® STNM-SR75 Wire Mesh Strain Relief With Cap, 3/4 in Trade, Stainless Steel, Stainless Steel
Flexible Cord Connectors with Grips
301594
MFG #: STNMSR75
Appleton™
129.10000
/ ea
- Application: For Type A Liquidtight Flexible Non-Metallic Conduit
- ARRA Compliant: N
- Buy American Compliant: N
- Catalog Number: STNMSR75
- Country of Origin: MX
- Currency: USD
- EU RoHS Indicator: C
- Gross Weight Per Pack: 0.2100 lb
- Gross Weight per Pack Metric: 0.10
- Gross Weight UOM Metric: kg
- Height: 0.48 in
- Height [Metric]: 12.0650 mm
- Length: 12.80 in
- Length [Metric]: 32.5120 cm
- Series: STNM-SR
- Standard: UL 514B, UL File Number E14814, CSA Number C22.2 18, CSA 065178, Class I, Division 2
- Standards: UL 514B, UL E14814 Listed, CSA C22.2 No 18, CSA 065178 Certified, RoHS Compliant
- Type: Strain Relief
- UNSPSC: 39121719
- UPC 11: 78138159912
- UPC 12: 781381599122
- Width: 6.20 in
- Width [Metric]: 15.7480 cm
- Stock Status: NONSTOCK
- Brand: Appleton™
- Manufacturer: Appleton
- Finish: Stainless Steel
- Material: Stainless Steel
- Trade Size: 0.75 in
Appleton Group provides a complete selection of conduit bodies, outlet boxes, device boxes, cable glands and other fittings for both hazardous and ordinary locations. A variety of materials and styles are available to suit your needs for weather and corrosion-resistance. Whether you are wiring an office building or an offshore oil platform, Appleton Group has all the top quality components you need.
- Brochure URL - 11043_BRO_781381599115_Broc.pdf(Brochure URL)
- Brochure URL - BRO_781381599115_Broc.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_0ac0807206c4c45fdf6da13534277aa620658265020ef3b197da76fdb1d464a5.pdf(Catalog URL)
- http://www.appletonelec.com(Seller Home Page URL)
- https://www.appleton.emerson.com/(Seller Home Page URL)

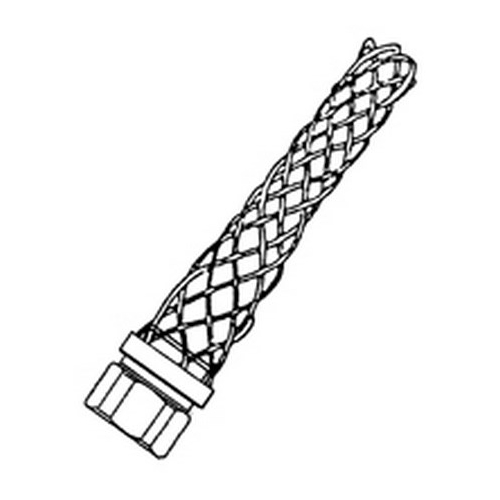

- Line Drawing URL - 11043_STNM-SR38.jpg(Line Drawing URL)
- Line Drawing URL - STNM-SR38.jpg(Line Drawing URL)
- Seller Home Page URL - appleton(Seller Home Page URL)
- Spec Sheet 1 URL - Appleton_STNM_SR50_Specification_Sheet_1.pdf(Spec Sheet 1 URL)
- Spec Sheet 2 URL - Appleton_STNM_SR50_Specification_Sheet_2.pdf(Spec Sheet 2 URL)
- Spec Sheet URL - 11043_SPE_781381599115_Spec.pdf(Spec Sheet URL)
- Spec Sheet URL - SPE_781381599115_Spec.pdf(Spec Sheet URL)
- Warranty URL - 11043_AFRVNTEYP0B9JHS4.pdf(Warranty URL)
- Warranty URL - appleton-grp-terms-and-conditions.pdf(Warranty URL)
- Applications
- Features
| For Type A Liquidtight Flexible Non-Metallic Conduit |
| The STNM-SR Series with cap can be substituted for any related trade size STNM Series cap to convert it to a connector with a wire mesh strain relief; STNM connectors provide a convenient and secure |
| The STNM-SR Series with cap can be substituted for any related trade size STNM Series cap to convert it to a connector with a wire mesh strain relief |
| STNM connectors provide a convenient and secure |
| The sleeve separates the STNM series apart from ordinary connectors |
| The sleeve is held captive within a compression nut that allows it to move freely and self-align with the conduit having a slightly irregular surface or varying wall thickness |
| The nut rides only on the sleeve and not on the conduit |
| It cannot bend or twist the conduit, and thereby protects wiring |
| When fully tightened, the flared sleeve extends beyond the nut, providing additional protection from flexing |
| Ease of assembly and disassembly of STNM connectors permits make-up of harnesses in advance for fast, simple connections during production line assemblies |
| Available in straight and 90 deg styles from 3/8 thru 2 in |
| Connectors are furnished with locknut and neoprene "O" ring for a liquidtight seal to JIC boxes |
