Appleton® CG-SR16S CG Series Wire Mesh Strain Relief Cord Grip, 1 in Trade, 7/8 to 1 in Cable Openings, Stainless Steel
Flexible Cord Connectors with Grips
903493
MFG #: CGSR16S
Appleton™
155.32000
/ ea
- Application: For Steel Cord Connector
- ARRA Compliant: C
- Buy American Compliant: N
- Catalog Number: CGSR16S
- Connection Type: Female Threaded x Mesh
- Country of Origin: MX
- Currency: USD
- Dimensions: 7.94 in L x 1.75 in W
- EU RoHS Indicator: C
- Gross Weight Per Pack: 0.3900 lb
- Gross Weight per Pack Metric: 0.18
- Gross Weight UOM Metric: kg
- Height: 0.85 in
- Height [Metric]: 21.5900 mm
- Hub Size: 1/1.25 in
- Length: 12.00 in
- Length [Metric]: 30.4800 cm
- Series: CG Series
- Standard: UL 514B, UL File Number E14817, CSA Number C22.2 18.3, CSA 065178, Class I, Division 2, Class II, Division 1 And 2, Class III
- Standards: ARRA CompliantRoHS CompliantCSA C22.2UL 514B
- Type: Strain Relief
- UNSPSC: 39121719
- UPC 11: 78138162651
- UPC 12: 781381626514
- Width: 10.50 in
- Width [Metric]: 26.6700 cm
- Stock Status: NONSTOCK
- Brand: Appleton™
- Manufacturer: Appleton
- Finish: Zinc Plated
- Material: Stainless Steel
- Trade Size: 1 in
- http://www.appletonelec.com(Seller Home Page URL)
- https://www.appleton.emerson.com/(Seller Home Page URL)
- Line Drawing URL - 11043_CG-SR1S_Mesh_Relief.jpg(Line Drawing URL)

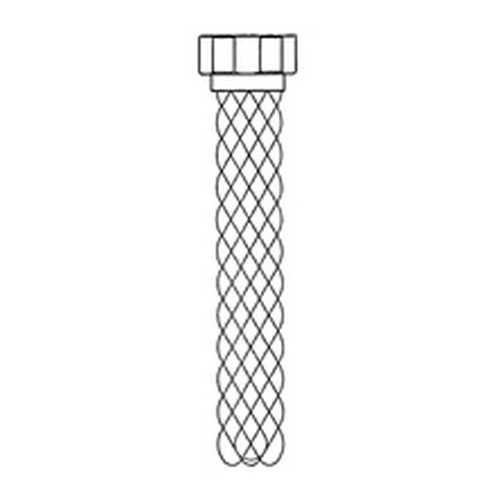

- Line Drawing URL - CG-SR1S_Mesh_Relief.jpg(Line Drawing URL)
- Seller Home Page URL - appleton(Seller Home Page URL)
- Spec Sheet 1 URL - Appleton_CG_SR1_Specification_Sheet.pdf(Spec Sheet 1 URL)
- Spec Sheet URL - 11043_SPE_781381626347_Spec.pdf(Spec Sheet URL)
- Spec Sheet URL - SPE_781381626347_Spec.pdf(Spec Sheet URL)
- Warranty URL - 11043_AFRVNTEYP0B9JHS4.pdf(Warranty URL)
- Warranty URL - appleton-grp-terms-and-conditions.pdf(Warranty URL)
- Applications
- Features
| For Steel Cord Connector |
| Relieve strain at cable termination; Wire mesh strain reliefs can be used with cord and cable connectors for particularly harsh applications |
| Relieve strain at cable termination |
| Wire mesh strain reliefs can be used with cord and cable connectors for particularly harsh applications |
| Neoprene sealing grommet firmly but safely grips cable jacket providing strain relief protecting internal wiring connections against external tension on cable or cord |
| Steel or Teflon washer reduces friction between grommet and connector cap providing even pressure distribution eliminating leakage resulting from grommet distortion |
| Large aluminum connectors 1-1/2 thru 4 in and all steel connectors are constructed with hex head cap as preferred by some industries |
| For particularly harsh applications, wire mesh strain reliefs may be used with cord and cable connectors |
| Steel Cap |
| NEMA 3R Enclosure |
| For steel cord grips |
| 1 in, 1-1/4 in trade size |
