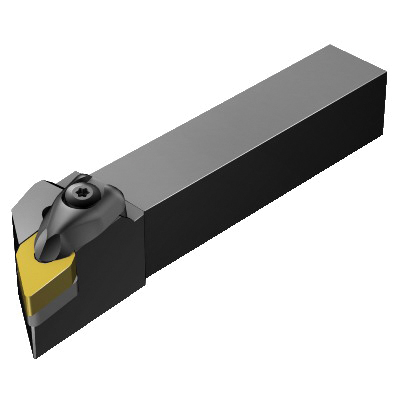

Sandvik Coromant 5731035 T-Max P Turning Shank Tool, DDJNR/L Tool Holder, DNMG 15 04 08 Insert, -3 deg Lead, Rectangle Shank
Indexable Turning Tool Holders
79621
MFG #: 5731035
Sandvik Coromant
156.51000
/ ea
- Alternate Catalog Number: DDJNL 16 4D
- ANSI Code: DDJNL 16 4D
- Back of Bar to Cutting Edge: -3 deg
- Catalog Number: 5731035
- Country of Origin: SE
- Finish: DDJNR/L
- Gross Weight Per Pack: 2.2000 lb
- Head Length: DDJNL 16 4D
- Inscribed Circle: DDJNL 16 4D
- Insert Seat Size: 1/2
- ISO Code: DDJNL 16 4D
- Item Group: 410
- Material: Steel
- Series: T-Max P
- Shank Type: Rectangle
- Type: DNMG 15 04 08
- UPC 11: 69826200454
- UPC 12: 69826200454
- Stock Status: NONSTOCK
- Brand: Sandvik Coromant
- Manufacturer: Sandvik Coromant
- Cutting Direction: Left Hand
- Insert Compatibility: DNMG 15 04 08
- Lead Angle: -3 deg
- Overall Length: 6 in
- Rake: -6 deg
- Shank Size: 1 in H x 1 in W
- Tool Holder Style: DDJNR/L
- Features
| 0 deg body machine side |
| 20 life cycle state |
| 0 deg body workpiece side |
| Without coolant entry |
| Floating wedge, RC hole |
| No coolant exit |
| 93 deg cutting edge |
| -7 deg inclination |
| 39.37 mm maximum overhang |
| 27 deg ramping |
| D insert shape |
| 3.9 Nm torque |
| 25.4 mm H functional |
| 31.75 mm W functional |
| 152.4 mm L functional |
