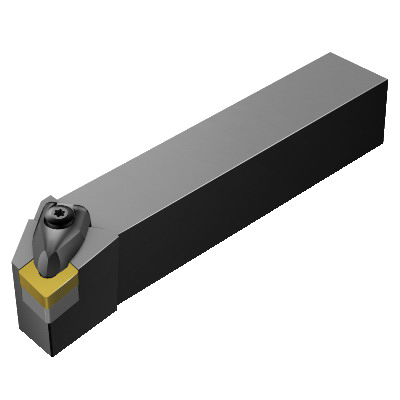

Sandvik Coromant 5730810 T-Max P Turning Shank Tool, DCLNR/L Tool Holder, CNMG 12 04 08 Insert, -5 deg Lead, Rectangle Shank, Right Hand
Indexable Turning Tool Holders
59200
MFG #: 5730810
Sandvik Coromant
156.51000
/ ea
- Alternate Catalog Number: DCLNR 16 4D
- ANSI Code: DCLNR 16 4D
- Back of Bar to Cutting Edge: Steel
- Catalog Number: 5730810
- Country of Origin: SE
- Finish: DCLNR/L
- Gross Weight Per Pack: 2.2000 lb
- Head Length: 152.4 mm
- Inscribed Circle: 1 in H x 1 in W
- Insert Seat Size: 1/2
- ISO Code: DCLNR 16 4D
- Item Group: 410
- Material: Steel
- Series: T-Max P
- Shank Type: Rectangle
- Type: Rectangular
- UPC 11: 69826200447
- UPC 12: 69826200447
- Stock Status: NONSTOCK
- Brand: Sandvik Coromant
- Manufacturer: Sandvik Coromant
- Cutting Direction: Right Hand
- Insert Compatibility: CNMG 12 04 08
- Lead Angle: -5 deg
- Overall Length: 6 in
- Rake: -6 deg
- Shank Size: 1 in H x 1 in W
- Tool Holder Style: DCLNR/L
- Features
| 0 deg body machine side |
| 20 life cycle state |
| 0 deg body workpiece side |
| Without coolant entry |
| Floating wedge, RC hole |
| No coolant exit |
| 95 deg cutting edge |
| -6 deg inclination |
| 32 mm maximum overhang |
| 0 deg ramping |
| C insert shape |
| 3.9 Nm torque |
| 25.4 mm H functional |
| 31.75 mm W functional |
| 152.4 mm L functional |
