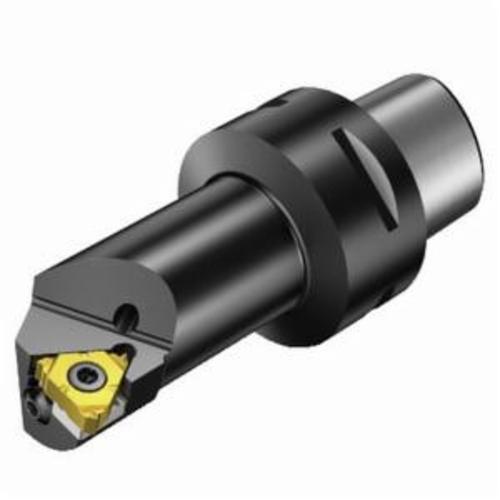

Sandvik Coromant 5728963 CoroThread® 266, Left Hand
Modular Threading Cutting Unit Heads
1245566
MFG #: 5728963
Sandvik Coromant
598.18000
/ ea
- Alternate Catalog Number: C5-266LKF-17070-16
- Catalog Number: 5728963
- Country of Origin: SE
- Gross Weight Per Pack: 1.4100 lb
- Head Length|Projection: 2.7559 in
- Item Group: 410
- Series: CoroThread® 266
- UPC 11: 69826248614
- Stock Status: NONSTOCK
- Brand: Sandvik Coromant
- Manufacturer: Sandvik Coromant
- Center to Cutting Edge: 0.6692 in
- Cutting Direction: Left Hand
Sandvik Coromant Thread Turning Cutting Unit, Series: CoroThread® 266, Left Hand Cutting, 0.6692 in Center to Cutting Edge, 2.7559 in Head Length/Projection
- Features
| Bolt and segment clamping machine side adaptive interface |
| 20 life cycle state |
| -15 deg axial clearance |
| 0 deg body workpiece side |
| 24.5 mm Dia steel body |
| Axial concentric and radial entry |
| 10 bar coolant |
| 40 - 60 deg insert screw, rail bottom |
| Axial inclined exit |
| 50 mm Dia connection32 mm Dia minimum bore |
| -15 deg rake orthogonal |
| -1 deg inclination |
| 47 mm L usable |
| 266.LL-16.. compatible insert |
| 100 mm OAL |
| T - Triangle insert shape |
| 3/8 in insert seat |
| 1 deg thread helix correction |
| 3 Nm torque |
| Cx-266R/LKF tool style |
