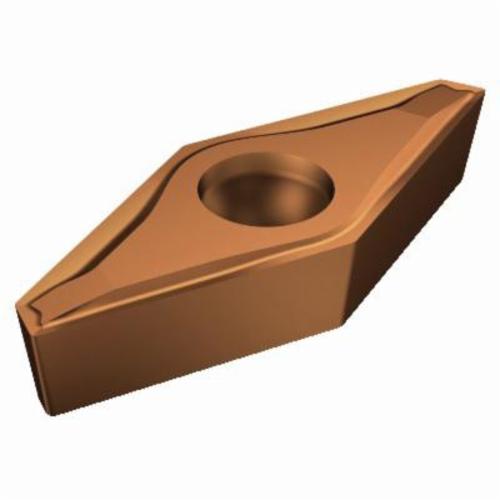

Sandvik Coromant 5755881 CoroTurn® 107 Basic Shape Positive Turning Insert, VCEX 22(00)R-F 1125, V-35 deg Diamond, 1125
VCEX Turning Inserts
487587
MFG #: 5755881
Sandvik Coromant
35.38000
/ ea
- Alternate Catalog Number: VCEX 22(00)R-F 1125
- ANSI Code: VCEX 22(00)R-F 1125
- Catalog Number: 5755881
- Corner Radius: 0.0007 in
- Country of Origin: SE
- Finish: PVD Coated
- Gross Weight Per Pack: 0.0100 lb
- Hand of Insert: Right
- Hole Diameter: 0.1102 in
- Included Angle: 35 deg
- ISO Code: VCEX 11 03 00R-F 1125
- Item Group: 120
- Length: 0.4358 in
- Relief Angle: 7 deg
- Series: CoroTurn® 107
- Thickness: 1/8 in
- Type: Basic Shape Positive
- UPC 11: 69826244682
- UPC 12: 69826244682
- Width: F
- Stock Status: NONSTOCK
- Brand: Sandvik Coromant
- Manufacturer: Sandvik Coromant
- Chipbreaker: F
- Inscribed Circle: 1/4 in
- Insert Size: V - 35 deg Diamond
- Insert Style: VCEX
- Manufacturer's Grade: 1125
- Material: Carbide
- Material Grade: M/N/S
- Maximum Depth of Cut: 4 mm
- Shape: V-35 deg Diamond
- Features
| 40 - 60 deg countersunk hole and non-flat surface clamping interface |
| 1-side cutting |
| +/-0.025 mm THK and inscribed circle tolerance |
| Sharp cutting edge |
| Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| For external machining of small, long, slender components and internal machining |
| The positive insert shape combines low cutting forces with good edge strength |
| The screw clamping ensures stability and unobstructed chip flow |
| Wiper technology for high feed machining |
| Improved machining economy |
| Excellent surface finish |
| Eliminate expensive grinding operations |
| Undisturbed production |
| Less need for supervision |
| 0.01 - 0.2 mm/r cutting feed |
| 20 life cycle state |
