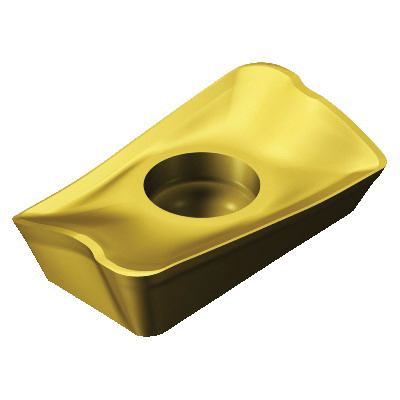

Sandvik Coromant 5745718 CoroMill® 390 Milling Insert, R390-17 04 24E-PM 1025, L-Rectangle, R390..E-PM Insert, Carbide, 1025, R390-17 04 24E-PM 1025
R390 Milling Inserts
60998
MFG #: 5745718
Sandvik Coromant
31.17000
/ ea
- Alternate Catalog Number: R390-17 04 24E-PM 1025
- ANSI Code: R390-17 04 24E-PM 1025
- Catalog Number: 5745718
- Corner Radius: 0.094 in
- Country of Origin: SE
- Finish: PVD Coated
- Gross Weight Per Pack: 0.0100 lb
- Hand of Insert: Right
- Hole Diameter: 0.1614 in
- ISO Code: R390-17 04 24E-PM 1025
- Item Group: 350
- Lead Angle: 90 deg
- Length: 0.687 in
- Material Application: Hardened Material, Stainless Steel, Steel and Heat Resistant Super Alloys
- Relief Angle: L - Rectangle
- Series: CoroMill® 390
- Thickness: 0.1874 in
- Type: R390-17 04 24E-PM 1025
- UPC 11: 69826211913
- UPC 12: 69826211913
- Width: 0.378 in
- Width UOM: in
- Stock Status: NONSTOCK
- Brand: Sandvik Coromant
- Manufacturer: Sandvik Coromant
- Chipbreaker: PM
- Inscribed Circle: 0.378 in
- Insert Size: PVD Coated
- Insert Style: R390..E-PM
- Manufacturer's Grade: 1025
- Material: Carbide
- Material Grade: H/M/P/S
- Maximum Depth of Cut: 4.7625 mm
- Rake: Positive
- Shape: L-Rectangle
- Features
| 40 to 60 deg countersunk hole and non-flat surface clamping interface |
| 19 deg clearance |
| 15.7 mm D cutting |
| 90 deg major cutting edge |
| 15.7 mm L effective cutting edge |
| 1-side cutting |
| 20 life cycle state |
| 2 corner |
| E cutting edge condition |
| 2 cutting edge |
| Screw clamp mounting |
| 0.08 to 0.2 mm/r cutting feed |
