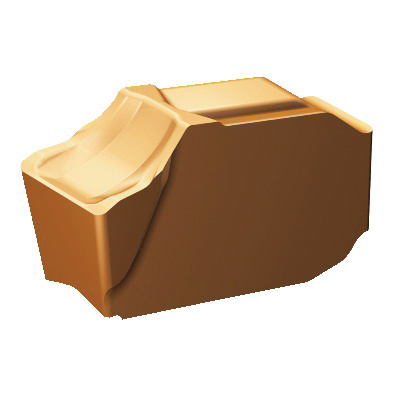

Sandvik Coromant 6656959 CoroMill® QD Grooving Insert, QD-NK-0600-035E-PM 1030 ANSI, QD-N..E-PM Insert, 0.2362 in W Cutting
QD Grooving Inserts
1229525
MFG #: 6656959
Sandvik Coromant
25.47000
/ ea
- ANSI Code: QD-NK-0600-035E-PM 1030
- Catalog Number: 6656959
- Country of Origin: SE
- Finish: PVD Coated
- Gross Weight Per Pack: 0.0200 lb
- Hand of Insert: Neutral
- ISO Code: QD-NK-0600-035E-PM 1030
- Material Grade: P
- Series: CoroMill® QD
- Shape: CoroMill® QD
- Thickness: 0.1968 in
- Type: P
- Width: Neutral
- Stock Status: NONSTOCK
- Brand: Sandvik Coromant
- Manufacturer: Sandvik Coromant
- Chipbreaker: PM
- Corner Radius: 0.0137 in
- Cutting Direction: Neutral
- Cutting Width: 0.0000
- Insert Size: 6 mm
- Insert Style: QD-N..E-PM
- Lead Angle: 1030
- Manufacturer's Grade: 1030
- Material: Carbide
- Maximum Depth of Cut: PVD
- Rake: 5 mm
- Features
| 7 deg clearance |
| 20 life cycle state |
| 0 deg body machine side |
| 0.005 mm W cutting lower tolerance |
| 0.055 mm W cutting upper tolerance |
| Medium operation |
| Concave clamping |
| E cutting edge condition |
| 1-side cutting |
| 0.07 - 0.1 mm/r cutting feed |
| 7 insert mounting style code |
| K insert seat size code |
| E tolerance class insert |
