RAB Lighting WP2H150QT Outdoor Wallpack, 1 ED17 Lamp, 185 W Fixture, 120/277 VAC, Polyester Powder Coated Housing
Outdoor Wallpacks
179939
MFG #: WP2H150QT
RAB
260.74000
/ ea
- Alternate Catalog Number: 1981318286
- Amperage Rating: 1.6/1.1/0.9/0.8/0.7/0.6/0.5 A
- Application: Outdoor
- ARRA Compliant: N
- Average Life: 10000 hr
- Ballast Type: Constant Wattage Autotransformer (CWA) HPF Quad Tap
- Buy American Compliant: N
- Catalog Number: WP2H150QT
- Country of Origin: CN
- Currency: USD
- Dimensions: 9 in H x 14 in W x 7-1/4 in D
- EU RoHS Indicator: N
- Finish: Bronze
- Gross Weight Per Pack: 17.7800 lb
- Gross Weight per Pack Metric: 8.06
- Gross Weight UOM Metric: kg
- Housing Material: Die Cast Aluminum
- Lamp Base Type: Medium
- Lamp Wattage: 150 W
- Lens Type: Tempered Glass
- Lumens: 12500 Lumens
- Mounting: Wall
- Mounting Type: Wall
- Series: WP2
- Standards: UL Listed
- Type: HID
- UNSPSC: 39111503
- UPC 11: 01981318286
- UPC 12: 019813182865
- Wattage: 150 W
- Stock Status: NONSTOCK
- Brand: RAB
- Manufacturer: RAB Lighting Inc.
- Fixture Wattage: 185 W
- Housing Finish: Bronze
- Lamp Type: ED17
- Voltage Rating: 120/208/240/277 VAC
- Number Of Lamps: 1
RAB Outdoor Wallpack, 120/277 VAC, 185 W Fixture, 1.1/1.6/0.5/0.7 A, ED17 Lamp, 150 W Lamp, Medium Lamp Base, 1 Lamp, 10000 hr Average Life, Bronze Light, CWA/HPF/Quad Tap Ballast, Tempered Glass Lens, 12500 Lumens, Surface Mount, Aluminum Housing, Polyester Powder Coated Housing, 9 in H x 14 in W x 7-1/4 in D
- Brochure URL - led-wallpacks-wp123-premium(Brochure URL)
- http://www.rabweb.com(Seller Home Page URL)

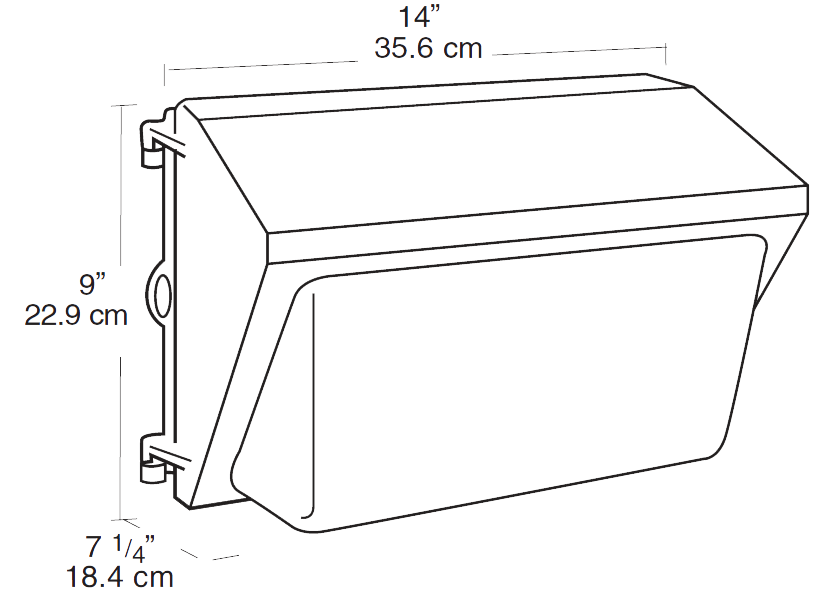

- Line Drawing URL - wp2g_2.png(Line Drawing URL)
- Spec Sheet URL - WP2H150QT(Spec Sheet URL)
- Tech Drawing URL - wp2g_2.png(Tech Drawing URL)
- Video - https://www.youtube.com/embed/GQ-TTqLz7v0(Video)
- Warranty URL - Website_Terms_of_Use.pdf(Warranty URL)
- Applications
- Features
| OUTDOOR |
| HID |
| Drilling template for easy box mounting |
| Silicone gasket remains in-place during re-lamping |
| Top, side and back conduit openings |
| 1/2 in NPS tapped holes top, both sides and back for conduit or photocontrol |
| Hinged refractor frame |
| Continuous silicone rubber gasket |
| Specular anodized aluminum, removable for installation |
| Symmetrical light pattern maximizes distance between fixtures reflector |
| Our environmentally friendly polyester powder coatings are formulated for high-durability and long-lasting color, and contains no VOC or toxic heavy metals |
| Prismatic optics designed to minimize glare and throw light down and out |
| Heat-resistant borosilicate glass |
| 68 Lumens/W efficacy at lamp, 81% efficacy at ballast |
| 1.1/1.6 A at 120 VAC, 0.6/0.9 A at 240 VAC, 0.5/0.8 A at 240 VAC, 0.5/0.7 A at 277 VAC |
