Siemens 6ES73051BA800AA0 SIMATIC Power Supply, 24/110 VDC Input, 24 VDC Output, 48 W, 2.4/0.6 A, DIN Rail Mount
DC Power Supplies
481067
MFG #: 6ES73051BA800AA0
Siemens
705.00000
/ ea
- Alternate Catalog Number: 6ES7305-1BA80-0AA0
- ARRA Compliant: C
- Buy American Compliant: C
- Catalog Number: 6ES73051BA800AA0
- Country of Origin: RO
- Currency: USD
- Depth: 120 mm

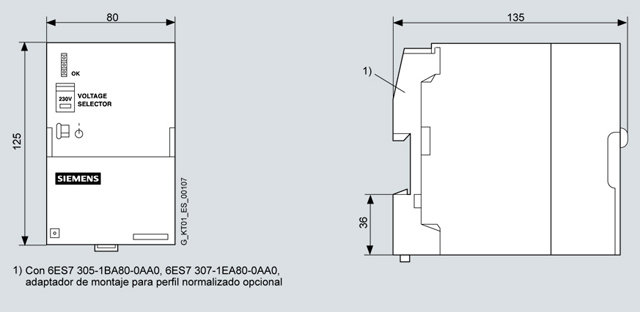

- Dimensions: 125 mm H x 80 mm W x 120 mm D
- EU RoHS Indicator: C
- Gross Volume Per Pack: 114.75
- Gross Volume UOM: in
- Gross Weight Per Pack: 1.7930 lb
- Gross Weight per Pack Metric: 0.81
- Gross Weight UOM Metric: kg
- Harmonization Tariff Schedule Code: 8504409540
- Height: 3.3500 in
- Height [Metric]: 8.5090 cm
- Input Current: 0.6/2.4
- Length: 6.6900 in
- Length [Metric]: 16.9926 cm
- Output Current: 2
- Power Dissipation: 16
- Returnable: Y
- Specifications: Screw Terminal, Rail Mount
- Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantCSA C22.2 No. 142 CertifiedUL 508 File No. E143289
- Temperature Rating: -25 to 70
- Type: Regulated
- UNSPSC: 39121026
- UPC 11: 66264320937
- UPC 12: 662643209372
- Width: 5.1200 in
- Width [Metric]: 13.0048 cm
- Stock Status: NONSTOCK
- Brand: Siemens
- Manufacturer: Siemens
- Amperage Rating: 2 A
- Input Voltage: 24 to 110 VDC
- Mounting Type: DIN Rail
- Output Voltage: 24 VDC
- Power Rating: 48 W
- Brochure URL - ID-BRO-v1-s7300_module_data_manual_en-US_en-US.pdf(Brochure URL)
- Brochure URL - s7300_module_data_manual_en-US_en-US.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_310520dc5005715fd56d055433b5558623c0818e0ef43d99ab35ab1f91ee4ee9.pdf(Catalog URL)
- http://www.sea.siemens.com(Seller Home Page URL)
- Line Drawing URL(Line Drawing URL)
- Spec Sheet URL - DatasheetService?format=PDF&caller=EGH&mlfbs=6ES73051BA800AA0&language=en(Spec Sheet URL)
- Spec Sheet URL - DatasheetService?format=PDF&caller=EGH&mlfbs=6ES7305-1BA80-0AA0&language=en(Spec Sheet URL)
- Spec Sheet URL - DatasheetService?format=PDF&caller=PDPS&mlfbs=6ES7305-1BA80-0AA0&language=en(Spec Sheet URL)
- Tech Drawing URL - 10991_XL18JN4GVEIH69UC.jpg(Tech Drawing URL)
- User Manual URL - man(User Manual URL)
- Video - http://www.automation.siemens.com/bilddb/download.aspx?reqInsID=407442(Video)
- Features
| Features: Protection and monitoring: Output overvoltage protection additional control loop, shutdown at 30 V, automatic restart, characteristic feature of the output/short-circuit protected, short-circuit protection- electronic shutdown, automatic restart |
| Screw terminal |
| IP20 degree of protection |
| 75% efficiency |
| -25 to 70 deg C |
| 2 A output |
| Short term power failure backup |
| Output voltage 24 V DC, stabilized, short circuit-proof, open circuitproof |
| Parallel connection of two power supplies for enhanced performance |
| 2.4 A at 24 VDC, 0.6 A at 110 VDC |
