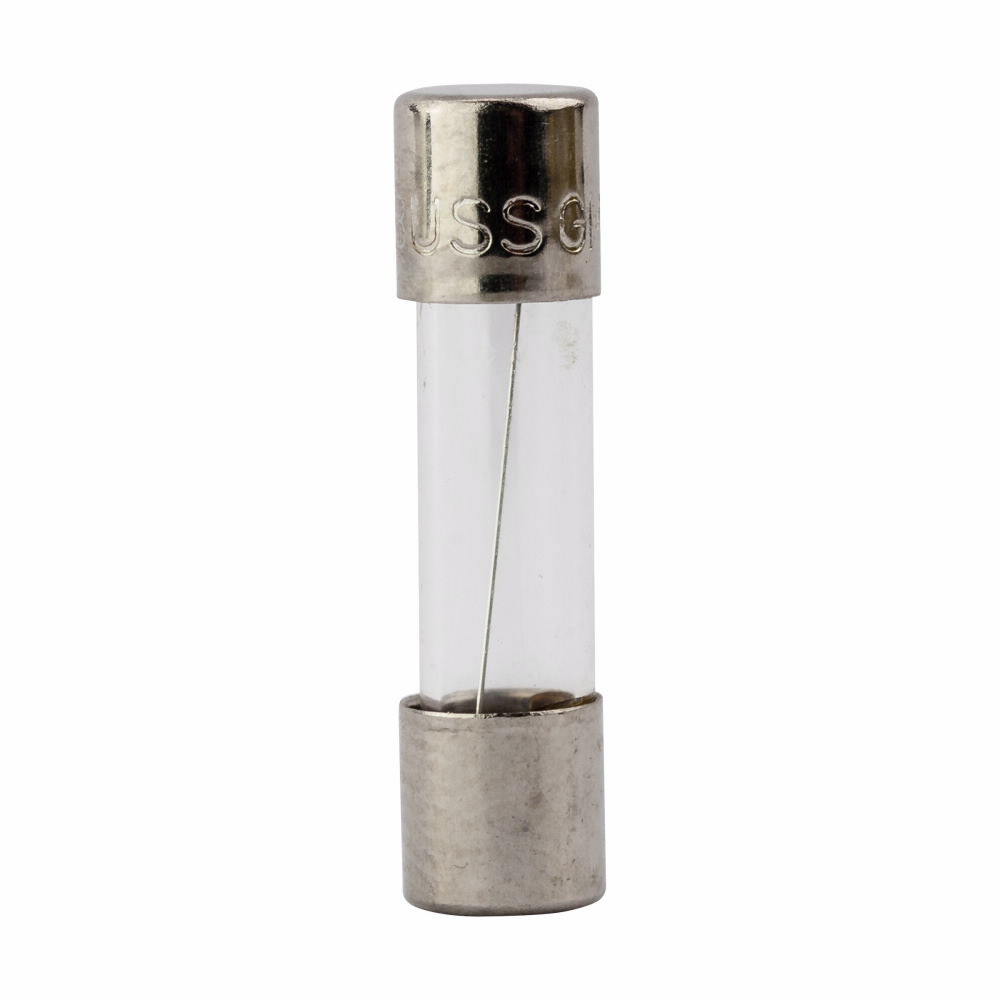

Bussmann GMA Fast Acting Fuse, 500 mA, 250 VAC, 35 A Interrupt, Cylindrical Body
Fast Acting Fuses
1302796
MFG #: BK/GMA-500-R
Bussmann
200.33000
/ ea
- Application: Ind Facilities & Factories - Facility: Safety and Security Systems
- ARRA Compliant: C
- Body Size: 5 mm Dia x 20 mm L
- Buy American Compliant: C
- Catalog Number: BK/GMA-500-R
- Connection: Ferrule end x ferrule end
- Country of Origin: CN
- Currency: USD
- Element: Single
- EU RoHS Indicator: C
- Gross Weight Per Pack: 4.59225 lb
- Gross Weight per Pack Metric: 0.00
- Gross Weight UOM Metric: kg
- Harmonization Tariff Schedule Code: 8536100020
- Height: 1.93 in
- Height [Metric]: 4.8999 cm
- Indicating|Non~Indicating: Non-Indicating
- Length: 5.91 in
- Length [Metric]: 15.0000 cm
- Material: Glass tubeNickel-plated brass end cap construction
- Mounting Type: Holder
- Rejection|Non~Rejection: Non-Rejection
- Response Time: 60 min at 135%, 2 min at 200% s
- Series: GMA
- Size: 5 mm Diameter X 20 mm Length
- Standard: RoHS Compliant,CE Marked
- Standards: ARRABuy American Act and RoHS CompliantUL 248-14 Guide JDYXUL File No. E19180CSA Class 1422-01CSA File No. 53787CE Certified
- Sub Brand: Bussmann Series
- Terminal Type: Ferrule
- Type: Fast-Acting Fuse
- UNSPSC: 39121607
- UPC 11: 05171264735
- UPC 12: 051712647359
- Width: 4.33 in
- Width [Metric]: 11.0000 cm
- Stock Status: NONSTOCK
- Brand: Bussmann
- Manufacturer: Eaton
- Amperage Rating: 500m A
- Body Type: Cylindrical
- Interrupt Rating: 35 AIC at 250 Vac10 kAIC at 125 Vac
- Voltage Rating: 250 Vac, 32 Vdc (self certified) VAC
- Brochure URL - COBUSSE01827_61.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_f746d1dbd96e1e06b56c6504da6c0f719745066f6f1605c5d77f5447a103751a.pdf(Catalog URL)
- http://www.bussmann.com(Seller Home Page URL)
- Spec Sheet URL - 10973_G8XYQJU9K2DPOR46.pdf(Spec Sheet URL)
- Tech Drawing URL - bus-ele-cat-5084-full-line-retail.pdf(Tech Drawing URL)
- Applications
- Features
| Ind Facilities & Factories - Facility: Safety and Security Systems |
| Low Breaking Capacity, Interrupt Rating 35 Amp at 250 Vac, 10 kA at 125 Vac, Material Glass Tube, Nickel Plated Brass Endcap, ROHS Complaint, Packag |
| Fast acting for maximum component protection |
| 35 A at 250 VAC, 10 kA at 125 VAC interrupt rating |
| 60 min maximum at 135%, 2 min maximum at 200% response time |
| 230 mV maximum voltage drop |
| Designed to UL/CSA 248-14 |
| Glass body, nickel plated brass end cap |
| 60 min maximum at 1.35 2 min maximum at 200% response time |
| 10000 A at 12 VAC interrupting rating |
| 100 pieces of fuses packed into a cardboard carton |
