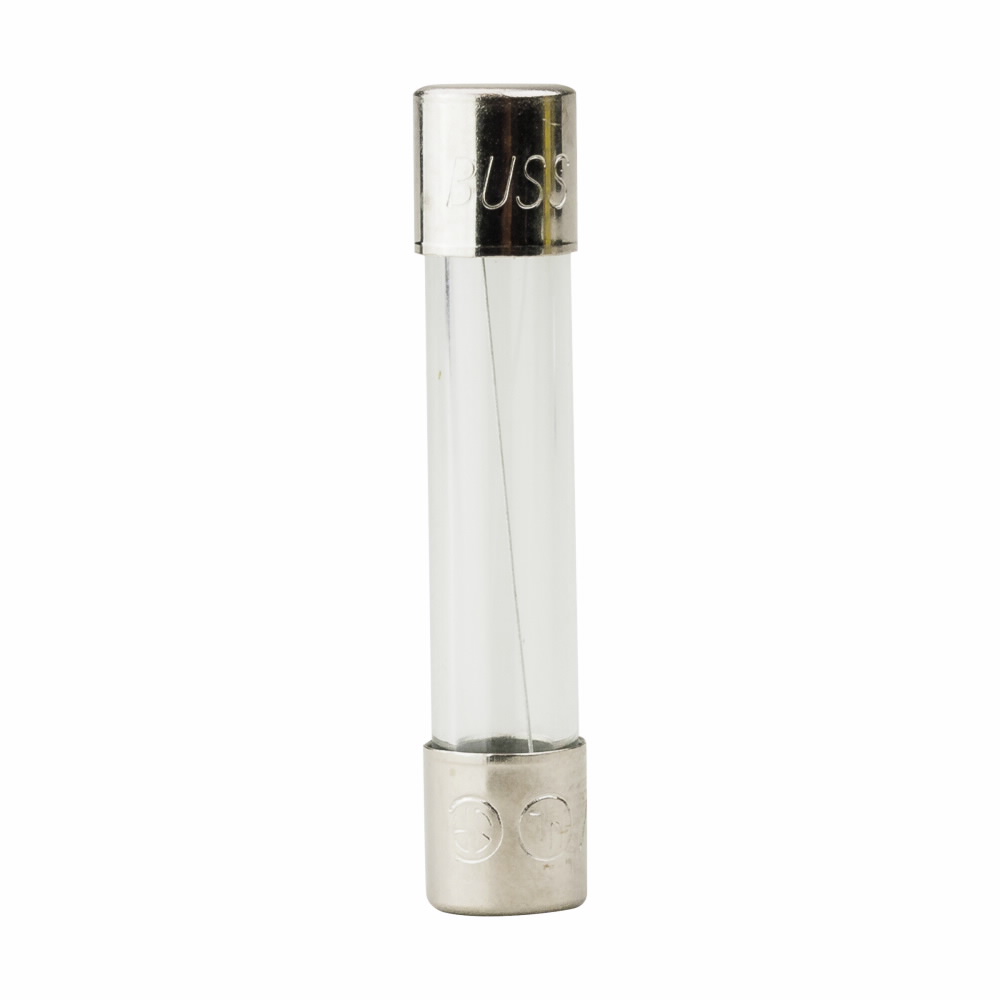

Bussmann® AGC-3-1/2-R AGC Fast Acting Electronic Fuse, 3.5 A, 250 VAC, 200 A, Cylindrical Body
Fast Acting Fuses
830556
MFG #: AGC-3-1/2-R
Bussmann
117.17000
/ ea
- Alternate Catalog Number: AGC-3-1/2-R
- Application: Ind Facilities & Factories - Facility: Safety and Security Systems
- ARRA Compliant: C
- Body Size: 1/4 in Dia x 1-1/4 in L
- Body Style: Cylindrical
- Buy American Compliant: C
- Catalog Number: AGC-3-1/2-R
- Connection: Ferrule end x ferrule end
- Country of Origin: TW
- Currency: USD
- Element: Single
- EU RoHS Indicator: C
- Gross Weight Per Pack: 0.0100 lb
- Gross Weight per Pack Metric: 0.00
- Gross Weight UOM Metric: kg
- Harmonization Tariff Schedule Code: 8536100040
- Height: 0.32 in
- Height [Metric]: 0.8179 cm
- Indicating|Non~Indicating: Non-Indicating
- Length: 1.62 in
- Length [Metric]: 4.1275 cm
- Material: Glass tubeNickel-plated brass end cap construction
- Mounting Type: Holder
- Rejection|Non~Rejection: Non-Rejection
- Response Time: 60 min at 135%, 120 sec at 200% s
- Series: AGC
- Size: 1/4 In Diameter X 1-1/4 In Length
- Standard: CE Marked,RoHS Compliant
- Sub Brand: Bussmann Series
- Terminal Type: Ferrule
- Type: Fast-acting glass tube fuse
- UNSPSC: 39121607
- UPC 11: 05171265512
- UPC 12: 051712655125
- Width: 1.38 in
- Width [Metric]: 3.4925 cm
- Stock Status: NONSTOCK
- Brand: Bussmann
- Manufacturer: Eaton
- Amperage Rating: 3.5 A
- Interrupt Rating: 10 kAIC at 125 Vac
- Voltage Rating: 250 Vac, 32 Vdc (self certified) VAC
World's leading supplier of fuses and fusible protection systems, Bussmann continues its 88-year history of blazing new trails of innovative technologies. Maker of the industry's first truly global product line, each item is backed by an efficient worldwide network of distribution, customer service and technical support. Bussmann products include the most extensive circuit protection solutions approved for use in a variety of major standards: UL, CSA, IEC. Not to mention both European (DIN, British Standard) and North American styled fuses for a wide range of applications: industrial motor protection, power conversion, medium voltage, power distribution, telecommunications network equipment, electronics, and automotive.
- Catalog URL - Edison_S506_15_R_Catalog.pdf(Catalog URL)
- http://www.bussmann.com(Seller Home Page URL)
- Seller Home Page URL - bussmann.html(Seller Home Page URL)
- Spec Sheet 1 URL - Edison_AGC_1_R_Specification_Sheet_1.pdf(Spec Sheet 1 URL)
- Spec Sheet URL - 10973_KIDOWF7QERX2VH5G.pdf(Spec Sheet URL)
- Spec Sheet URL - 2-R(Spec Sheet URL)
- Tech Drawing URL - 10973_T6DFRZEI1HOW20K8.pdf(Tech Drawing URL)
- Tech Drawing URL - Bus_Elx_DS_OC-2543_AGC_Series.pdf(Tech Drawing URL)
- Applications
- Features
Ind Facilities & Factories - Facility: Safety and Security Systems |
Interrupt Rating 100 Amp at 250 Vac, 10000 Amp at 250 Vac, Material Glass Tube, Nickel Plated Brass Endcap, ROHS Compliant |
Fast acting for maximum component protection |
Wide amp/volt ratings allow versatility of protecting electronic circuits |
100 A at 250 VAC, 10 kA at 250 VAC interrupt rating |
60 min maximum at 135%, 120 sec maximum at 200% response time |
60 min maximum at 135% of response time |
Size 3AG |
AC interrupting rating of 10 kA at 125 V |
