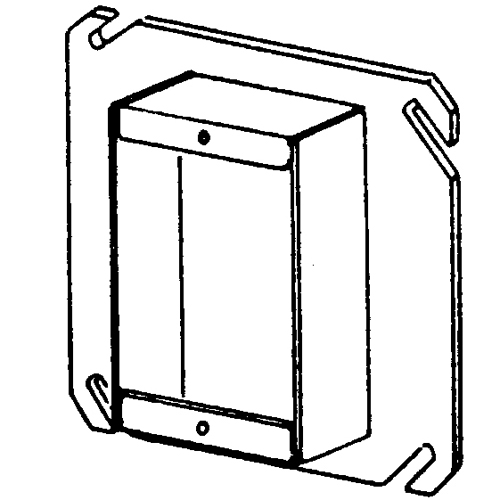

Appleton® 846-150 Square Tile Cover, 4 in L x 4 in W x 1-1/2 in D, Steel
Steel Covers
18164
MFG #: 846-150
Appleton™
5.51000
/ ea
- ARRA Compliant: Y
- Buy American Compliant: Y
- Capacity: 11 in³
- Catalog Number: 846-150
- Country of Origin: US
- Cubic Capacity: 11 CU-IN in³
- Currency: USD
- EU RoHS Indicator: C
- Finish: Galvanized
- Gross Weight Per Pack: 0.4900 lb
- Gross Weight per Pack Metric: 0.22
- Gross Weight UOM Metric: kg
- Height: 0.35 in
- Height [Metric]: 8.8392 mm
- Length [Metric]: 28.9560 cm
- Number of Gangs: 1
- Shape: Squared
- Size: 4 X 4 X 1.5 IN in
- Standard: UL Standard 514A; UL Listed E2527; Nema OS-1
- Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantNEMA OS-1UL 514E2527
- Sub Brand: ETP
- Type: 1-Device Raised
- UNSPSC: 39121304
- UPC 11: 68785576845
- UPC 12: 68785576845
- Width [Metric]: 23.1140 cm
- Stock Status: NORMALLY STOCKED
- Brand: Appleton™
- Manufacturer: Appleton
- Depth: 1-1/2 in
- Length: 11.40 in
- Material: Steel
- Width: 9.10 in
- Catalog URL - Appleton_2510_Catalog.pdf(Catalog URL)
- Compliance Cert URL(Compliance Cert URL)
- Spec Sheet URL - switch-outlet-appozg.pdf(Spec Sheet URL)
- http://www.egseg.com(Seller Home Page URL)
- https://www.appleton.emerson.com/(Seller Home Page URL)
- Seller Home Page URL - home.aspx(Seller Home Page URL)
- Warranty 1 URL - Appleton_1200_Warranty.pdf(Warranty 1 URL)
- Warranty URL - Appleton_1200_Warranty.pdf(Warranty URL)
- Features
| 4 IN Square, 1 1/2 IN Raised Single Device Tile Cover |
| Boxes with concentric or eccentric knockouts are suitable for bonding without any additional bonding means where used in circuits above or below 250 Volts |
| Unless otherwise noted all concentric or eccentric knockouts are 1/2 - 3/4 in combinations |
| Single and double gang metallic outlet and switch boxes are acceptable for use in two-hour fire rated walls |
| Groundskeeper raised ground feature on boss inside box provides one or two NO.10-32 tapped hole, allowing a 3/8 in long green ground screw to be threaded into box without contacting mounting surface |
| Other boxes provided with flat ground tapped hole, except plenum boxes |
| 1-1/2 in raise single device tile cover |
| Mud ring |
| It has galvanized finish for resistance against corrosion |
| G60 pre-galvanized finishDrawn construction |
