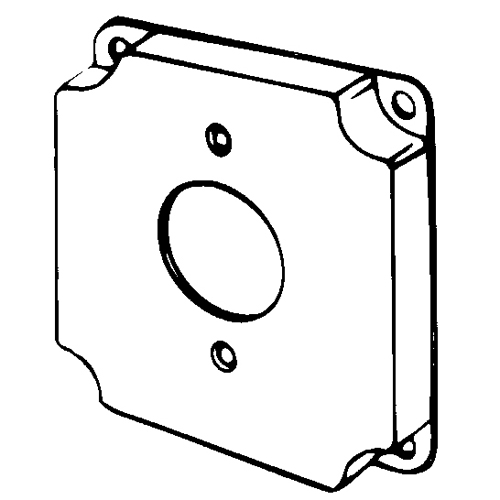

Appleton® 8363 Square Box Cover, 4 in L x 4 in W x 1/2 in D, Steel
Steel Covers
18209
MFG #: 8363
Appleton™
4.01000
/ ea
- ARRA Compliant: Y
- Brand: Appleton™
- Buy American Compliant: Y
- Capacity: 7 in³
- Catalog Number: 8363
- Country of Origin: US
- Cover Type: Single Receptacle
- Cubic Capacity: 7 CU-IN in³
- Currency: USD
- Depth: 1/2 in
- EU RoHS Indicator: C
- Finish: Galvanized
- Gross Weight Per Pack: 0.3600 lb
- Gross Weight per Pack Metric: 0.16
- Gross Weight UOM Metric: kg
- Height: 0.30 in
- Height [Metric]: 7.6200 mm
- Length: 9.00 in
- Length [Metric]: 22.8600 cm
- Manufacturer: Appleton
- Material: Steel
- Mounting Type: Surface
- Number of Gangs: 1
- Shape: Squared
- Size: 4 X 4 X 0.5 IN in
- Standard: UL Standard 514A; UL Listed E2527
- Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantNEMA OS-1/FB-1UL 514E2527
- Stock Status: NORMALLY STOCKED
- Sub Brand: ETP
- Type: Raised
- UNSPSC: 39121304
- UPC 11: 68785577475
- UPC 12: 68785577475
- Width: 9.00 in
- Width [Metric]: 22.8600 cm
- Catalog URL - Appleton_2510_Catalog.pdf(Catalog URL)
- Compliance Cert URL - Appleton_2510_Compliance_Certificate.pdf(Compliance Cert URL)
- Seller Home Page URL - home.aspx(Seller Home Page URL)
- http://www.egseg.com(Seller Home Page URL)
- https://www.appleton.emerson.com/(Seller Home Page URL)
- Spec Sheet URL - 11301_MGJL90OKAZWHVCEX.pdf(Spec Sheet URL)
- Warranty 1 URL - Appleton_1200_Warranty.pdf(Warranty 1 URL)
- Warranty URL - Appleton_1200_Warranty.pdf(Warranty URL)
- Spec Sheet URL - 4-square-boxes-extension-rings-covers-catalog-pages-en-724292.pdf(Spec Sheet URL)
- Features
| 4 IN Square, 1/2 IN Raised Cover for One Single Flush Receptacle 1 13/32 IN DIA |
| Boxes with concentric or eccentric knockouts are suitable for bonding without any additional bonding means where used in circuits above or below 250 Volts |
| Unless otherwise noted all concentric or eccentric knockouts are 1/2 - 3/4 in combinations |
| Single and double gang metallic outlet and switch boxes are acceptable for use in two-hour fire rated walls |
| Groundskeeper raised ground feature on boss inside box provides one or two NO.10-32 tapped hole, allowing a 3/8 in long green ground screw to be threaded into box without contacting mounting surface |
| Other boxes provided with flat ground tapped hole, except plenum boxes |
| 1/2 in raise for single flush receptacle |
