Appleton® Form 85™ Unilet® LR-200ACGA Type LR Conduit Body With Assembled Cover and Gasket, 2 in Hub, 85, 70 cu-in
Type LR Conduit Fitting Body
928758
MFG #: LR200ACGA
Appleton™
86.61000
/ ea
- Application: For Use With Rigid Steel, Rigid Aluminum Conduit, IMC And EMT
- ARRA Compliant: N
- Buy American Compliant: N
- Catalog Number: LR200ACGA
- Connection: Tapered Female Threaded
- Connection Type: Tapered FNPT
- Country of Origin: IN
- Currency: USD
- Dimensions: 10.19 in L x 4.19 in W x 4.56 in H
- Enclosure: NEMA FB-1/FB-2.10
- EU RoHS Indicator: N
- Gross Weight Per Pack: 2.3500 lb
- Gross Weight per Pack Metric: 1.07
- Gross Weight UOM Metric: kg
- Height: 4.20 in
- Height [Metric]: 10.6680 cm
- Length: 11.80 in
- Length [Metric]: 29.9720 cm
- Mounting Type: Surface
- Number of Hubs: 2
- Standard: UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1
- Standards: UL 514A/514B/E2527CSA C22.2 No. 18.3/065183
- Sub Brand: UNILETS
- Type: Type LR
- UNSPSC: 39131708
- UPC 11: 78138182610
- UPC 12: 781381826105
- Width: 5.10 in
- Width [Metric]: 12.9540 cm
- Stock Status: NONSTOCK
- Brand: Appleton™
- Manufacturer: Appleton
- Capacity: 70 in³
- Finish: Epoxy Powder Coated
- Form: 85
- Hub Size: 2 in
- Material: Pressure Cast Aluminum
- Catalog URL - Appleton_BC100_A_Brochure.pdf(Catalog URL)
- http://www.appletonelec.com(Seller Home Page URL)
- https://www.appleton.emerson.com/(Seller Home Page URL)

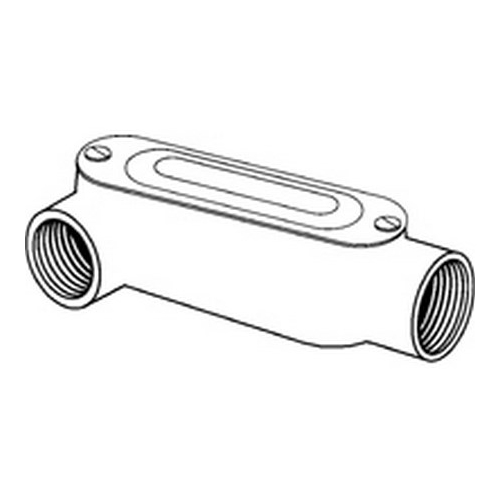

- Line Drawing URL - 11043_Type_LR-ACGLINE.jpg(Line Drawing URL)
- Line Drawing URL - Type_LR-ACGLINE.jpg(Line Drawing URL)
- Seller Home Page URL - appleton(Seller Home Page URL)
- Spec Sheet URL - 11043_98YRZCTXKELHP2OG.pdf(Spec Sheet URL)
- Spec Sheet URL - SPE_AEC_MC007_Form_85_Unilet_Conduit_Outlet_Bodies.pdf(Spec Sheet URL)
- Warranty URL - 11043_AFRVNTEYP0B9JHS4.pdf(Warranty URL)
- Warranty URL - appleton-grp-terms-and-conditions.pdf(Warranty URL)
- Applications
- Features
| For Use With Rigid Steel, Rigid Aluminum Conduit, IMC And EMT |
| Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Smooth, rounded integral bushings in hubs protect conductor insulation; Roomy interiors: more wiring space; Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity; Form 85 copperfree aluminum Unilets are lightweight, self oxidizing, self-renewing and offer a high corrosion resistance; Lightweight aluminum facilitates shipping, handling and installing; Sizes with flat-back design ideal where fitting is mounted flat against surface; Internal volume and maximum wire capacity clearly marked on castings; Threaded style is raintight when used with casketed covers; Wiring capacity: 70 CU-IN as per NEC 314.16(A) |
| Serve as pulling fittings |
| Make bends in conduit system |
| Provide openings for splicing, connect and change direction of conduit runs |
| Allow connections for branch runs |
| Permit access to conductors for maintenance |
| Smooth, rounded integral bushing in each hub protects conductor insulation |
| Roomy interiors, more wiring space |
| Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity |
| Form 85™ copper free aluminum UNILETS™ are lightweight, self oxidizing, self-renewing and offer a high corrosion resistance |
| Lightweight aluminum facilitates shipping, handling and installing |
| Sizes with flat back design ideal where fitting is mounted flat against surface |
| Internal volume and maximum wire capacity clearly marked on castings |
| Threaded style is raintight when used with casketed covers |
| Pressure cast aluminum body |
| Tapered FNPT connection |
