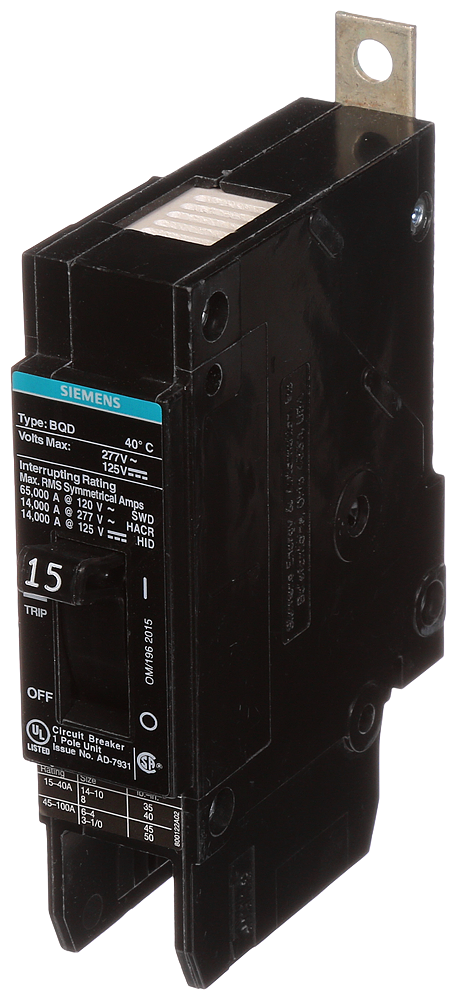

Siemens Speedfax™ BQD115 Molded Case Circuit Breaker, 277 VAC, 15 A, 14 kA Interrupt, 1 Pole, Thermal Magnetic Trip
Molded Case Circuit Breakers
27810
MFG #: BQD115
Siemens
114.83000
/ ea
- Actuator Type: Toggle
- Alternate Catalog Number: US2:BQD115
- ARRA Compliant: C
- Buy American Compliant: C
- Catalog Number: BQD115
- Color: Black
- Connection Type: Low Tab
- Country of Origin: MX
- Currency: USD
- Dimensions: 4 in L x 3 in W x 1 in H
- EU RoHS Indicator: C
- Frame: 100 A
- Frequency Rating: 50/60 Hz
- Gross Volume Per Pack: 23.10
- Gross Volume UOM: in
- Gross Weight Per Pack: 0.5450 lb
- Gross Weight per Pack Metric: 0.25
- Gross Weight UOM Metric: kg
- Harmonization Tariff Schedule Code: 8536200020
- Height: 1.0500 in
- Height [Metric]: 2.6670 cm
- Length: 5.5000 in
- Length [Metric]: 13.9700 cm
- Mounting Type: Panel
- Phase: 1 ph
- Returnable: Y
- Standard: UL489CSA-C22.2IEC60947-2
- Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489CSA C22.2IEC 60947-2
- Temperature Rating: 40 °C
- Type: Type BQD
- UNSPSC: 39121601
- UPC 11: 78364327708
- UPC 12: 783643277083
- Width: 4.0000 in
- Width [Metric]: 10.1600 cm
- Wire Size: 14 to 6 AWG, 12 to 6 AWG
- Stock Status: NONSTOCK
- Brand: Siemens
- Manufacturer: Siemens
- Amperage Rating: 15 A
- Interrupt Rating: 14 kA
- Trip Type: Thermal Magnetic
- Voltage Rating: 277 VAC
- Number Of Poles: 1
- Brochure URL - Siemens-Molded-Case-Circuit-Breakers-GenApp-Catalog-BQD_CQD_Product_Guide.pdf(Brochure URL)
- Catalog URL - Siemens_B215HHNAV_Brochuer_1.pdf(Catalog URL)
- http://www.sea.siemens.com(Seller Home Page URL)
- Spec Sheet 1 URL - ID-SPE-v2-SIE_IS_BQD_BoltOn_800118b.pdf(Spec Sheet 1 URL)
- Spec Sheet URL - DatasheetService?format=PDF&caller=PDPS&mlfbs=US2:BQD115&language=en(Spec Sheet URL)
- User Manual URL - man(User Manual URL)
- Features
| PANELBOARD MOUNT |
| 14 to 6 AWG copper, 12 to 6 AWG aluminum wire |
| Low tab connection |
