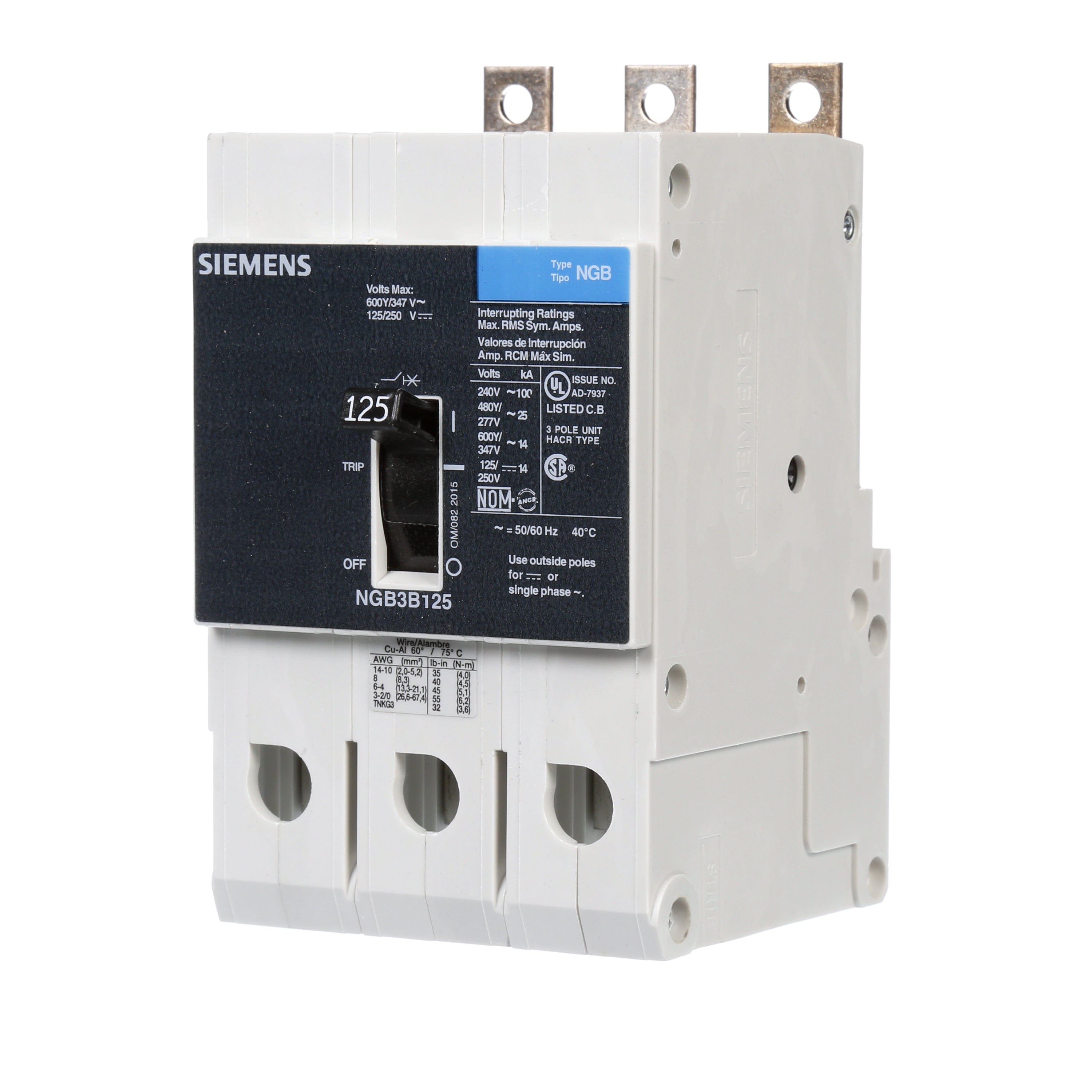

Siemens NGB3B125B Molded Case Circuit Breaker, 347/600 VAC, 125 A, 14 kA Interrupt, 3 Poles, Thermal Magnetic Trip
Molded Case Circuit Breakers
417949
MFG #: NGB3B125B
Siemens
3909.18000
/ ea
- Alternate Catalog Number: US2:NGB3B125B
- ARRA Compliant: C
- Buy American Compliant: C
- Catalog Number: NGB3B125B
- Connection Type: Load Lug
- Country of Origin: MX
- Currency: USD
- Dimensions: 6.9 in L x 4.1 in W x 4.6 in H
- EU RoHS Indicator: C
- Frame: NGB
- Frequency Rating: 50/60 Hz
- Gross Volume Per Pack: 1149.15
- Gross Volume UOM: in
- Gross Weight Per Pack: 2.6050 lb
- Gross Weight per Pack Metric: 1.18
- Gross Weight UOM Metric: kg
- Harmonization Tariff Schedule Code: 8536200020
- Height: 4.9000 in
- Height [Metric]: 12.4460 cm
- Length: 7.1000 in
- Length [Metric]: 18.0340 cm
- Mounting Type: Panel
- Phase: 3 pH
- Returnable: Y
- Standard: UL/CSA/IEC/NOM
- Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantHACR RatedIEC CertifiedUL Listed
- Type: Type NGB Low Voltage
- UNSPSC: 39121601
- UPC 11: 78364341439
- UPC 12: 783643414396
- Width: 5.7000 in
- Width [Metric]: 14.4780 cm
- Wire Size: 4 to 2/0 AWG, 6 to 1/0 AWG
- Stock Status: NONSTOCK
- Brand: Siemens
- Manufacturer: Siemens
- Amperage Rating: 125 A
- Interrupt Rating: 14 kA
- Trip Type: Thermal Magnetic
- Voltage Rating: 600Y/347 VAC
- Number Of Poles: 3
- Brochure URL - Siemens-Molded-Case-Circuit-Breakers-GenApp-Catalog-NGG-Product-Guide.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - SIE-DW_NGB-1-Pole-2-Pole-3-Pole.dwg(Computer~Aided [CAD|BIM] Model URL)
- http://www.sea.siemens.com(Seller Home Page URL)
- Spec Sheet URL - DatasheetService?format=PDF&caller=PDPS&mlfbs=US2:NGB3B125B&language=en(Spec Sheet URL)
- User Manual URL - man(User Manual URL)
- Features
| PANELBOARD MOUNT/BULK PACK |
| 1/0 to 6 AWG copper, 2/0 to 4 AWG aluminum wire range |
| 14 kA at 600Y/347 VAC, 10 kA at 240 VAC interrupt rating |
| Bulk pack |
