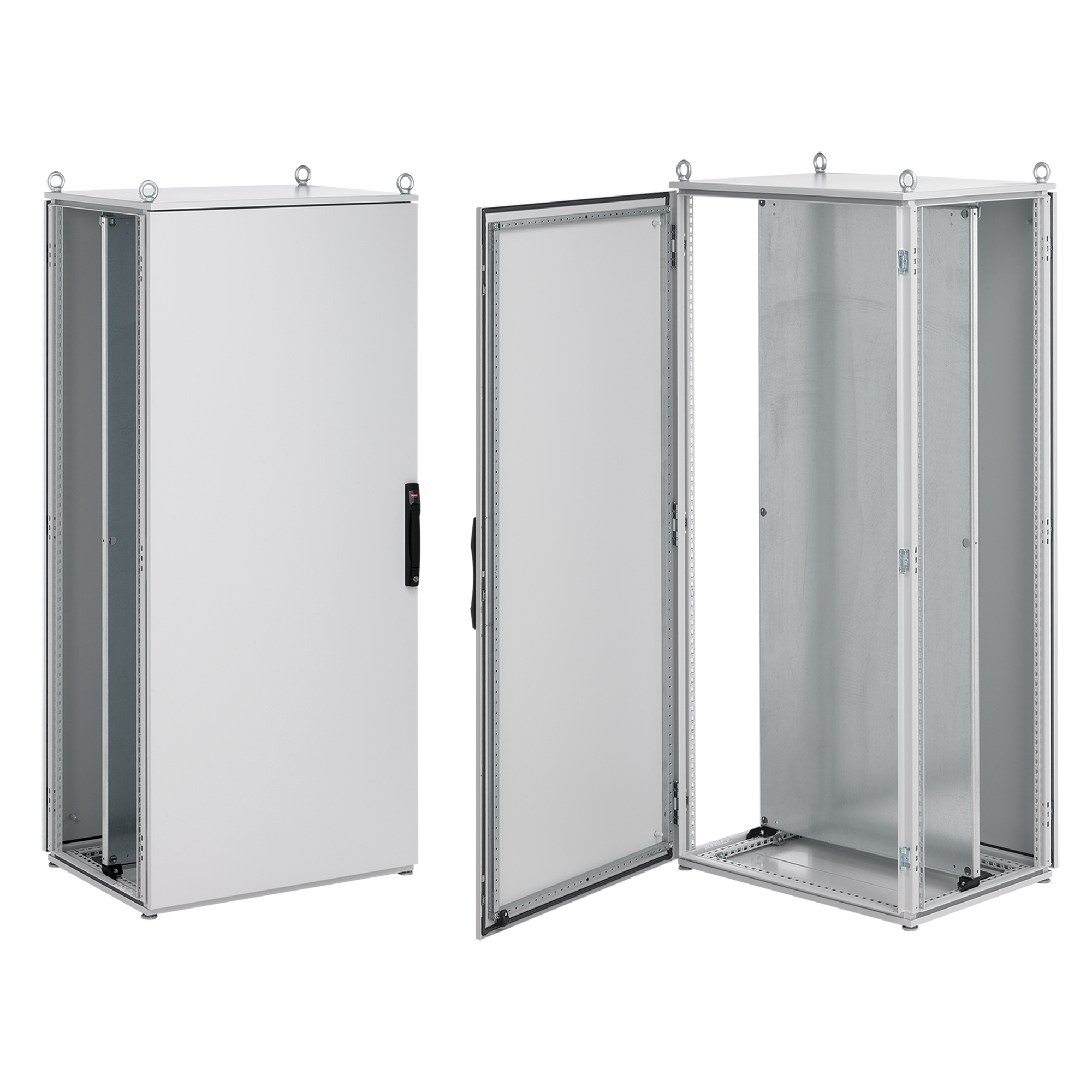

nVent HOFFMAN ProLine™ PP2088 P21 Single Door Modular Industrial Package, 2000 mm L x 800 mm W x 800 mm D, NEMA 12/IP55 NEMA Rating, Steel
Hoffman Modular Enclosures
665044
MFG #: PP2088
nVent HOFFMAN
3364.67000
/ ea
- Catalog URL - Hoffman_PP1466_Catalog.pdf(Catalog URL)
- http://www.hoffmanonline.com(Seller Home Page URL)
- Install Instructions 1 URL - 11015_SQ85LFCZ4PUAY9MG.pdf(Install Instructions 1 URL)
- Spec Sheet URL - Spec-00070.pdf(Spec Sheet URL)
- Tech Drawing URL - stream_document.aspx?rRID=49009&pRID=11171(Tech Drawing URL)
- Warranty URL - terms-of-sale(Warranty URL)
- Applications
- Features
| Controls and Drives; Power Distribution |
| Frames are a roll-formed, robotically welded design made of 12 gauge steel with solid steel, fully welded corners, External sides, covers and doors are 16 or 14 gauge steel, Standard door bars increase strength and rigidity and allow for an extra mo |
| Frames are a roll formed, robotically welded design made of 12 ga steel with solid steel, fully welded corners |
| Frames accommodate the 25 mm DIN standard and include rectangular holes for clip nuts and through holes for use with thread forming screws |
| External sides, covers and doors are 16 or 14 ga steel |
| Seamless foam in place gasket provides a watertight, dust tight seal against moisture and contaminants |
| Gasket and latching system together ensure a solid seal with low closure force |
| Solid front doors equipped with a ProLine™ latching system |
| Flush bezel handle with defeater |
| Reversible hinge, default left hinge, with 130 deg swing |
| Integral frame channels support the full weight of the subpanels |
| Integral frame channels support the full weight of the mounting plates |
| Capped ground studs on door, rear and top panel |
| Galvanized mounting plates |
| PROLINE industrial packages are full-featured, ready-to-use enclosure solutions that make it unnecessary to order each component separately |
| For convenience, a single part number includes a frame, solid front door, solid rear cover, a solid top, a gland plate, lifting eyes and a full subpanel, so that only the side covers need to be ordered separately |
