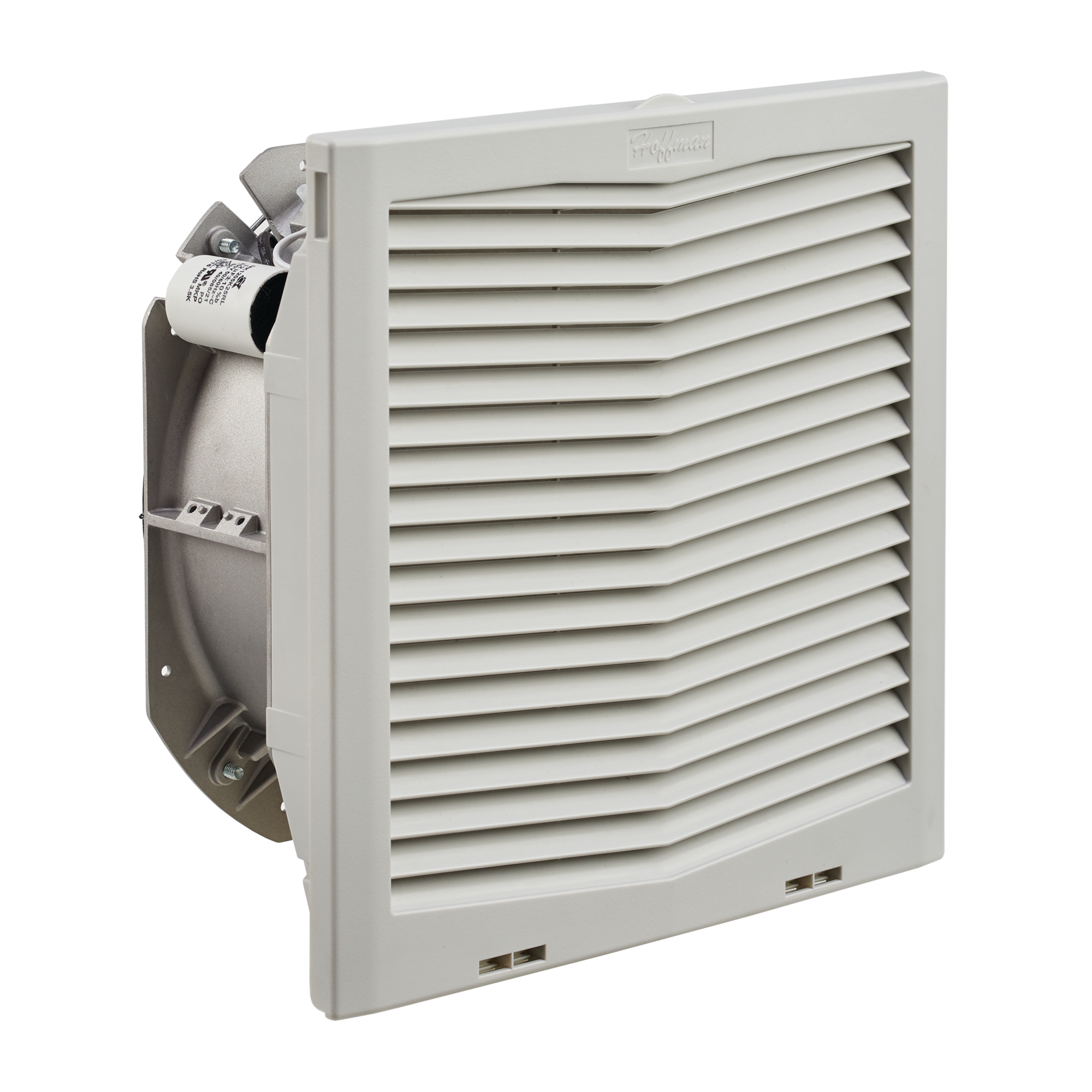

nVent HOFFMAN HF1316414 MCLF Filter Fan, 115 VAC, 0.76/0.88 A, 65/72 W, 395 cfm, NEMA 12/IP54 Enclosure
Enclosure Fans
937700
MFG #: HF1316414
nVent HOFFMAN
519.97000
/ ea
- Catalog URL - Hoffman_HF0416413_Catalog.pdf(Catalog URL)
- http://www.hoffmanonline.com(Seller Home Page URL)
- Install Instructions 1 URL - 11015_NF3I921TC6QP57DO.pdf(Install Instructions 1 URL)
- Install Instructions URL - Hoffman_HF0416413_Instruction_Sheet.pdf(Install Instructions URL)
- Spec Sheet URL - Spec-01170.pdf(Spec Sheet URL)
- Warranty URL - terms-of-sale(Warranty URL)
- Applications
- Features
| Controls and Drives; Power Distribution |
| Click fit design quickly installs into enclosure wall, no tools or screws required |
| Opens with the flick of a finger for easy filter replacement |
| Reverse airflow option on HF13 models available to push/pull air through higher static pressure |
| Standard rope gasket provides proper seal to the enclosure |
| Similar cutout sizes as other filter fan manufacturers |
| Terminal block connections |
| Hinged grille remains attached after opening |
| Optional thermostat available to save energy and extend service life |
| Hinged grille remains attached after opening |
| Size rage from 4 inch (102 mm) to 13 inch (325 mm) |
