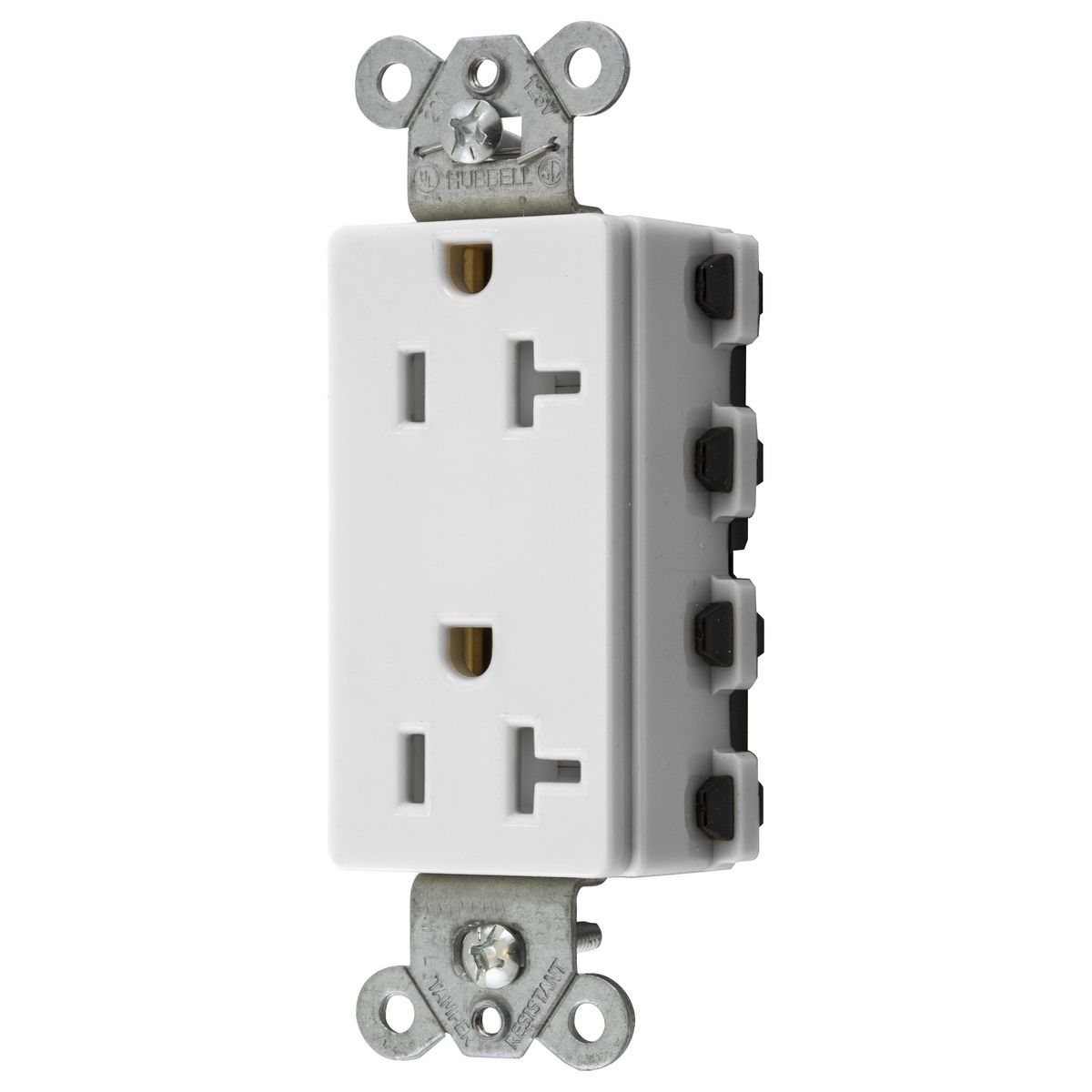

Wiring Device-Kellems SNAPConnect® StyleLine® SNAP2162WTRA Decorator Duplex Extra Heavy Duty Standard Tamper Resistant Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, White
Straight Blade Receptacles
994039
MFG #: SNAP2162WTRA
Hubbell Wiring Device-Kellems
21.88000
/ ea
SNAPConnect® devices offer superior installation efficiency for new construction and renovations, while delivering safe, reliable connections. Instead of conventional wiring methods, SNAPConnect® modular connector is installed during rough-in in lieu of pigtails. Once the walls are up, the protective covering is removed and the terminal is simply snapped into the SNAPConnect® device for a consistent connection every time. Once installed, SNAPConnect® modular design enables simple device change out by maintenance personnel.
- Catalog URL - Wiring_Device_Kellems_BR15AL_Catalog.pdf(Catalog URL)
- http://www.hubbell-wiring.com/(Seller Home Page URL)
- Install Instructions 1 URL - 11456_NHAVYL1K5SJEBT7R.pdf(Install Instructions 1 URL)
- Install Instructions URL - Wiring_Device_Kellems_BR15AL_Installation_Sheet.pdf(Install Instructions URL)
- Spec Sheet URL - 11456_27MY3L18OIH6VUBQ.pdf(Spec Sheet URL)
- Tech Drawing URL - WIRING_SNAP2162WTRA_M12871_ACAD_DRAWING.dwg(Tech Drawing URL)
- Warranty URL - 11456_Y8PS6T0FNOGH3Q75.pdf(Warranty URL)
- Warranty URL - Wiring_WDK_Warranty.pdf(Warranty URL)
- Applications
- Features
| Extra Heavy Duty Specification Grade |
| Quick Connect- SNAPConnect, Tamper-Resistant, USA Product |
| Modular wiring system eliminates screw terminals |
| Speeds installation and trim out |
| Clear polycarbonate terminal housing to inspect contacts |
| Abuse resistant nylon for extra heavy use applications |
| Stainless steel auto ground |
| Aesthetic Style Line® decorator design |
| Audible SNAP, indicates solid connection |
| Fully insulated design |
| Reduces installation time |
