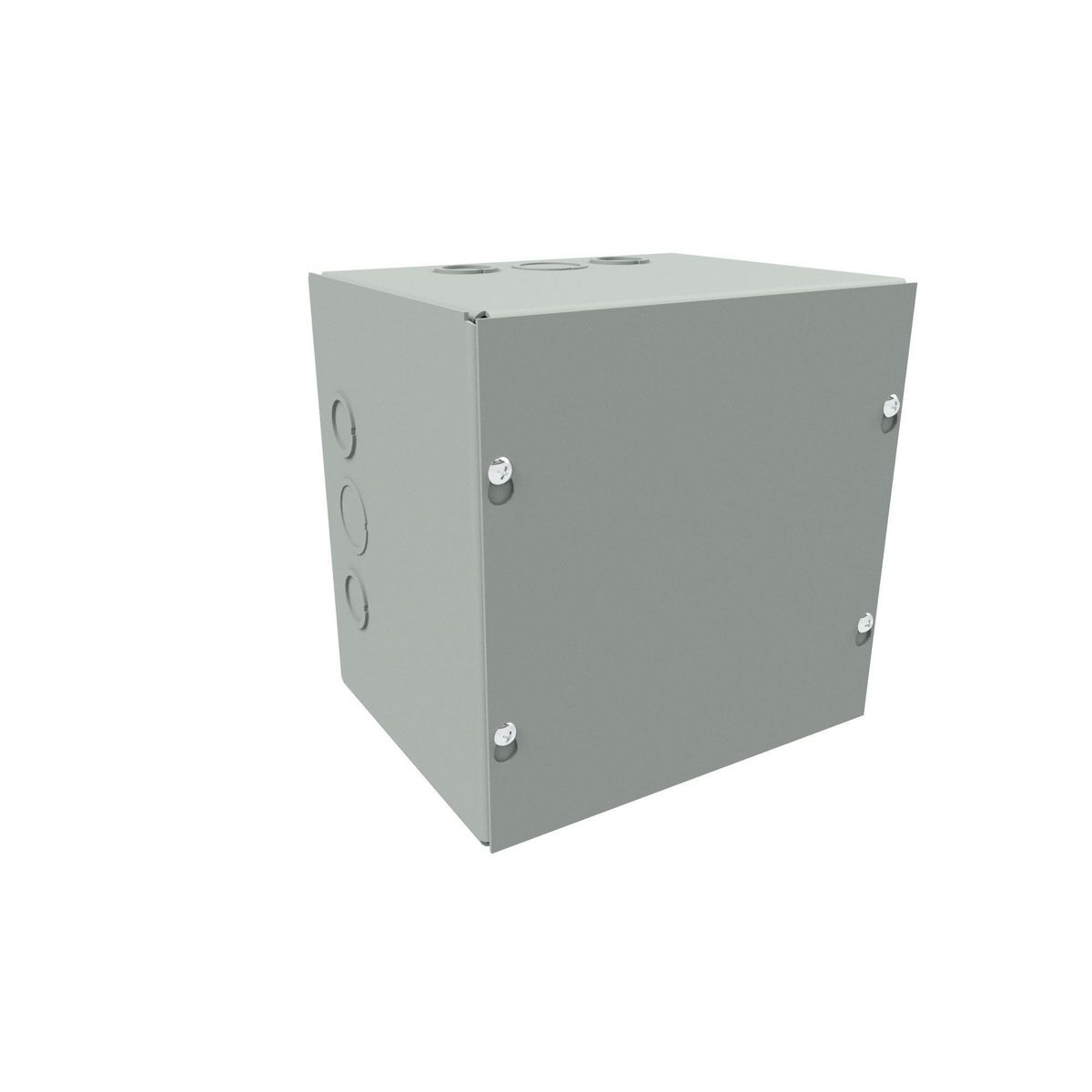

Wiegmann® SC151506 SC PULL BOX,CS,15X15X6
Wall Mount Enclosures
834029
MFG #: SC151506
Wiegmann®
178.07000
/ ea
SC PULL BOX,CS,15X15X6
- Data Sheet 1 URL - Hubbell_SC151506_Data_Sheet.pdf(Data Sheet 1 URL)
- http://www.hubbell-wiegmann.com/(Seller Home Page URL)
- Spec Sheet URL - 11030_NIT2A3ZKPFC504RG.pdf(Spec Sheet URL)
- Tech Drawing URL - HWDSC151506-S.dwg(Tech Drawing URL)
- Safety Data Sheet URL - HCC_SDS.pdf(Safety Data Sheet URL)
- Line Drawing URL - 11030_8RS0AK1Q6VMLTHEU.pdf(Line Drawing URL)
- Warranty URL - Wiegmann_Warranty_Price_Sheet_3-8-2012.pdf(Warranty URL)
- Applications
- Features
| Designed for use as a junction box and pull box in commercial and general industrial applications. Flush covers must be ordered separately for flush mount applications. |
| Fabricated from 16 gauge steel. Flat, removable covers fastened with plated steel screws. Cover design permits easy removal without extracting cover screws. Mounting holes on back of box. Removable concentric knockouts on all four sides. |
| Designed for use as a junction box and pull box in commercial and general industrial applications |
| Flat, removable covers fastened with plated steel screws |
| Cover design permits easy removal without extracting cover screws |
| Mounting holes on back of box |
| Removable concentric knockouts on all four sides of standard enclosures with knockouts |
| ANSI-61 gray polyester powder inside and out finish |
| 15 in H |
| 15 in, 18 in, 24 in, 30 in and 36 in (A-B-A-F-F-A-B-A) W side and 15 in, 18 in, 24 in, 30 in and 36 in (A-B-A-F-F-A-B-A) H side knockout pattern |
| Spot welded construction |
