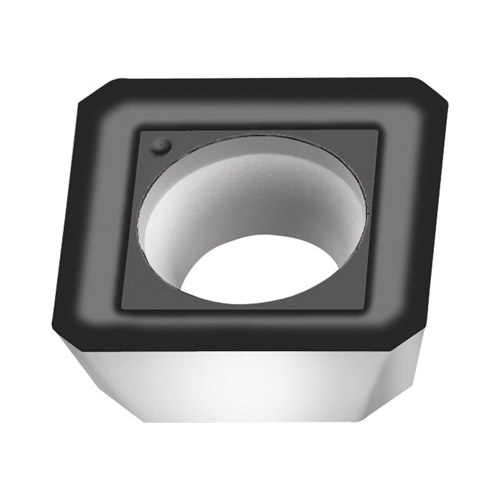

Walter SPMT43AENWSP45S Walter Tiger-tec® Silver 7057792 Positive Single Sided Indexable Milling Insert, SPMT43AEN WSP45S ANSI, Square
SPMT Milling Inserts
PDW~12584876
MFG #: SPMT43AENWSP45S
Walter (Valentine)
16.80000
/ ea
With Tiger-tec® Silver, Walter is offering a world first in coating technology for indexable inserts. The special aluminium oxide layer with optimized microstructure reduces wear during turning, milling and drilling operations, and increases toughness and temperature resistance for significantly higher cutting data.
- Features
| Mechanical post-treatment - unique residual stress condition, increased process reliability|Extremely smooth rake face for optimum tribochemical wear resistance|Silver flank face indicator layer for extremely easy wear detection |
| 0.05 to 0.15 mm inscribed circle tolerance |
| +/-0.13 mm thickness tolerance |
| 1.4 mm width face chamfer |
| 4 cutting edges |
| 40 to 60 deg double countersink hole |
| 45 deg approach |
