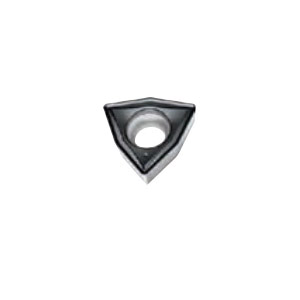

Valenite Tiger-tec® Silver 7077882 Positive Indexable Drilling Insert, WCMT2(1.5)1-E47 WPP20S ANSI, Trigon, 2.38 mm THK
Custom_Product_Images_Illustration
Valenite Tiger-tec® Silver 7077882 Positive Indexable Drilling Insert, WCMT2(1.5)1-E47 WPP20S ANSI, Trigon, 2.38 mm THK
SKUPDW~12585017
MFGR #WCMT040204-E47WPP20S
Your Cost: $20.03/ea
With Tiger-tec® Silver, Walter offers a coating technology for indexable inserts that is unique worldwide, recognizable by the designation key "-S" at the end of the grade description - The special aluminium oxide layer with optimized microstructure reduces wear during turning, milling and drilling operations and increases toughness and temperature resistance at the same time. This enables users to achieve significantly higher cutting data.
With Tiger-tec® Silver, Walter offers a coating technology for indexable inserts that is unique worldwide, recognizable by the designation key "-S" at the end of the grade description - The special aluminium oxide layer with optimized microstructure reduces wear during turning, milling and drilling operations and increases toughness and temperature resistance at the same time. This enables users to achieve significantly higher cutting data.
ANSI Code WCMT2(1.5)1-E47 WPP20S Catalog Number WCMT040204-E47WPP20S Finish CVD Coated Gross Weight Per Pack 1 lb Hand of Insert Right Included Angle 80 deg ISO Code WCMT040204-E47 WPP20S Sub Brand Tiger-tec® Thickness 2.38 mm Type Positive Stock Status NONSTOCK Brand Walter (Valentine) Manufacturer Walter Chipbreaker E47 Corner Radius 0.4 mm Inscribed Circle 6.35 mm Insert Style WCMT Manufacturer's Grade WPP20S Material Carbide Material Grade K/M/P/S Shape Trigon E47 Geometry - The universal one Flexible universal geometry for almost all cutting depths 40 to 60 deg double countersink hole WPP20S - Free machining steels, long cutting times and maximum wear resistance 0.08 to 0.2 mm cutting edge length tolerance +/-0.13 mm thickness tolerance 0.05 to 0.15 mm inscribed circle tolerance 0.169 in cutting edge length 15 deg rake 7 deg clearance
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ANSI Code | WCMT2(1.5)1-E47 WPP20S |
| Catalog Number | WCMT040204-E47WPP20S |
| Finish | CVD Coated |
| Gross Weight Per Pack | 1 lb |
| Hand of Insert | Right |
| Included Angle | 80 deg |
| ISO Code | WCMT040204-E47 WPP20S |
| Sub Brand | Tiger-tec® |
| Thickness | 2.38 mm |
| Type | Positive |
| Stock Status | NONSTOCK |
| Brand | Walter (Valentine) |
| Manufacturer | Walter |
| Chipbreaker | E47 |
| Corner Radius | 0.4 mm |
| Inscribed Circle | 6.35 mm |
| Insert Style | WCMT |
| Manufacturer's Grade | WPP20S |
| Material | Carbide |
| Material Grade | K/M/P/S |
| Shape | Trigon |
| E47 Geometry - The universal one |
| Flexible universal geometry for almost all cutting depths |
| 40 to 60 deg double countersink hole |
| WPP20S - Free machining steels, long cutting times and maximum wear resistance |
| 0.08 to 0.2 mm cutting edge length tolerance |
| +/-0.13 mm thickness tolerance |
| 0.05 to 0.15 mm inscribed circle tolerance |
| 0.169 in cutting edge length |
| 15 deg rake |
| 7 deg clearance |
