Walter (Valentine)

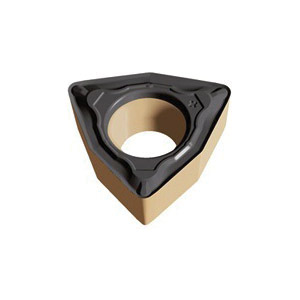

Valenite Tiger-tec® Silver 6965696 Positive Single Sided Turning Insert, WCMT2(1.5)1-PF WPP20S ANSI, Trigon, Carbide
Custom_Product_Images_Illustration
Walter (Valentine)
Valenite Tiger-tec® Silver 6965696 Positive Single Sided Turning Insert, WCMT2(1.5)1-PF WPP20S ANSI, Trigon, Carbide
SKUPDW~12067918
MFGR #WCMT2(1.5)1-PFWPP20S
Your Cost: $22.18/ea
With Tiger-tec® Silver, Walter is offering a world first in coating technology for indexable inserts. The special aluminium oxide layer with optimized microstructure reduces wear during turning, milling and drilling operations and increases toughness and temperature resistance for significantly higher cutting data.
With Tiger-tec® Silver, Walter is offering a world first in coating technology for indexable inserts. The special aluminium oxide layer with optimized microstructure reduces wear during turning, milling and drilling operations and increases toughness and temperature resistance for significantly higher cutting data.
ANSI Code WCMT2(1.5)1-PF WPP20S Catalog Number WCMT2(1.5)1-PFWPP20S Corner Radius 0.4 mm Country of Origin DE Finish CVD Coated Gross Weight Per Pack 0.0100 lb Hand of Insert Neutral Hole Diameter 2.8 mm Included Angle 80 deg ISO Code WCMT040204-PF WPP20S Relief Angle 7 deg Sub Brand Tiger-tec® Thickness 2.38 mm Type Positive Single Sided Stock Status NONSTOCK Brand Walter (Valentine) Manufacturer Walter Chipbreaker PF Inscribed Circle 6.35 mm Insert Style WCMT Manufacturer's Grade WPP20S Material Carbide Material Grade K/M/P/S Maximum Depth of Cut 1.5 mm Shape Trigon PF Geometry - Finishing with wiper technology High surface quality High feed rates 40 to 60 deg double countersink hole 3 cutting edges WPP20S - Free machining steels Long cutting times Maximum wear resistance 0.08 to 0.202 mm corner point tolerance +/-0.13 mm thickness tolerance 0.05 to 0.152 mm inscribed circle tolerance 0.05 to 0.3 mm feed/rev 4.344 mm cutting edge length
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| ANSI Code | WCMT2(1.5)1-PF WPP20S |
| Catalog Number | WCMT2(1.5)1-PFWPP20S |
| Corner Radius | 0.4 mm |
| Country of Origin | DE |
| Finish | CVD Coated |
| Gross Weight Per Pack | 0.0100 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 2.8 mm |
| Included Angle | 80 deg |
| ISO Code | WCMT040204-PF WPP20S |
| Relief Angle | 7 deg |
| Sub Brand | Tiger-tec® |
| Thickness | 2.38 mm |
| Type | Positive Single Sided |
| Stock Status | NONSTOCK |
| Brand | Walter (Valentine) |
| Manufacturer | Walter |
| Chipbreaker | PF |
| Inscribed Circle | 6.35 mm |
| Insert Style | WCMT |
| Manufacturer's Grade | WPP20S |
| Material | Carbide |
| Material Grade | K/M/P/S |
| Maximum Depth of Cut | 1.5 mm |
| Shape | Trigon |
| PF Geometry - Finishing with wiper technology |
| High surface quality |
| High feed rates |
| 40 to 60 deg double countersink hole |
| 3 cutting edges |
| WPP20S - Free machining steels |
| Long cutting times |
| Maximum wear resistance |
| 0.08 to 0.202 mm corner point tolerance |
| +/-0.13 mm thickness tolerance |
| 0.05 to 0.152 mm inscribed circle tolerance |
| 0.05 to 0.3 mm feed/rev |
| 4.344 mm cutting edge length |
