Walter (Valentine)

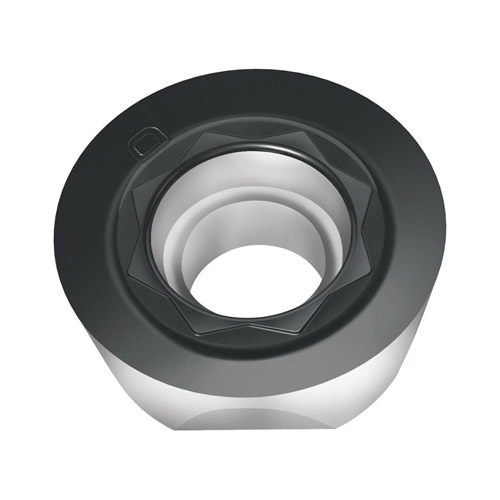

Valenite Tiger-tec® Silver 6949985 Positive Indexable Milling Insert, ROMX10T3M0-D67 WSM45X ANSI, Round, ROMX Insert
Custom_Product_Images_Illustration
Walter (Valentine)
Valenite Tiger-tec® Silver 6949985 Positive Indexable Milling Insert, ROMX10T3M0-D67 WSM45X ANSI, Round, ROMX Insert
SKUPDW~12067108
MFGR #ROMX10T3M0-D67WSM45X
Your Cost: $25.81/ea
With Tiger-tec® Silver, Walter is offering a world first in coating technology for indexable inserts. The special aluminium oxide layer with optimized microstructure reduces wear during turning, milling and drilling operations, and increases toughness and temperature resistance for significantly higher cutting data.
With Tiger-tec® Silver, Walter is offering a world first in coating technology for indexable inserts. The special aluminium oxide layer with optimized microstructure reduces wear during turning, milling and drilling operations, and increases toughness and temperature resistance for significantly higher cutting data.
ANSI Code ROMX10T3M0-D67 WSM45X Catalog Number ROMX10T3M0-D67WSM45X Corner Radius 5 mm Country of Origin DE Finish Coated Gross Weight Per Pack 1 lb Hand of Insert Neutral Hole Diameter 4.4 mm ISO Code ROMX10T3M0-D67 WSM45X Lead Angle 11 deg Sub Brand Tiger-tec® Thickness 3.97 mm Type Positive Stock Status NONSTOCK Brand Walter (Valentine) Manufacturer Walter Chipbreaker D67 Inscribed Circle 10 mm Insert Style Tiger?tec® Silver Manufacturer's Grade WSM45X Material Carbide Material Grade M/S Rake 10 deg Shape Round D67 Geometry - The powerful one High cutting edge stability For machining high alloy and high tensile steels and Ni-based alloys High level of accuracy 0.08 to 0.2 mm cutting edge tolerance 0.05 to 0.15 mm inscribed circle tolerance +/-0.13 mm thickness tolerance 4 cutting edges
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ANSI Code | ROMX10T3M0-D67 WSM45X |
| Catalog Number | ROMX10T3M0-D67WSM45X |
| Corner Radius | 5 mm |
| Country of Origin | DE |
| Finish | Coated |
| Gross Weight Per Pack | 1 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 4.4 mm |
| ISO Code | ROMX10T3M0-D67 WSM45X |
| Lead Angle | 11 deg |
| Sub Brand | Tiger-tec® |
| Thickness | 3.97 mm |
| Type | Positive |
| Stock Status | NONSTOCK |
| Brand | Walter (Valentine) |
| Manufacturer | Walter |
| Chipbreaker | D67 |
| Inscribed Circle | 10 mm |
| Insert Style | Tiger?tec® Silver |
| Manufacturer's Grade | WSM45X |
| Material | Carbide |
| Material Grade | M/S |
| Rake | 10 deg |
| Shape | Round |
| D67 Geometry - The powerful one |
| High cutting edge stability |
| For machining high alloy and high tensile steels and Ni-based alloys |
| High level of accuracy |
| 0.08 to 0.2 mm cutting edge tolerance |
| 0.05 to 0.15 mm inscribed circle tolerance |
| +/-0.13 mm thickness tolerance |
| 4 cutting edges |
