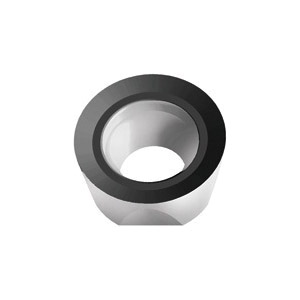

Valenite Tiger-tec® Silver 6841390 Positive Indexable Milling Insert, ROMX1204M0-D57 WSM45X ANSI, Round, ROMX Insert
Custom_Product_Images_Illustration
Valenite Tiger-tec® Silver 6841390 Positive Indexable Milling Insert, ROMX1204M0-D57 WSM45X ANSI, Round, ROMX Insert
SKUPDW~12067114
MFGR #ROMX1204M0-D57WSM45X
Your Cost: $30.91/ea
With Tiger-tec® Silver, Walter is offering a world first in coating technology for indexable inserts. The special aluminium oxide layer with optimized microstructure reduces wear during turning, milling and drilling operations, and increases toughness and temperature resistance for significantly higher cutting data.
With Tiger-tec® Silver, Walter is offering a world first in coating technology for indexable inserts. The special aluminium oxide layer with optimized microstructure reduces wear during turning, milling and drilling operations, and increases toughness and temperature resistance for significantly higher cutting data.
ANSI Code ROMX1204M0-D57 WSM45X Catalog Number ROMX1204M0-D57WSM45X Corner Radius 6 mm Country of Origin DE Finish CVD Coated Gross Weight Per Pack 0.0100 lb Hand of Insert Neutral Hole Diameter 4.4 mm ISO Code ROMX1204M0-D57 WSM45X Lead Angle 11 deg Sub Brand Tiger-tec® Thickness 4.76 mm Type Positive Stock Status NONSTOCK Brand Walter (Valentine) Manufacturer Walter Chipbreaker D57 Inscribed Circle 12 mm Insert Style Tiger?tec® Silver Manufacturer's Grade WSM45X Material Carbide Material Grade M/S Rake 10 deg Shape Round D57 Geometry - The stable one For average machining conditions Can be used universally One wave on the flank face 0.08 to 0.2 mm cutting edge tolerance 0.05 to 0.15 mm inscribed circle tolerance +/-0.13 mm thickness tolerance 4 cutting edges
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ANSI Code | ROMX1204M0-D57 WSM45X |
| Catalog Number | ROMX1204M0-D57WSM45X |
| Corner Radius | 6 mm |
| Country of Origin | DE |
| Finish | CVD Coated |
| Gross Weight Per Pack | 0.0100 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 4.4 mm |
| ISO Code | ROMX1204M0-D57 WSM45X |
| Lead Angle | 11 deg |
| Sub Brand | Tiger-tec® |
| Thickness | 4.76 mm |
| Type | Positive |
| Stock Status | NONSTOCK |
| Brand | Walter (Valentine) |
| Manufacturer | Walter |
| Chipbreaker | D57 |
| Inscribed Circle | 12 mm |
| Insert Style | Tiger?tec® Silver |
| Manufacturer's Grade | WSM45X |
| Material | Carbide |
| Material Grade | M/S |
| Rake | 10 deg |
| Shape | Round |
| D57 Geometry - The stable one |
| For average machining conditions |
| Can be used universally |
| One wave on the flank face |
| 0.08 to 0.2 mm cutting edge tolerance |
| 0.05 to 0.15 mm inscribed circle tolerance |
| +/-0.13 mm thickness tolerance |
| 4 cutting edges |
