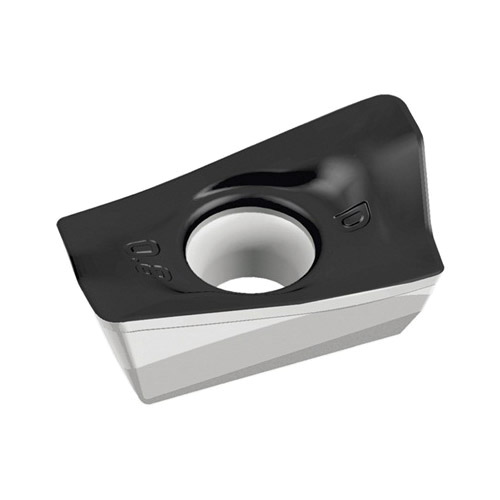

Valenite Tiger-tec® Silver 5886293 Positive Single Sided Indexable Milling Insert, ADMT160608R-D56 WKP35S ANSI, Rhombic
Custom_Product_Images_Illustration
Valenite Tiger-tec® Silver 5886293 Positive Single Sided Indexable Milling Insert, ADMT160608R-D56 WKP35S ANSI, Rhombic
SKU684981
MFGR #ADMT160608R-D56 WKP35S
Your Cost: $28.77/ea
List: With Tiger-tec® Silver, Walter is offering a world first in coating technology for indexable inserts. The special aluminium oxide layer with optimized microstructure reduces wear during turning, milling and drilling operations, and increases toughness and temperature resistance for significantly higher cutting data.
With Tiger-tec® Silver, Walter is offering a world first in coating technology for indexable inserts. The special aluminium oxide layer with optimized microstructure reduces wear during turning, milling and drilling operations, and increases toughness and temperature resistance for significantly higher cutting data.
ANSI Code ADMT160608R-D56 WKP35S Catalog Number ADMT160608R-D56 WKP35S Corner Radius 0.8 mm Country of Origin DE Finish CVD Coated Gross Weight Per Pack 0.0200 lb Hand of Insert Right Hole Diameter 4.4 mm ISO Code ADMT160608R-D56 WKP35S Lead Angle 15 deg/20 deg Length 17.5 mm Sub Brand Tiger-tec® Thickness 6.15 mm Type Positive Single Sided Width 10.8 mm Stock Status NONSTOCK Brand Walter (Valentine) Manufacturer Walter Chipbreaker D56 Inscribed Circle 10.8 mm Insert Style Tiger?tec® Silver Manufacturer's Grade WKP35S Material Carbide Material Grade K/P Rake 10 deg Shape Rhombic D56 Geometry - The stable one For unfavorable machining conditions Maximum cutting edge stability High feed rates 0.08 to 0.2 mm cutting edge tolerance 0.05 to 0.15 mm inscribed circle tolerance +/-0.13 mm thickness tolerance 1.6 mm width face chamfer 2 cutting edges 40 to 60 deg double countersink hole
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| ANSI Code | ADMT160608R-D56 WKP35S |
| Catalog Number | ADMT160608R-D56 WKP35S |
| Corner Radius | 0.8 mm |
| Country of Origin | DE |
| Finish | CVD Coated |
| Gross Weight Per Pack | 0.0200 lb |
| Hand of Insert | Right |
| Hole Diameter | 4.4 mm |
| ISO Code | ADMT160608R-D56 WKP35S |
| Lead Angle | 15 deg/20 deg |
| Length | 17.5 mm |
| Sub Brand | Tiger-tec® |
| Thickness | 6.15 mm |
| Type | Positive Single Sided |
| Width | 10.8 mm |
| Stock Status | NONSTOCK |
| Brand | Walter (Valentine) |
| Manufacturer | Walter |
| Chipbreaker | D56 |
| Inscribed Circle | 10.8 mm |
| Insert Style | Tiger?tec® Silver |
| Manufacturer's Grade | WKP35S |
| Material | Carbide |
| Material Grade | K/P |
| Rake | 10 deg |
| Shape | Rhombic |
| D56 Geometry - The stable one |
| For unfavorable machining conditions |
| Maximum cutting edge stability |
| High feed rates |
| 0.08 to 0.2 mm cutting edge tolerance |
| 0.05 to 0.15 mm inscribed circle tolerance |
| +/-0.13 mm thickness tolerance |
| 1.6 mm width face chamfer |
| 2 cutting edges |
| 40 to 60 deg double countersink hole |
