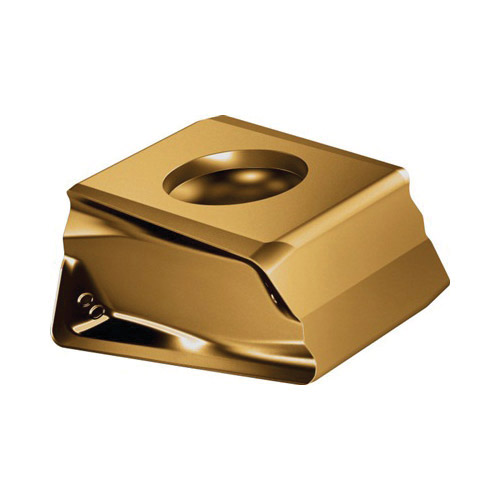

Valenite Tiger-tec® Gold 7170505 Double Sided Tangential Indexable Milling Insert, LNHU160720R-L55T WKP35G ANSI
LNHU Milling Inserts
PDW~12584298
MFG #: LNHU160720R-L55TWKP35G
Walter (Valentine)
44.00000
/ ea
Tiger-tec® Gold is a new Walter technology platform for unique indexable insert coatings. These are produced using the innovative ultra low pressure method (ULP-CVD). The special titanium aluminium nitride layer makes them highly resistant to abrasion, hairline cracks, oxidation and plastic deformation, as well as ensuring maximum tool life and process reliability.
- Features
| Optimized wear characteristics for a significantly longer tool life |
| Optimum cutting data due to a reduction in visible wear rate |
| Maximum process reliability thanks to the tough cutting edge |
| Gold colored top layer provides optimum wear detection |
| Excellent combination of wear resistance and toughness for milling |
| For moderate to high cutting speeds, dry milling or use with coolant, roughing steel and cast iron workpieces |
| +/-0.013 mm cutting edge tolerance |
| +/-0.013 mm inscribed circle tolerance |
| +/-0.025 mm thickness tolerance |
| 1.2 mm width face chamfer |
| 4 cutting edges |
| 40 to 60 deg double countersink hole |
