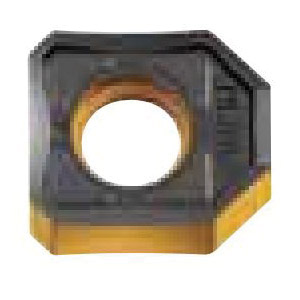

Valenite Tiger-tec® 5836431 Indexable Milling Insert, XNGX1205ANN-F67 WHH15 ANSI, XNGX Insert, Carbide, WHH15
XNGX Milling Inserts
PDW~9960776
MFG #: XNGX1205ANN-F67WHH15
Walter (Valentine)
39.50000
/ ea
VALENITE Tiger-tec® Indexable Milling Insert, XNGX Insert, 12.7 mm Inscribed Circle, 6.09 mm Thickness, 12.7 mm Length, F67 Chipbreaker, 1.2 mm Corner Radius, 16 deg Rake, 0 deg Lead Angle, 6.1 mm Hole Dia, Manufacturer's Grade: WHH15, ANSI Code: XNGX1205ANN-F67 WHH15, ISO Code: XNGX1205ANN-F67 WHH15, Neutral Hand, Carbide, PVD Coated, Material Grade: H
- Features
F67 Geometry - The easy cutting one |
For good machining conditions |
Low cutting force |
Medium feed rates |
+/-0.025 mm cutting edge tolerance |
+/-0.025 mm inscribed circle tolerance |
+/-0.13 mm thickness tolerance |
4.7 mm width face chamfer |
2 cutting edges |
45 deg approach |
