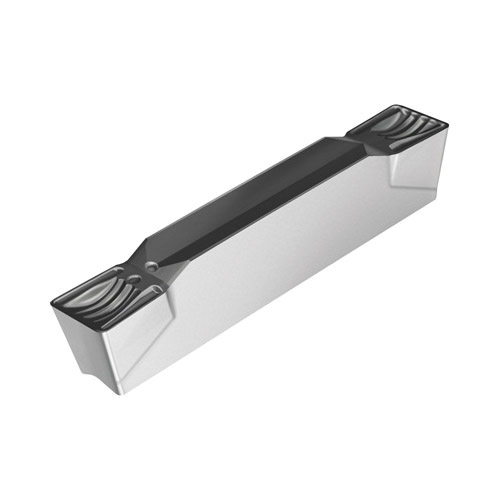

Valenite 6641657 Double Sided Universal Grooving Insert, GX30-5E800N08-UF4 WSM33S ANSI, E, GX Insert, 8 mm W Cutting
Custom_Product_Images_Illustration
Valenite 6641657 Double Sided Universal Grooving Insert, GX30-5E800N08-UF4 WSM33S ANSI, E, GX Insert, 8 mm W Cutting
SKUPDW~12066225
MFGR #GX30-5E800N08-UF4WSM33S
Your Cost: $73.25/ea
VALENITE Grooving Insert, Double Sided Universal, GX Insert, E, 8 mm Cutting Width, 4 mm Maximum Depth of Cut, 10 deg Lead Angle, UF4 Chipbreaker, 0.8 mm Corner Radius, 30 mm Length, Manufacturer's Grade: WSM33S, ANSI Code: GX30-5E800N08-UF4 WSM33S, ISO Code: GX30-5E800N08-UF4 WSM33S, Neutral Hand, Carbide, PVD Coated, Material Grade: K/M/P/S
VALENITE Grooving Insert, Double Sided Universal, GX Insert, E, 8 mm Cutting Width, 4 mm Maximum Depth of Cut, 10 deg Lead Angle, UF4 Chipbreaker, 0.8 mm Corner Radius, 30 mm Length, Manufacturer's Grade: WSM33S, ANSI Code: GX30-5E800N08-UF4 WSM33S, ISO Code: GX30-5E800N08-UF4 WSM33S, Neutral Hand, Carbide, PVD Coated, Material Grade: K/M/P/S
ANSI Code GX30-5E800N08-UF4 WSM33S Catalog Number GX30-5E800N08-UF4WSM33S Country of Origin DE Finish PVD-TiAlN+Al2O3 (Al) Coated Gross Weight Per Pack 0.0200 lb ISO Code GX30-5E800N08-UF4 WSM33S Length 30 mm Material Grade M, P, S Series Tiger?tec® Silver Type Double Edged Universal Stock Status NONSTOCK Brand Walter (Valentine) Manufacturer Walter Chipbreaker UF4 Corner Radius 0.8 mm Cutting Direction Neutral Cutting Width 8.0000 mm Insert Style GX30 Manufacturer's Grade WSM33S Material Carbide Maximum Depth of Cut 4 mm Rake Positive Good chip control|Average feed range|Positive cut Good chip control Medium feed rates Low cutting force 26 mm maximum depth of cut +/-0.05 mm cutting width tolerance +/-0.15 mm cutting length tolerance 2 cutting edges 0.18 to 0.55 mm feed/rev
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| ANSI Code | GX30-5E800N08-UF4 WSM33S |
| Catalog Number | GX30-5E800N08-UF4WSM33S |
| Country of Origin | DE |
| Finish | PVD-TiAlN+Al2O3 (Al) Coated |
| Gross Weight Per Pack | 0.0200 lb |
| ISO Code | GX30-5E800N08-UF4 WSM33S |
| Length | 30 mm |
| Material Grade | M, P, S |
| Series | Tiger?tec® Silver |
| Type | Double Edged Universal |
| Stock Status | NONSTOCK |
| Brand | Walter (Valentine) |
| Manufacturer | Walter |
| Chipbreaker | UF4 |
| Corner Radius | 0.8 mm |
| Cutting Direction | Neutral |
| Cutting Width | 8.0000 mm |
| Insert Style | GX30 |
| Manufacturer's Grade | WSM33S |
| Material | Carbide |
| Maximum Depth of Cut | 4 mm |
| Rake | Positive |
| Good chip control|Average feed range|Positive cut |
| Good chip control |
| Medium feed rates |
| Low cutting force |
| 26 mm maximum depth of cut |
| +/-0.05 mm cutting width tolerance |
| +/-0.15 mm cutting length tolerance |
| 2 cutting edges |
| 0.18 to 0.55 mm feed/rev |
