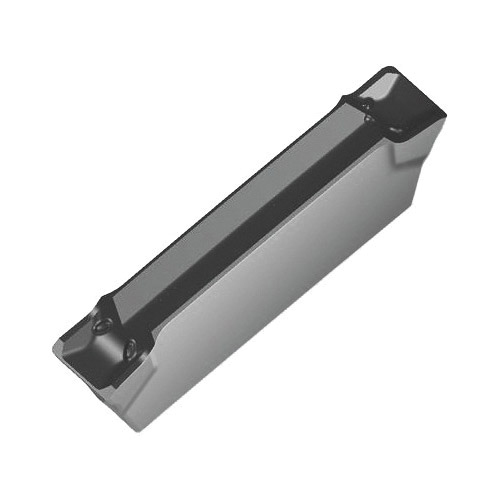

Valenite 6580716 Cut-Off Double Sided Grooving Insert, GX24-1E250N02-CE4 WSM33S ANSI, E, GX Insert, 2.5 mm W Cutting
Custom_Product_Images_Illustration
Valenite 6580716 Cut-Off Double Sided Grooving Insert, GX24-1E250N02-CE4 WSM33S ANSI, E, GX Insert, 2.5 mm W Cutting
SKUPDW~12066142
MFGR #GX24-1E250N02-CE4WSM33S
VALENITE Grooving Insert, Cut-Off Double Sided, GX Insert, E, 2.5 mm Cutting Width, 10 deg Lead Angle, CE4 Chipbreaker, 0.2 mm Corner Radius, 24 mm Length, Manufacturer's Grade: WSM33S, ANSI Code: GX24-1E250N02-CE4 WSM33S, ISO Code: GX24-1E250N02-CE4 WSM33S, Neutral Hand, Carbide, PVD Coated, Material Grade: H/K/M/N/P/S
VALENITE Grooving Insert, Cut-Off Double Sided, GX Insert, E, 2.5 mm Cutting Width, 10 deg Lead Angle, CE4 Chipbreaker, 0.2 mm Corner Radius, 24 mm Length, Manufacturer's Grade: WSM33S, ANSI Code: GX24-1E250N02-CE4 WSM33S, ISO Code: GX24-1E250N02-CE4 WSM33S, Neutral Hand, Carbide, PVD Coated, Material Grade: H/K/M/N/P/S
ANSI Code GX24-1E250N02-CE4 WSM33S Catalog Number GX24-1E250N02-CE4WSM33S Country of Origin DE Finish PVD-TiAlN+Al2O3 (Al) Coated Gross Weight Per Pack 0.0100 lb ISO Code GX24-1E250N02-CE4 WSM33S Length 24 mm Material Grade M, P, S Series Tiger?tec® Silver Type Double Edged Cut-Off Stock Status NONSTOCK Brand Walter (Valentine) Manufacturer Walter Chipbreaker CE4 Corner Radius 0.2 mm Cutting Direction Neutral Cutting Width 2.0000 mm Insert Style GX24 Manufacturer's Grade WSM33S Material Carbide Maximum Depth of Cut 23.7 mm Rake Positive Moderate to high feeds|Good chip constriction|Stable cutting edge Moderate to high feed rates Excellent chip constriction Stable cutting edge +/-0.05 mm cutting width tolerance +/-0.15 mm cutting length tolerance 2 cutting edges 0.07 to 0.18 mm feed/rev
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| ANSI Code | GX24-1E250N02-CE4 WSM33S |
| Catalog Number | GX24-1E250N02-CE4WSM33S |
| Country of Origin | DE |
| Finish | PVD-TiAlN+Al2O3 (Al) Coated |
| Gross Weight Per Pack | 0.0100 lb |
| ISO Code | GX24-1E250N02-CE4 WSM33S |
| Length | 24 mm |
| Material Grade | M, P, S |
| Series | Tiger?tec® Silver |
| Type | Double Edged Cut-Off |
| Stock Status | NONSTOCK |
| Brand | Walter (Valentine) |
| Manufacturer | Walter |
| Chipbreaker | CE4 |
| Corner Radius | 0.2 mm |
| Cutting Direction | Neutral |
| Cutting Width | 2.0000 mm |
| Insert Style | GX24 |
| Manufacturer's Grade | WSM33S |
| Material | Carbide |
| Maximum Depth of Cut | 23.7 mm |
| Rake | Positive |
| Moderate to high feeds|Good chip constriction|Stable cutting edge |
| Moderate to high feed rates |
| Excellent chip constriction |
| Stable cutting edge |
| +/-0.05 mm cutting width tolerance |
| +/-0.15 mm cutting length tolerance |
| 2 cutting edges |
| 0.07 to 0.18 mm feed/rev |
