Walter (Valentine)

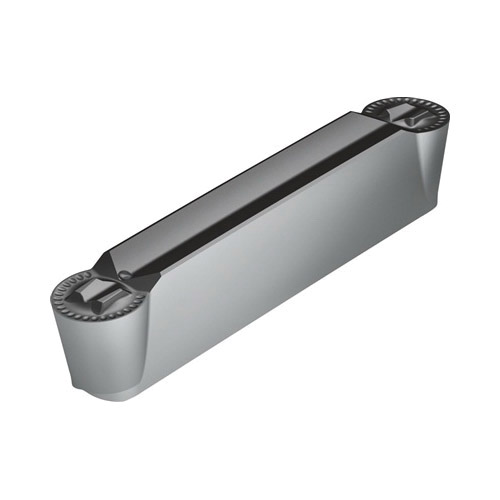

Valenite 6570771 Double Sided Full Radius Grooving Insert, GX16-2E300N15-RD4 WSM33S ANSI, E, GX Insert, 3 mm W Cutting
Custom_Product_Images_Illustration
Walter (Valentine)
Valenite 6570771 Double Sided Full Radius Grooving Insert, GX16-2E300N15-RD4 WSM33S ANSI, E, GX Insert, 3 mm W Cutting
SKUPDW~12066112
MFGR #GX16-2E300N15-RD4WSM33S
Your Cost: $44.89/ea
VALENITE Grooving Insert, Double Sided Full Radius, GX Insert, E, 3 mm Cutting Width, 1.5 mm Maximum Depth of Cut, 21 deg Lead Angle, RD4 Chipbreaker, 1.5 mm Corner Radius, 16 mm Length, Manufacturer's Grade: WSM33S, ANSI Code: GX16-2E300N15-RD4 WSM33S, ISO Code: GX16-2E300N15-RD4 WSM33S, Neutral Hand, Carbide, PVD Coated, Material Grade: K/M/P/S
VALENITE Grooving Insert, Double Sided Full Radius, GX Insert, E, 3 mm Cutting Width, 1.5 mm Maximum Depth of Cut, 21 deg Lead Angle, RD4 Chipbreaker, 1.5 mm Corner Radius, 16 mm Length, Manufacturer's Grade: WSM33S, ANSI Code: GX16-2E300N15-RD4 WSM33S, ISO Code: GX16-2E300N15-RD4 WSM33S, Neutral Hand, Carbide, PVD Coated, Material Grade: K/M/P/S
ANSI Code GX16-2E300N15-RD4 WSM33S Brand Walter (Valentine) Catalog Number GX16-2E300N15-RD4WSM33S Chipbreaker RD4 Country of Origin DE Cutting Direction Neutral Finish PVD-TiAlN+Al2O3 (Al) Coated Gross Weight Per Pack 1 lb Insert Style GX16 ISO Code GX16-2E300N15-RD4 WSM33S Manufacturer Walter Manufacturer's Grade WSM33S Material Carbide Material Grade M, P, S Maximum Depth of Cut 1.5 mm Rake Positive Series Tiger?tec® Silver Stock Status NONSTOCK Type Double Edged Full Radius Outstanding chip control during grooving|For moderate to high feeds|Circumference sintered Outstanding chip control during grooving For moderate to high feeds 12 mm maximum depth of cut +/-0.05 mm cutting width tolerance +/-0.15 mm cutting length tolerance 2 cutting edges 0.1 to 0.35 mm feed/rev
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| ANSI Code | GX16-2E300N15-RD4 WSM33S |
| Brand | Walter (Valentine) |
| Catalog Number | GX16-2E300N15-RD4WSM33S |
| Chipbreaker | RD4 |
| Country of Origin | DE |
| Cutting Direction | Neutral |
| Finish | PVD-TiAlN+Al2O3 (Al) Coated |
| Gross Weight Per Pack | 1 lb |
| Insert Style | GX16 |
| ISO Code | GX16-2E300N15-RD4 WSM33S |
| Manufacturer | Walter |
| Manufacturer's Grade | WSM33S |
| Material | Carbide |
| Material Grade | M, P, S |
| Maximum Depth of Cut | 1.5 mm |
| Rake | Positive |
| Series | Tiger?tec® Silver |
| Stock Status | NONSTOCK |
| Type | Double Edged Full Radius |
| Outstanding chip control during grooving|For moderate to high feeds|Circumference sintered |
| Outstanding chip control during grooving |
| For moderate to high feeds |
| 12 mm maximum depth of cut |
| +/-0.05 mm cutting width tolerance |
| +/-0.15 mm cutting length tolerance |
| 2 cutting edges |
| 0.1 to 0.35 mm feed/rev |
