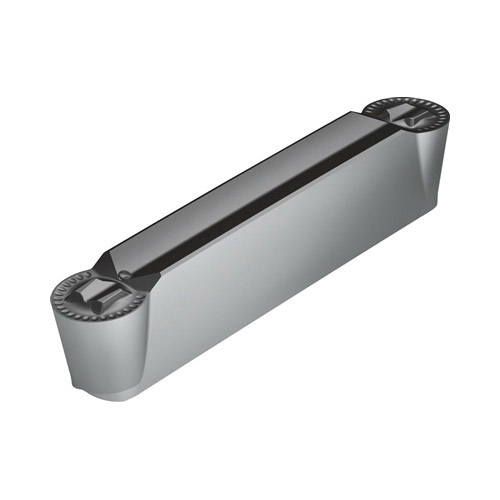

Valenite 6529729 Double Sided Full Radius Grooving Insert, GX30-5E800N40-RD4 WKP23S ANSI, E, GX Insert, 8 mm W Cutting
GX Grooving Inserts
PDW~12066232
MFG #: GX30-5E800N40-RD4WKP23S
Walter (Valentine)
43.90000
/ ea
VALENITE Grooving Insert, Double Sided Full Radius, GX Insert, E, 8 mm Cutting Width, 4.5 mm Maximum Depth of Cut, 10 deg Lead Angle, RD4 Chipbreaker, 4 mm Corner Radius, 30 mm Length, Manufacturer's Grade: WKP23S, ANSI Code: GX30-5E800N40-RD4 WKP23S, ISO Code: GX30-5E800N40-RD4 WKP23S, Neutral Hand, Carbide, CVD Coated, Material Grade: K/M/P/S
- Features
| Outstanding chip control during grooving|For moderate to high feeds|Circumference sintered |
| Outstanding chip control during grooving |
| For moderate to high feeds |
| 26 mm maximum depth of cut |
| +/-0.05 mm cutting width tolerance |
| +/-0.15 mm cutting length tolerance |
| 2 cutting edges |
| 0.2 to 0.8 mm feed/rev |
