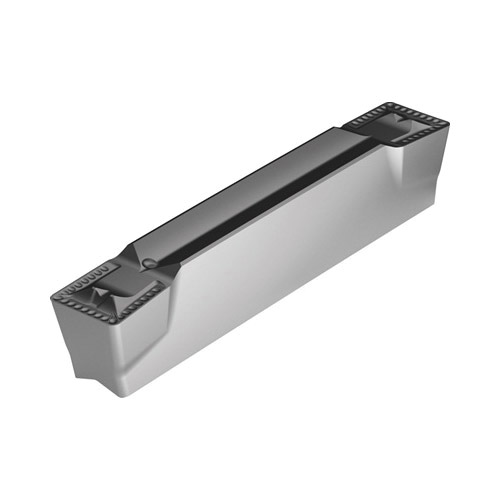

Valenite 6193848 Double Sided Universal Grooving Insert, GX24-4E600N05-UD4 WSM33S ANSI, E, GX Insert, 6 mm W Cutting
GX Grooving Inserts
1185940
MFG #: GX24-4E600N05-UD4WSM33S
Walter (Valentine)
37.78000
/ ea
VALENITE Grooving Insert, Double Sided Universal, GX Insert, E, 6 mm Cutting Width, 3.5 mm Maximum Depth of Cut, 10 deg Lead Angle, UD4 Chipbreaker, 0.5 mm Corner Radius, 24 mm Length, Manufacturer's Grade: WSM33S, ANSI Code: GX24-4E600N05-UD4 WSM33S, ISO Code: GX24-4E600N05-UD4 WSM33S, Neutral Hand, Carbide, PVD Coated, Material Grade: K/M/P/S
- Features
| Large chip breaking area|Optimum chip breaking when machining forged parts|Stable cutting edge|For moderate to high feeds |
| Optimum chip breaking when machining forged parts |
| Stable cutting edge |
| For moderate to high feeds |
| 21 mm maximum depth of cut |
| +/-0.05 mm cutting width tolerance |
| +/-0.15 mm cutting length tolerance |
| 2 cutting edges |
| 0.14 to 0.4 mm feed/rev |
